Description
We also offer various kind of other small hydro turbine generator
Axial flow tubine generator
Francis Turbine Generator
Pelton Turbine Generator
Inclined-jet water turbine generator
Cross flow water turbine generator
Tubular water turbine generator
Impulse type water generator
Permanent Magnet Generator
Head: 35m
Flow: 63 l/s
---------------------------

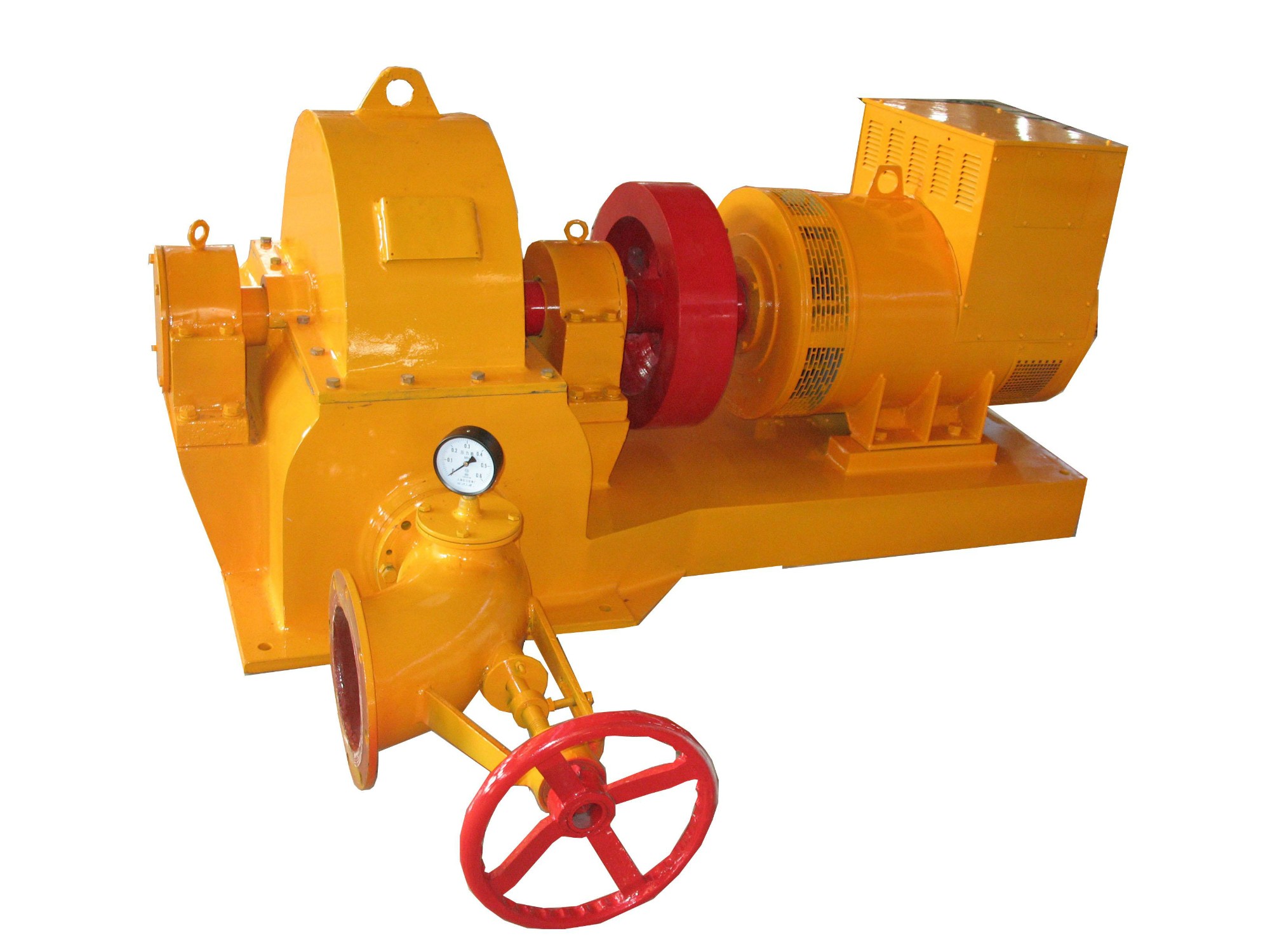

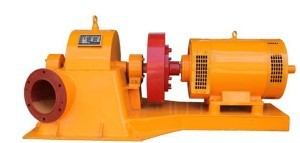

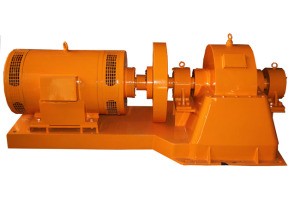

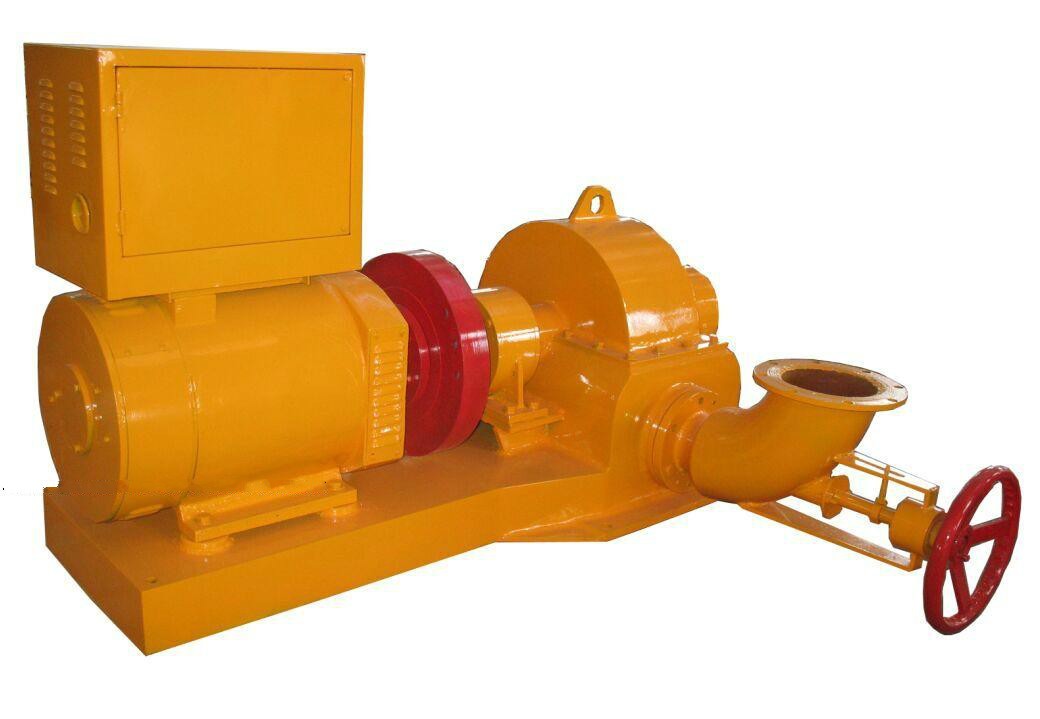

Turbine Model: XJ30-12SCTF4-Z (Dual Nozzles Turgo Turbine)
Rotational Speed: 1500r/min (Directly Drive)
Generator Model: SF12/4
Output: 12KW (Rear Earth Permanent Magnet Synchronous Generator)
Voltage: 230VAC stand-alone /3 Phase
FQCY: 50Hz
INCLINE JET TURBINE
Axial flow tubine generator
Francis Turbine Generator
Pelton Turbine Generator
Inclined-jet water turbine generator
Cross flow water turbine generator
Tubular water turbine generator
Impulse type water generator
Permanent Magnet Generator
Head: 35m
Flow: 63 l/s
---------------------------
Turbine Model: XJ30-12SCTF4-Z (Dual Nozzles Turgo Turbine)
Rotational Speed: 1500r/min (Directly Drive)
Generator Model: SF12/4
Output: 12KW (Rear Earth Permanent Magnet Synchronous Generator)
Voltage: 230VAC stand-alone /3 Phase
FQCY: 50Hz
INCLINE JET TURBINE
|
Power (kW) |
Water head (m) |
Flow Rate (m3/s) |
Speed (r/min) |
Diameter (mm) |
| 10KW | 30-40 | 0.0482-0.05 | 1000 | 200mm |
| 15KW | 40 | 0.05 | 1000 | 200mm |
| 20KW | 40-50 | 0.089 | 1000 | 250mm |
| 30KW | 45 | 0.101 | 1000 | 250mm |
| 40KW | 55 | 0.12 | 1000 | 250-300mm |
| 50KW | 60 | 0.127 | 1000 | 300 |
