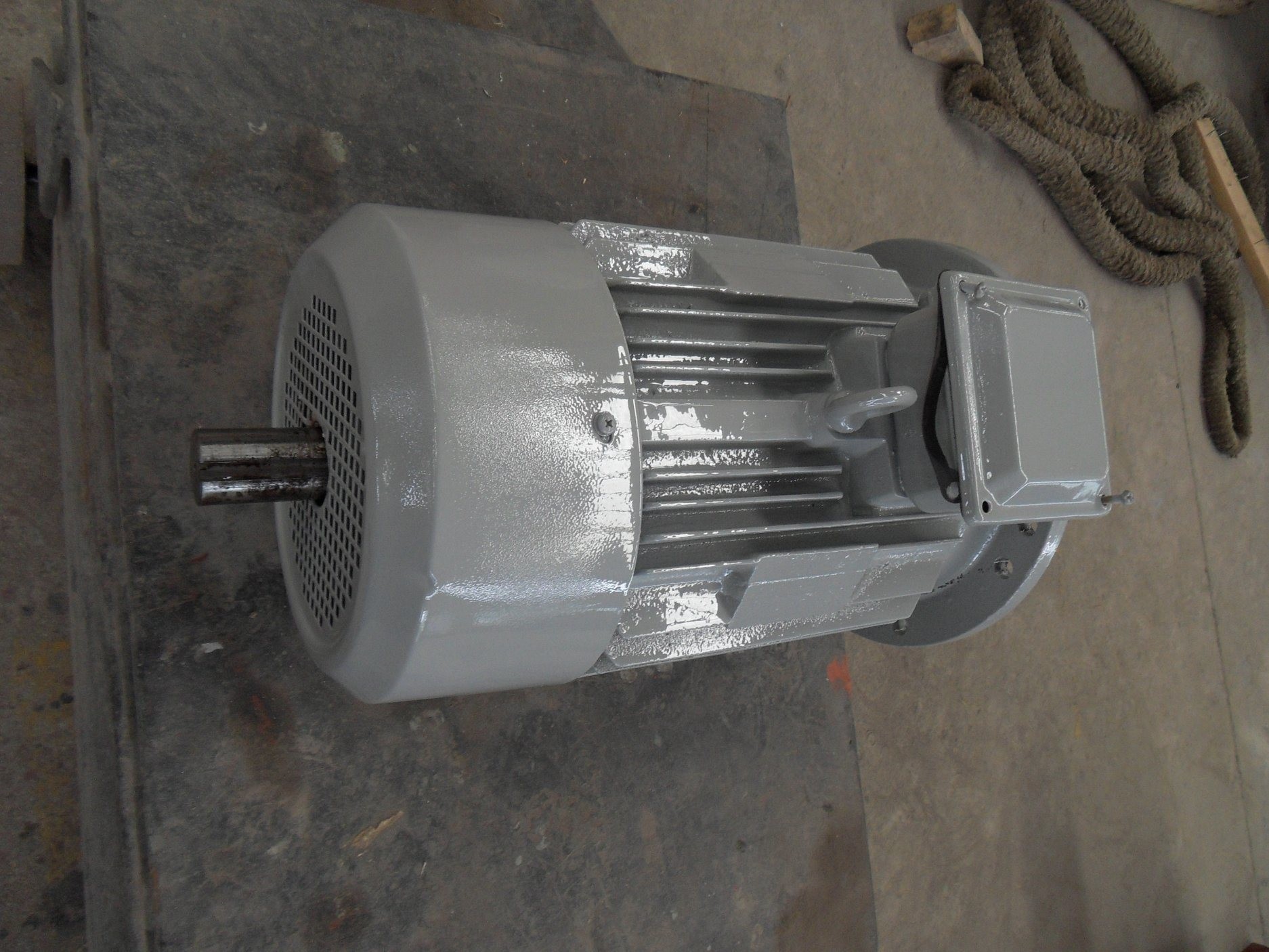

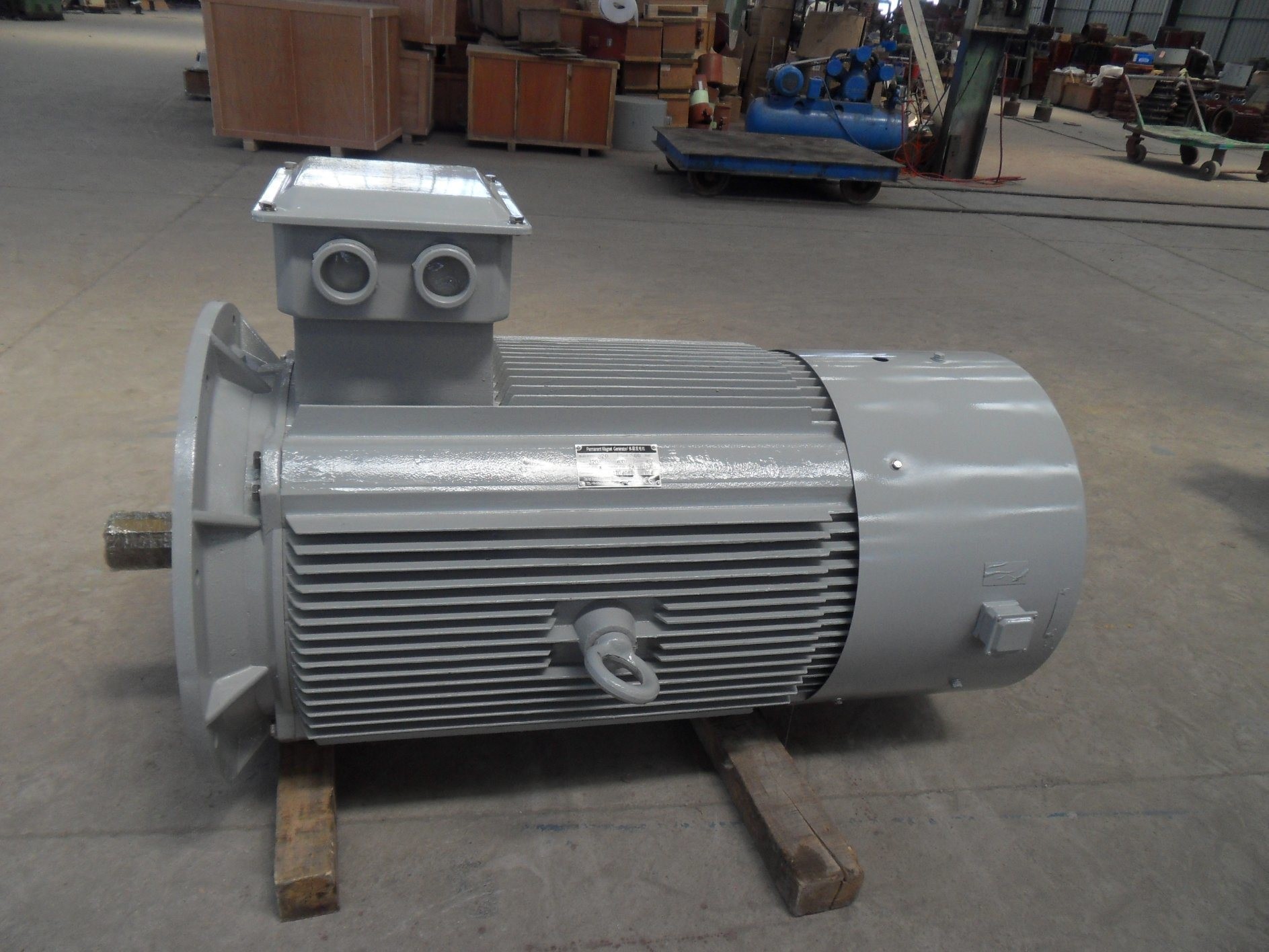

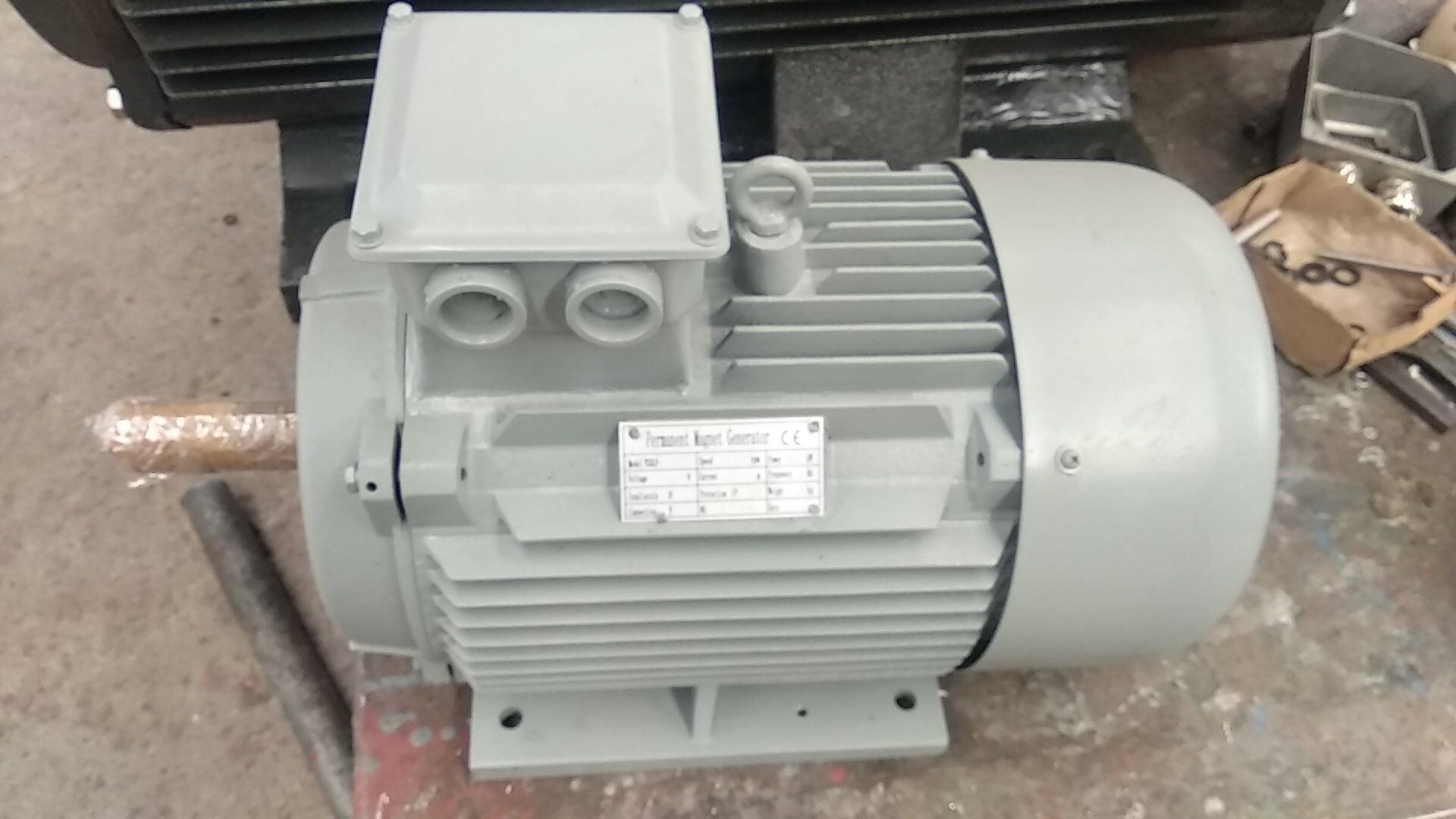

20kw-75kw High Speed Brushless Permanent Magnet Motor

high speed generator motor  , turbine generator motor  , industrial compressors motor  , oil and gas compressors motor  , HVAC compressors motor  , laser and fuel cell cooling systems Rail transit  , papermaking motor  , sewage treatment motor  , pharmaceuticals motor  , evaporation and crystallization motor  , waste heat power generation  , new energy vehicles motor  , turbine steam turbines generator  , gas turbines generation  , ORC generator system
Inquiry Send Email

Description

The motor speed, voltage, power can be customized according to the requirements, but its better to be no more than 15, 000 speed. The motor can be made as wind cooling or water cooling, AC or DC. The front cover of the motor could have flange front edge, the size and the output shaft can also be customized.
power voltage speed Rated torque Peak torque Peak power current Current peak Efficiency weight Chassis size
20kw 380V 10000 19.6Nm 35Nm 30KW 32.5A 50A 94.7% 34kg Y100-180
25 kw 380V 10000 23.4Nm 43Nm 40KW 40.5A 66A 94.9% 36kg Y100-210
30 kw 380V 10000 28.1Nm 50Nm 50KW 48.5A 80A 95.1% 38kg Y100-250
45 kw 380V 40000 10.7Nm 16Nm 70KW 72.7A 120A 95.0% 32kg Y100-120
55 kw 380V 40000 13.1Nm 20Nm 85KW 88.9A 150A 95.0% 34kg Y100-140
55kw 380V 20000 26.1Nm 50Nm 100KW 89A 160A 95.7% 52 Y100-210
75kw 380V 40000 17.9Nm 30Nm 120KW 120A 200A 95.7% 48kg Y100-190
