Description
INTRODUCTION:

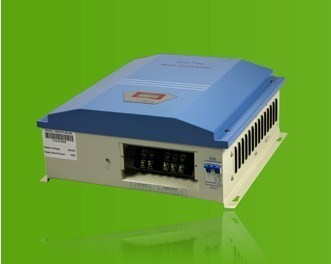

The grid-tied wind controller is specially designed for high-end wind power system. The controller adopts PWM control mode. Generally, the grid-tied wind controller directly transmits the electricity energy which is generated by wind turbine to grid-tied inverter. With the grid-tied inverter conversion and control function, it gives out the stable alternating current and transmits to utility grid.
PERFORMANCE FEATURES:
Superior military-grade components to ensure the product stability.
Perfect protection function, thus the system has higher reliability.
Check and set all operation parameters as requirement from LCD display.
PWM stepless unload mode, when wind turbine voltage is higher than the preset voltage, the on-grid controller will dump load the excess voltage.
QUALIFICATION:
European CE certification.
Utility model anti-strong-wind resistance, stepless dumpload wind power controller.
HELPFUL HINTS:
Customers, who will order the grid-tied wind controller, need to provide the following information:
Rated wind turbine output power
Rated wind turbine output voltage
The DC input voltage range of grid-tied inverter
Full power DC input voltage range of grid-tied inverter
The grid-tied wind controller is specially designed for high-end wind power system. The controller adopts PWM control mode. Generally, the grid-tied wind controller directly transmits the electricity energy which is generated by wind turbine to grid-tied inverter. With the grid-tied inverter conversion and control function, it gives out the stable alternating current and transmits to utility grid.
PERFORMANCE FEATURES:
Superior military-grade components to ensure the product stability.
Perfect protection function, thus the system has higher reliability.
Check and set all operation parameters as requirement from LCD display.
PWM stepless unload mode, when wind turbine voltage is higher than the preset voltage, the on-grid controller will dump load the excess voltage.
QUALIFICATION:
European CE certification.
Utility model anti-strong-wind resistance, stepless dumpload wind power controller.
HELPFUL HINTS:
Customers, who will order the grid-tied wind controller, need to provide the following information:
Rated wind turbine output power
Rated wind turbine output voltage
The DC input voltage range of grid-tied inverter
Full power DC input voltage range of grid-tied inverter
| Product Model | WW G30 - 48 - N00 | WW G30 - 96-N00 | WW G30 - 120-N00 | WW G30 - 220-N00 |
| Rated Wind Turbine Input Power | 3kW | 3kW | 3kW | 3kW |
| Maximum Wind Turbine Input Power | 4.5kW | 4.5kW | 4.5kW | 4.5kW |
| Rated Wind Turbine Voltage | 48V | 96V | 120V | 220V |
| Dumpload Start Voltage | 56V | 112V | 140V | 257V |
| DC Output Voltage Range | 0~60V(Adjustable) | 0~120V(Adjustable) | 0~150V(Adjustable) | 0~275V(Adjustable) |
| Display Mode | LCD | |||
| Quiescent Current | ≤ 20mA | |||
| Ambient Temperature & Humidity | -20~+55/35~85%RH(Without Condensation) | |||
|
Product Dimension (L x W x H) |
523× 423× 170mm | |||
| Net Weight | 16kg | |||
| In order to serve our customers better. Our company can adjust parameters configuration according to customer' s requirement. | ||||
