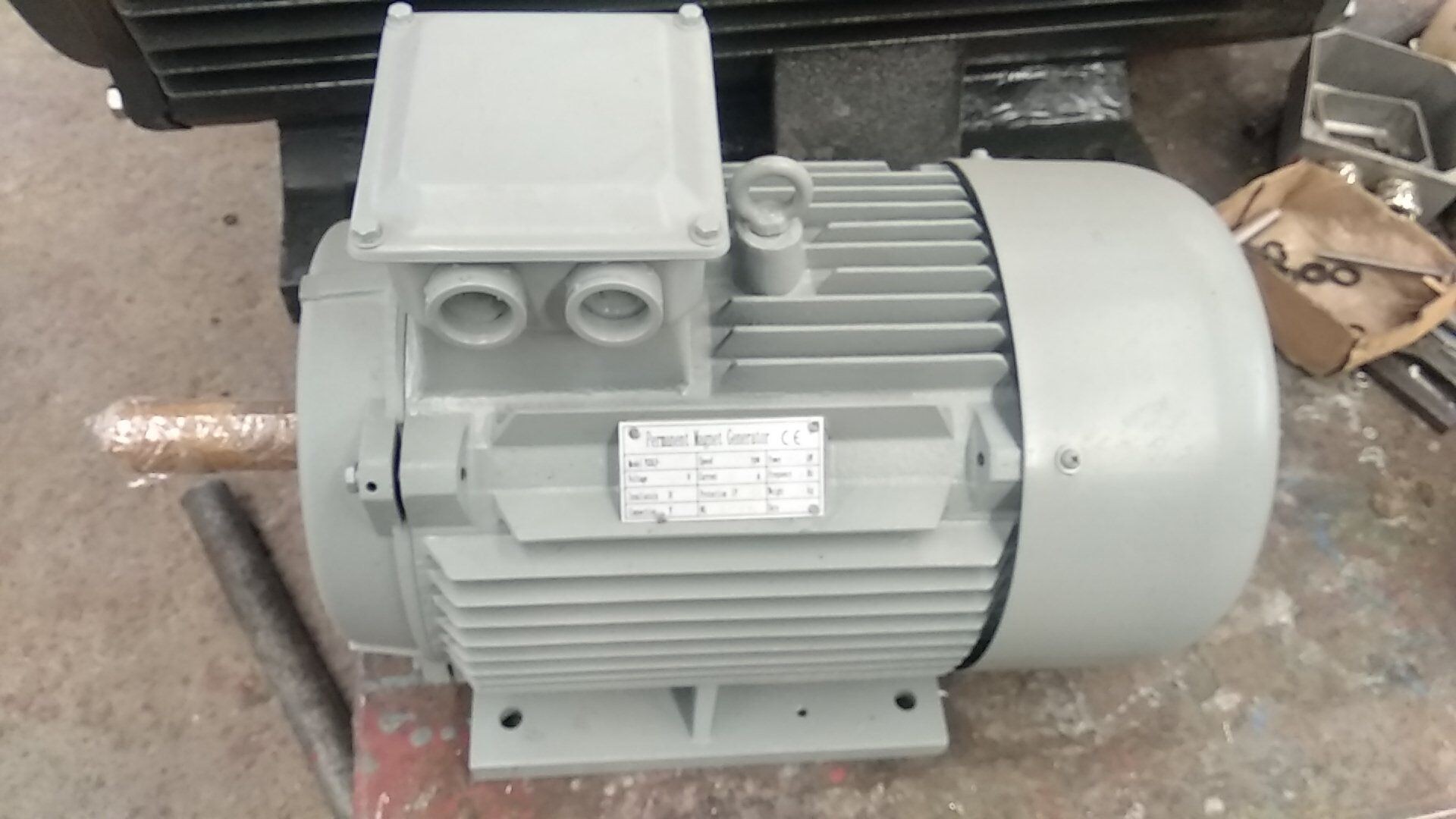

200kw 10000rpm High Speed Permanent Magnet Motor Generator

high speed generator motor  , turbine generator motor  , industrial compressors motor  , oil and gas compressors motor  , HVAC compressors motor  , laser and fuel cell cooling systems Rail transit  , papermaking motor  , sewage treatment motor  , pharmaceuticals motor  , evaporation and crystallization motor  , waste heat power generation  , new energy vehicles motor  , turbine steam turbines generator  , gas turbines generation  , ORC generator system
Inquiry Send Email

Description

The motor speed, voltage, power can be customized according to the requirements, but its better to be no more than 15, 000 speed. The highest speed we can do is 24000rpm, The motor can be made as wind cooling or water cooling, AC or DC. The front cover of the motor could have flange front edge, the size and the output shaft can also be customized.
power voltage speed Rated torque Peak torque Peak power current Current peak Efficiency weight Chassis size
120kw 380V 6000 191Nm 300Nm 150KW 192A 260A 96.1% 240kg Y200-230
200kw 380V 10000 187Nm 300Nm 300KW 320A 450A 96.2% 220kg Y200-210
200kw 10000rpm High Speed Permanent Magnet Motor Generator
