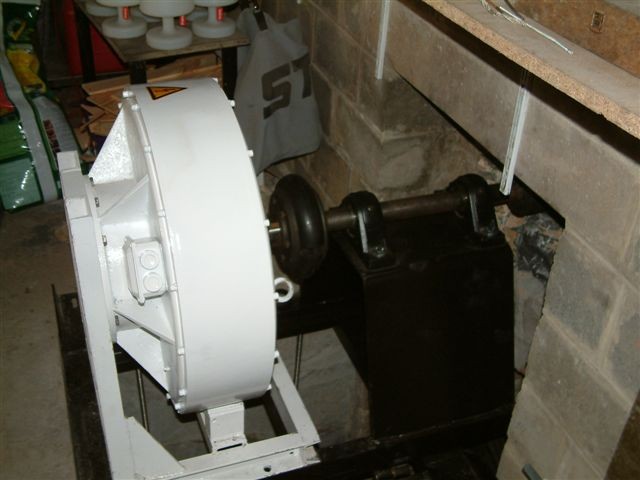

Description
generator type: synchronous permanent magnet 3 phase AC
• magnetic steel material:38SH NdFeB • class of insulation:B
• housing material: cast iron / aluminium • shaft material: 45# steel
• rated rotate speed:50 RPM
• rated voltage: 24VAC/48VAC/96VAC/120VAC/220VAC/240VAC
• grade of protection: IP54 • weight:96kg(cast iron) /84kg(aluminium)
• start up torque: 8.82Nm (cast iron）/ 10.78Nm (aluminium)
• rated torque at rated speed:315Nm
|

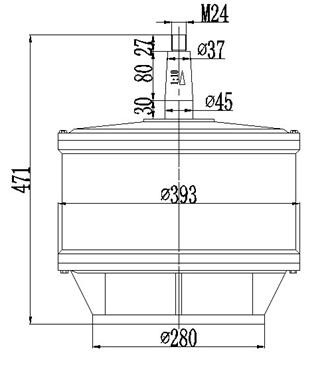

1KW50RPM 48V Vertical Generator Design Data |
|||||||||||
|
rpm |
5 |
10 |
15 |
20 |
25 |
30 |
35 |
40 |
45 |
50 |
55 |
|
no-load voltage（Vac） |
8 |
16 |
24 |
32 |
40 |
48.2 |
56 |
64 |
72 |
80 |
88.3 |
|
load voltage (Vac) |
5 |
9.9 |
15 |
19.8 |
24.7 |
29.5 |
34.3 |
39 |
43 |
48 |
52.7 |
|
load current (A) |
1.2 |
2.5 |
3.7 |
5 |
6.2 |
7.4 |
8.6 |
9.8 |
11 |
12.1 |
13.2 |
|
output power(W) |
10.1 |
42 |
95 |
167 |
260 |
373 |
505 |
654 |
820 |
1001 |
1197 |
|
torque (Nm) |
37 |
70 |
102 |
135 |
166 |
198 |
228 |
258 |
287 |
315 |
341 |
Remark: The design load electric resistance of above data is 2.3 Ω.
