Description
This series of products are suitable for high power controller of
various powers and they are widely used in temperature control and
continuous regulation of AC voltage and power. It is a
full-functional, high technical index, secure and reliable product.

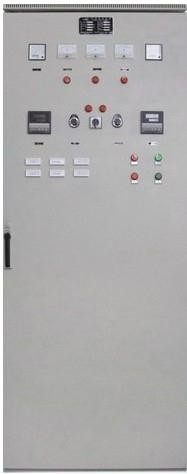

GGD panel is adopted and dimensions of the cubicle are
800×600×2260mm( Wiath ×Depth× Height ). This product is produced
according to the standards of JB 3283-83: Thyristor AC Power
Controller(Controllable Silicon Voltage Regulator and Power
Controller Sector).
PARTICULAR INFO
I、MAIN PERFORMANCE AND CHARACTERISTICS ★ Every device includes one
primary circuit and two control systems and each control system
serves as the backup for the other so as to guarantee the
reliability of the device; ★ Optional manual or automatic mode; ★
Load connecting method: Y0 or △ mode; ★ Temperature control
accuracy: ≤1℃; ★ Real-time temperature detecting and on-line
temperature value setting; ★ PID calculation with on-line adjustable
parameters; ★ Fault monitoring such as quick fuse breaking,
over-current, temperature overrun of wind machine and heating
devices and pulse phase-loss; ★ Optional constant - temperature
operation and constant power operation mode; ★ Zero-crossing
triggering of controllable silicon by constant interval (KTF is set
to be periodical mode); ★ Monitoring various kinds of faults and
warning by sound, light and digital display by computer; ★ Remote
data communication system is optional in KTF power controller \ to
connect computer system and so as to implement remote monitoring and
remote setting. II、ORDER INFORMATION ◎、The following parameters are
required: Model, wiring method and quantity of capacity sensor and
thermal sensor
