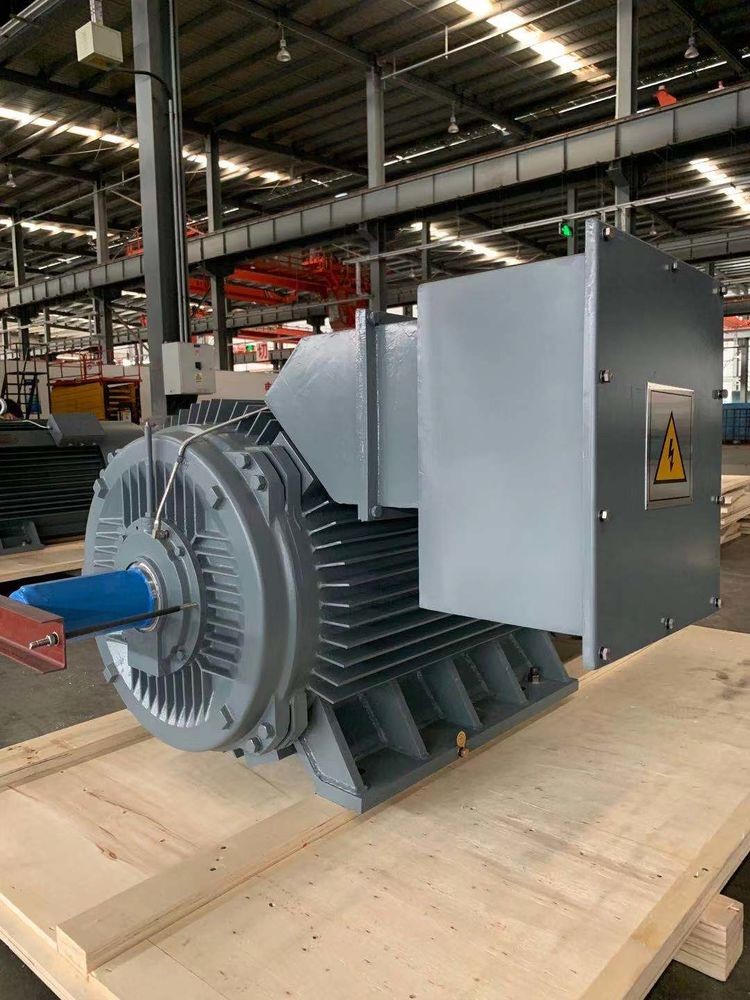

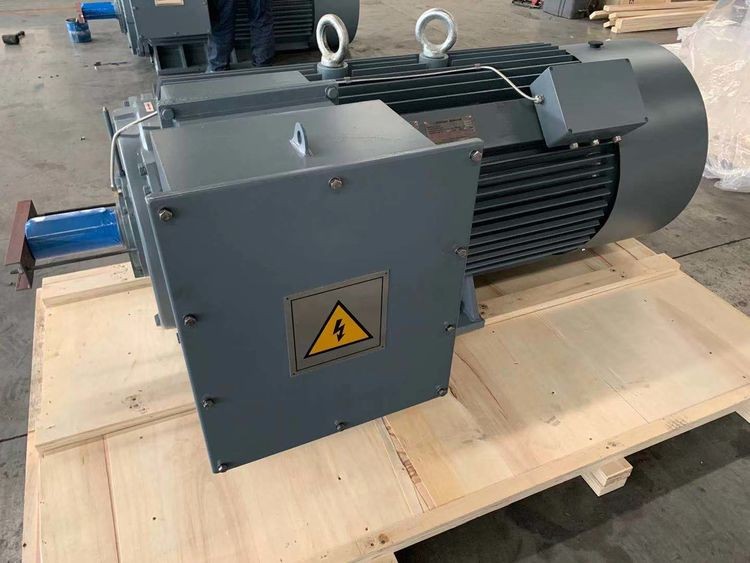

Tyzd Series Low-Voltage Low-Speed Direct Drive Three-Phase Permanent Magnet Synchronous Motor (380V center height 355-800)

TYZD series low-pressure low-speed direct drive three-phase permanent magnet synchronous motor (380V center height 355-800)

        The efficiency indicators of the series refer to the level 1 standard of gb30253-2013, the energy efficiency limit and energy efficiency level of the permanent magnet synchronous motor.

        The series of basic series is air - empty cooling, protection grade IP55, F class insulation, S1 working system. Other protection grades and cooling mode products can be provided according to the user's requirements.

        This series of products is a kind of direct driving motor, rated voltage of 380 v, the inverter power supply, can satisfy the requirement of speed and torque load directly, will save the transmission system of reducer, and buffering mechanism fundamentally overcome the induction motor and the insufficiency of various gear speed reducer drive system, high transmission efficiency, good performance of starting torque, energy saving, low noise, small vibration, low temperature, safe and reliable operation, installation, low maintenance cost advantages. Other voltage grade products can be provided according to user needs.

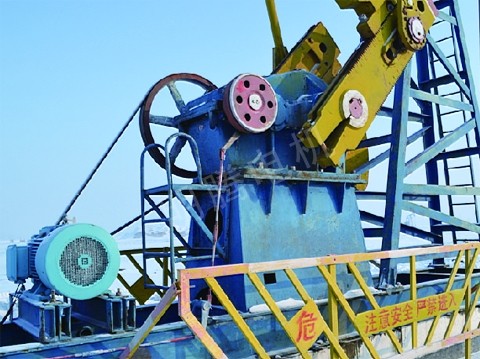

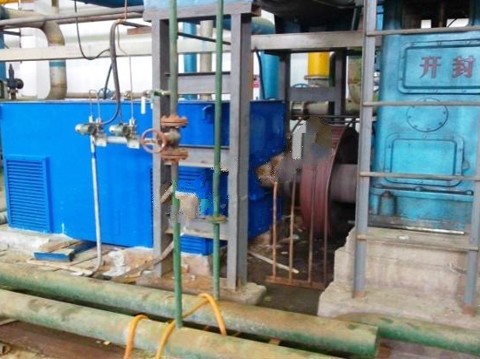

       This series of products is widely used in coal mine, mine, metallurgy, electric power, chemical industry, building materials, etc., and is used to drag ball mill, fan, belt machine, mixer, etc.
