Description
generator type: synchronous permanent magnet 3 phase AC
• magnetic steel material:38SH NdFeB • class of insulation:B
• housing material: cast iron • shaft material: 45# steel
• rated rotate speed:50 RPM
• rated voltage: 48VAC/96VAC/120VAC/220VAC/240VAC/360VAC/380VAC
• grade of protection: IP54 • weight:
• start up torque: 37.2Nm
• rated torque at rated speed: 2366Nm
|
enerator type |
synchronous permanent magnet 3 phase AC |
|
magnetic steel material |
38SH NdFeB |
|
class of insulation |
F |
|
housing material |
cast iron |
|
shaft material |
45# steel |
|
rated power(KW) |
10 |
|
rated rotate speed(RPM) |
50 |
|
rated voltage(VAC) |
220/240/360/380 |
|
grade of protection |
IP54 |
|
weight(KG) |
400 |
|
start up torque(N.M) |
37.2 |
|
rated torque at rated speed(N.M) |
2366 |
|
number of poles |
46 |
|

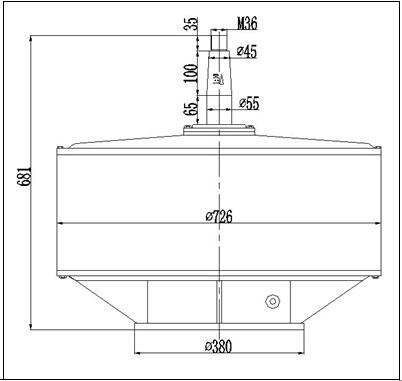

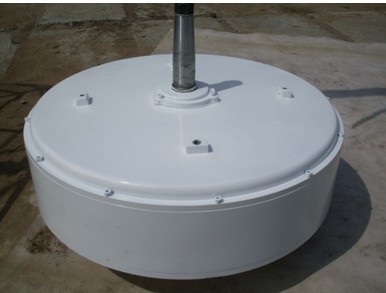

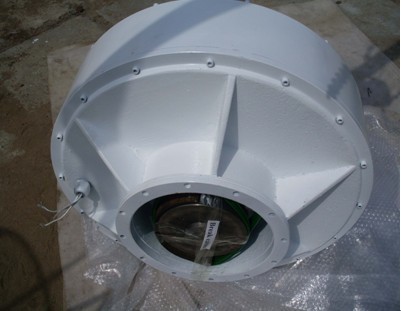

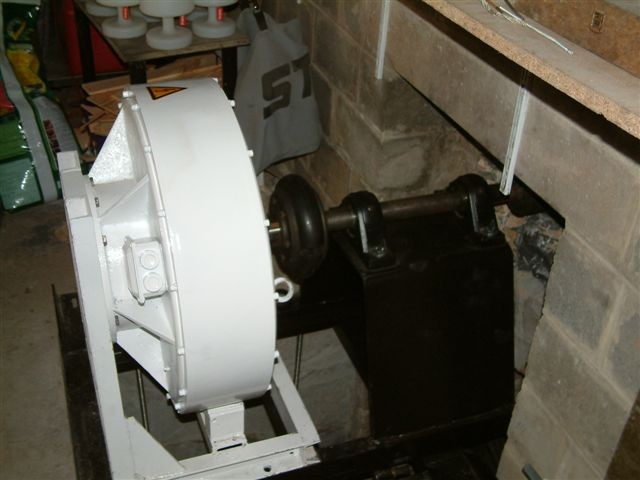

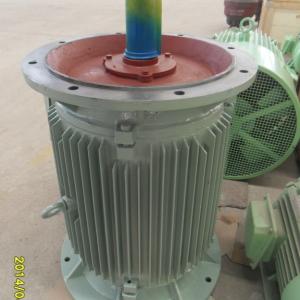

10KW 380V Vertical Generator Design Data |
|||||
|
rpm |
10 |
20 |
30 |
40 |
50 |
|
no-load voltage（V） |
99.5 |
198 |
298 |
397 |
497 |
|
load voltage(V) |
82 |
163 |
240 |
313 |
381 |
|
load current(A) |
3.3 |
6.52 |
9.61 |
12.5 |
15.3 |
|
output power(W) |
454 |
1800 |
3949 |
6740 |
10010 |
|
torque(Nm) |
580 |
1097 |
1575 |
2000 |
2366 |
