Description
We offer various kinds of permanent magnetic generator from 0.1KW-1500KW(vertical and horizontal), speed from 30rpm-6000rpm, output voltage and speed can customize according your request
Features of Permanent Magnet Generator
*Low start up speed, Gearless, low RPM generator
*High standard components for use in hard and extreme
Environments for wind turbine
*High efficiency low mechanical resistance energy loss
*Design for reliable long operational lifetime
Features of Permanent Magnet Generator
*Low start up speed, Gearless, low RPM generator
*High standard components for use in hard and extreme
Environments for wind turbine
*High efficiency low mechanical resistance energy loss
*Design for reliable long operational lifetime
| Main specifications | |
| Rated power (kW) | 300kW |
| Rated speed (rpm) | 350rpm |
| Rated torque (Nm): | 8570Nm |
| Rated voltage (V): | 690VAC |
| Rated current (A): | 251A |
| Startup torque (Nm) | <170Nm |
| Pairs of poles | 6 |
| Frequency (Hz) | 35Hz |
| Phase | 3-phase |
| Insulation Class: | H |
| Protection Class | IP54 |
| Efficiency(%) | 95% |
| Power factor | 1 |
| Cooling | Forced air cooling or natural air cooling |

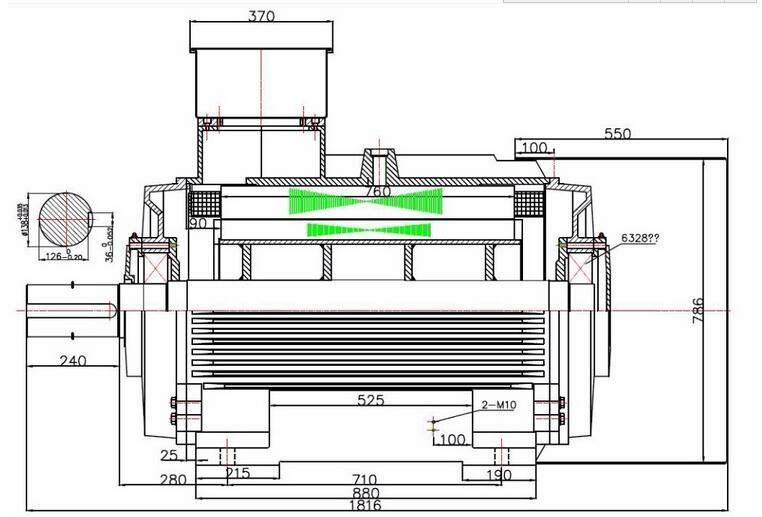

| Mechanical specifications | |
| Installation | Horizontal |
| Frame size | Y400 |
| Weight (Kg) | 2200kg |
| Materials | |
| Shaft material | Steel |
| Bearings | Steel |
| Housing material | Casting Iron |
| Winding material | Copper |
| Winding temperature level | 180ºC |
| Magnet | NdFeB |
| Magnet temperature level | 150ºC |
| Core | High quality cold rolled silicon steel sheet |
