Description

INTRODUCTION:

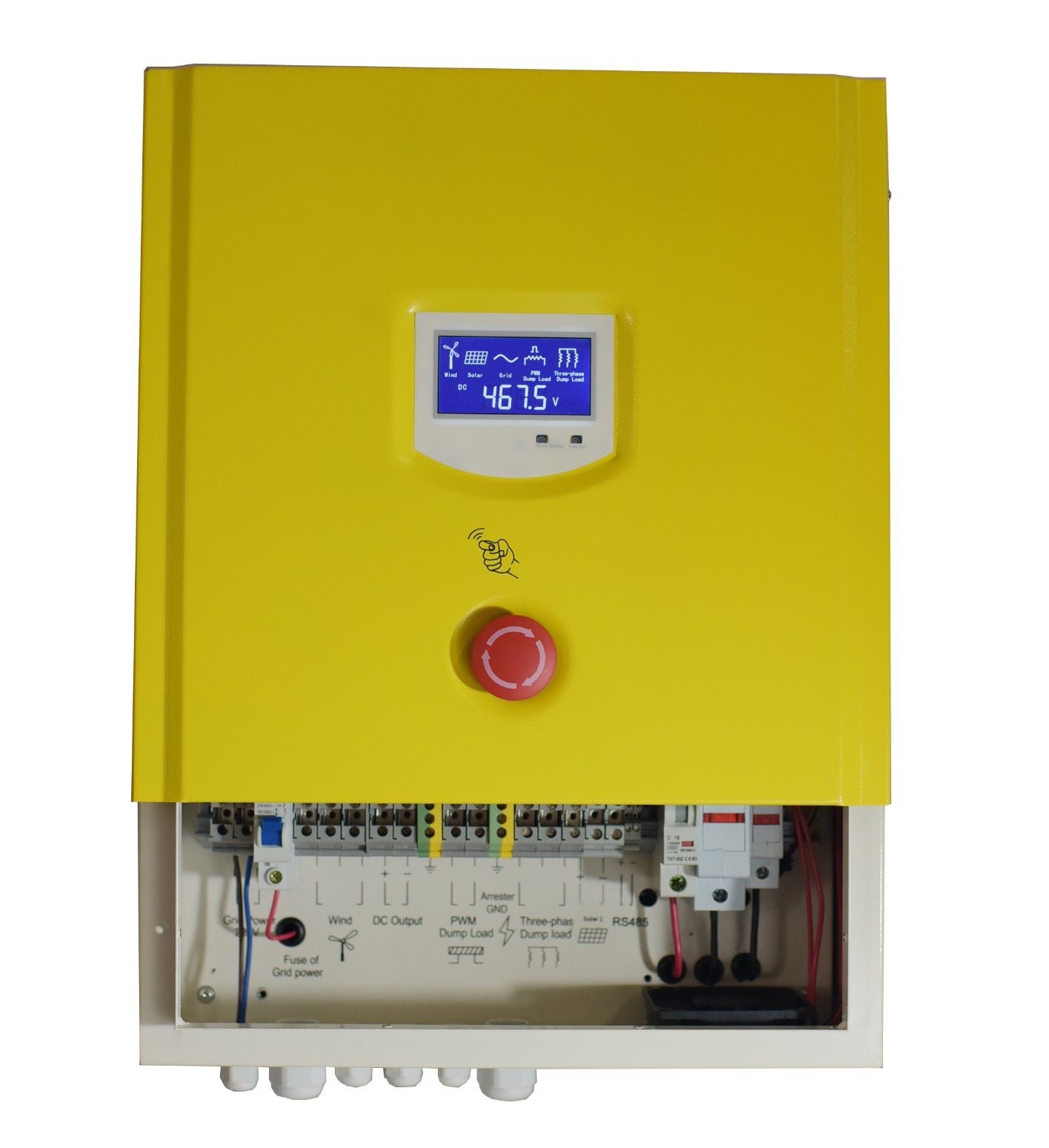

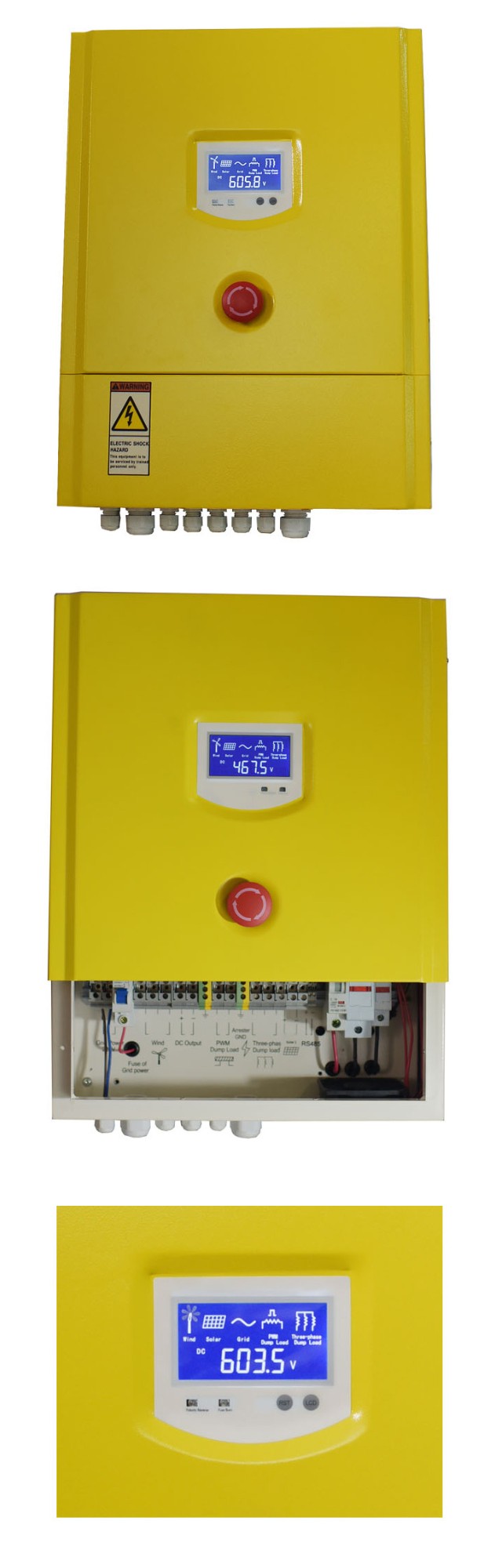

The grid-tied wind controller is specially designed for high-end wind power system. The controller adopts PWM control mode. Generally, the grid-tied wind controller directly transmits the electricity energy which is generated by wind turbine to grid-tied inverter. With the grid-tied inverter conversion and control function, it gives out the stable alternating current and transmits to utility grid.
PERFORMANCE FEATURES:

Superior military-grade components to ensure the product stability.
Perfect protection function, thus the system has higher reliability.
Check and set all operation parameters as requirement from LCD display.
PWM stepless unload mode, when wind turbine voltage is higher than the preset voltage, the on-grid controller will dump load the excess voltage.
QUALIFICATION:

European CE certification.
Utility mode  anti-strong-wind resistance, stepless dumpload wind power controller.
HELPFUL HINTS:
Customers, who will order the grid-tied wind controller, need to provide the following information:
Rated wind turbine output power
Rated wind turbine output voltage
The DC input voltage range of grid-tied inverter
Full power DC input voltage range of grid-tied inverter

Product Model	WW G50 - 48-N00	WW G50 - 96-N00	WW G50 - 120-N00	WW G50 - 240-N00
Rated Wind Turbine Input Power	5kW	5kW	5kW	5kW
Maximum Wind Turbine Input Power	7.5kW	7.5kW	7.5kW	7.5kW
Rated Wind Turbine Voltage	48V	96V	120V	240V
Dumpload Start Voltage	56V	112V	140V	280V
DC Output Voltage Range	0~60V (Adjustable)	0~120V(Adjustable)	0~150V(Adjustable)	0~300V(Adjustable)
Display Mode	LCD
Quiescent Current	≤ 20mA
Ambient Temperature & Humidity	-20~+55/35~85%RH(Without Condensation)

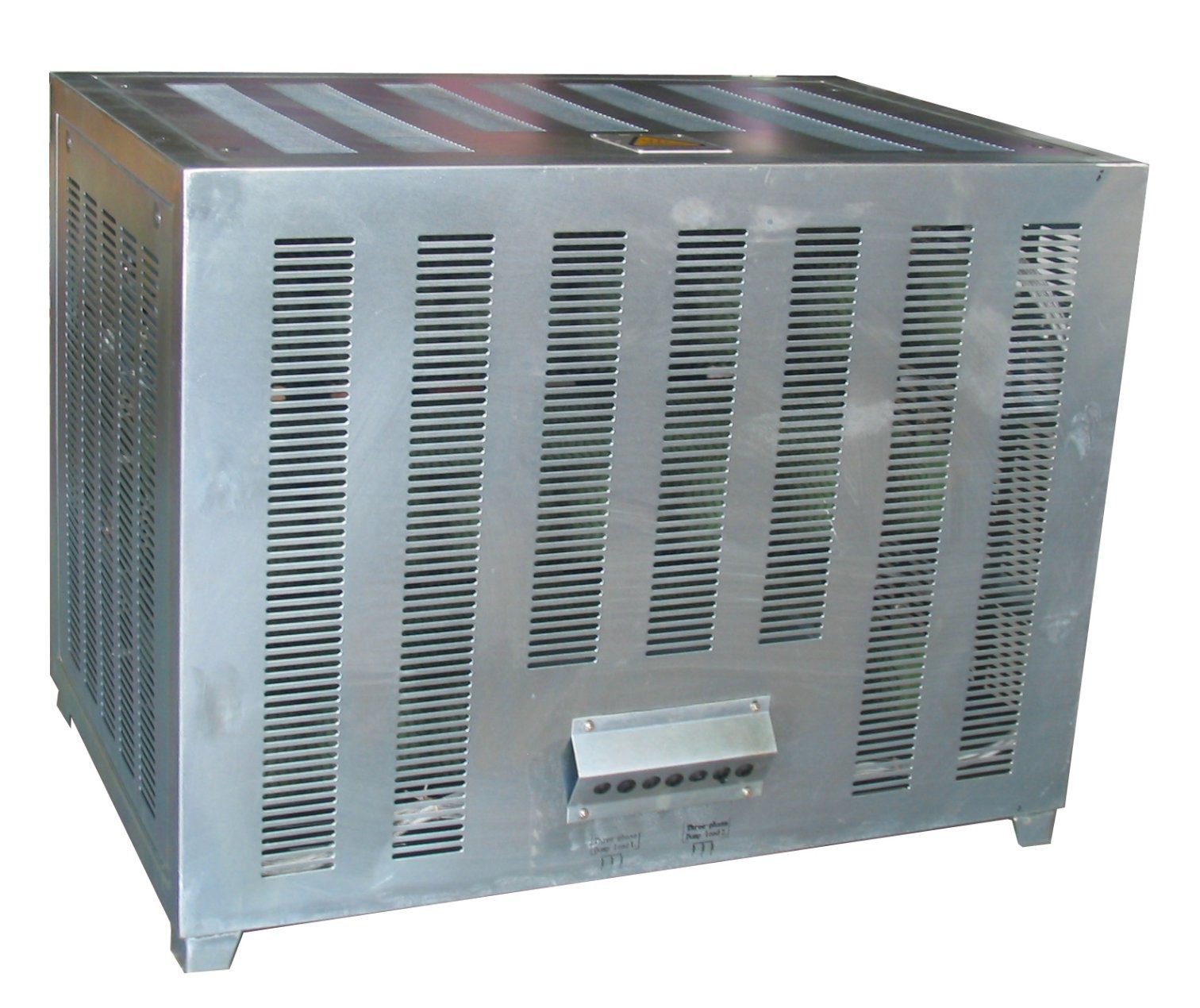

Product Dimension (L x W x H)	Control Box: 440× 300× 170mm\Dumpload Box: 770× 390× 180mm
Net Weight	Control Box: 7.5kg\Dumpload Box: 17kg
In order to serve our customers better. Our company can adjust parameters configuration according to customer' s requirement.


TECHNICAL PARAMETERS:

Product Model	WW G100 - 120-N00	WW G100 - 220-N00	WW G100 - 240-N00
Rated Wind Turbine Input Power	10kW	10kW	10kW
Maximum Wind Turbine Input Power	15kW	15kW	15kW
Rated Wind Turbine Voltage	120V	220V	240V
Dumpload Start Voltage	140V	257V	280V
DC Output Voltage Range	0~150V(Adjustable)	0~275V(Adjustable)	0~300V(Adjustable)
Display Mode	LCD
Quiescent Current	≤ 20mA
Ambient Temperature & Humidity	-20~+55/35~85%RH(Without Condensation)
Product Dimension (L x W x H)	Control Box: 440× 300× 170mm\Dumpload Box: 520× 430× 675mm
Net Weight	Control Box: 9kg\Dumpload Box: 25kg
In order to serve our customers better. Our company can adjust parameters configuration according to customer' s requirement.


TECHNICAL PARAMETERS:

Product Model	WW G200 - 220-N00	WW G200 - 240-N00
Rated Wind Turbine Input Power	20kW	20kW
Maximum Wind Turbine Input Power	30kW	30kW
Rated Wind Turbine Voltage	220V	240V
Dumpload Start Voltage	257V	280V
DC Output Voltage Range	0~275V(Adjustable)	0~300V(Adjustable)
Display Mode	LCD
Quiescent Current	≤ 20mA
Ambient Temperature & Humidity	-20~+55/35~85%RH(Without Condensation)
Product Dimension (L x W x H)	Control Box: 440× 300× 170mm\Dumpload Box: 680× 420× 675mm
Net Weight	Control Box: 9kg\Dumpload Box: 30kg
In order to serve our customers better. Our company can adjust parameters configuration according to customer' s requirement.
