Description
We offer various kinds of permanent magnetic generator from 0.1KW-1500KW(vertical and horizontal), please contact us for more detail informations.

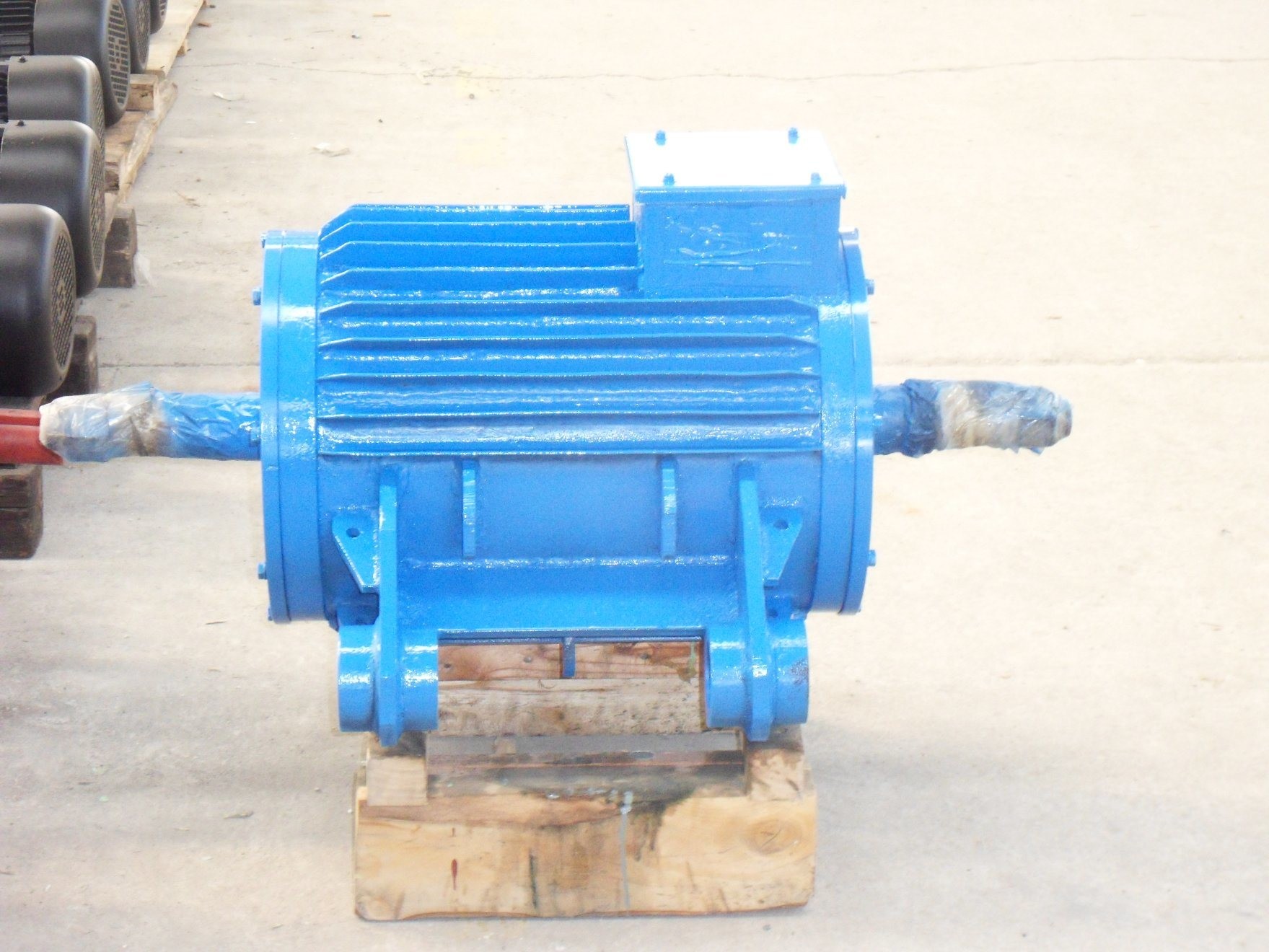

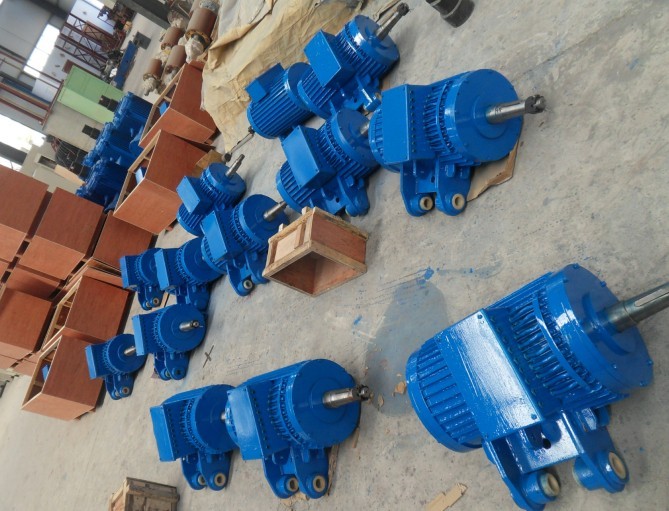

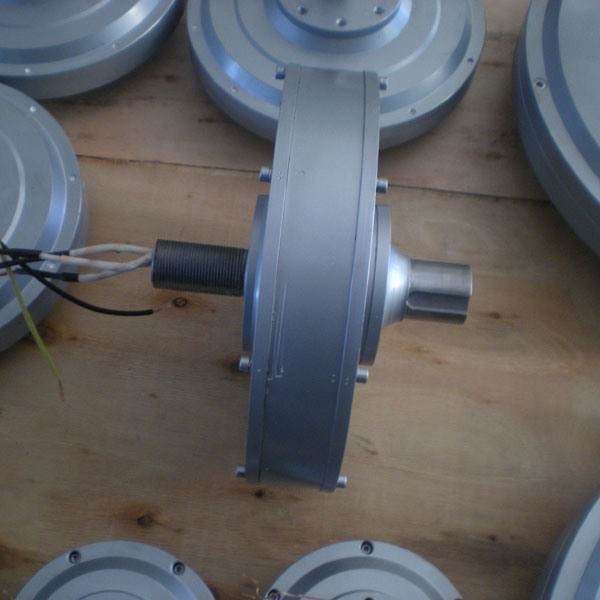

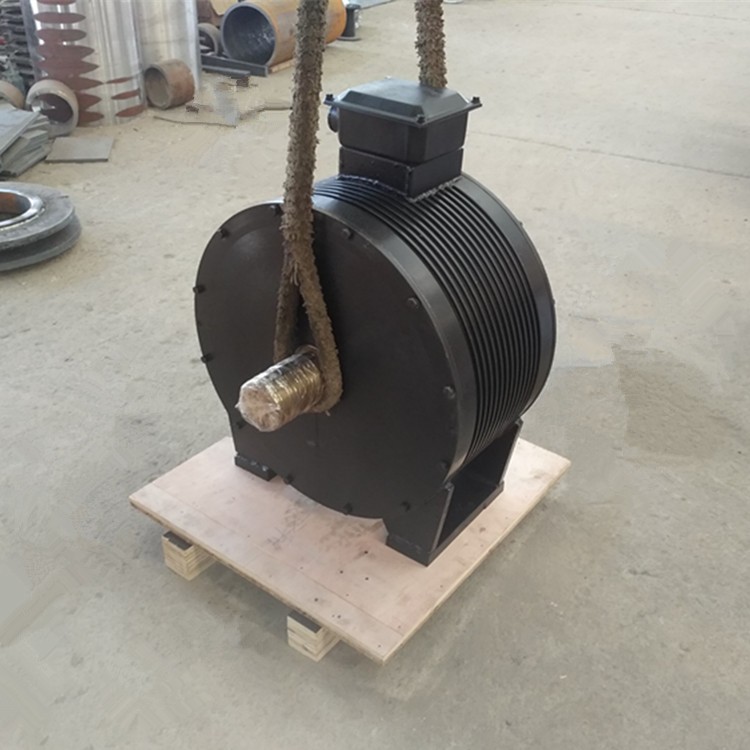

Features of Permanent Magnet Generator
*Low start up speed, Gearless, low RPM generator
*High standard components for use in hard and extreme
Environments for wind turbine
*High efficiency low mechanical resistance energy loss
*Design for reliable long operational lifetime
| POWER | Voltage | Frequency | Speed | Rated troque | Efficiency | Protect | Insult | Weight | Lead time |
| 60kw | 400V | 20Hz | 50rpm | 11460Nm | 89.3% | IP54 | H | 2620kg | 40days |
| 50kw | 660V | 20Hz | 60rpm | 7960Nm | 89.2% | IP54 | H | 2580kg | 60days |
| 700kw | 660V | 50Hz | 1500rpm | 4460Nm | 95.7% | IP54 | H | 2480kg | 60days |
| 600 kw | 660V | 50Hz | 1500rpm | 3850 Nm | 95.6% | IP54 | H | 2380kg | 60days |
