Description

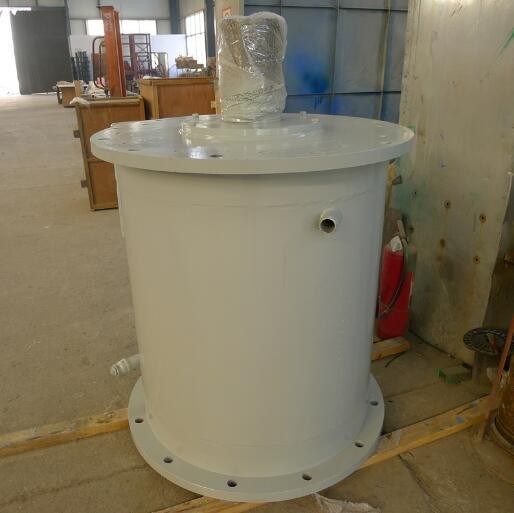

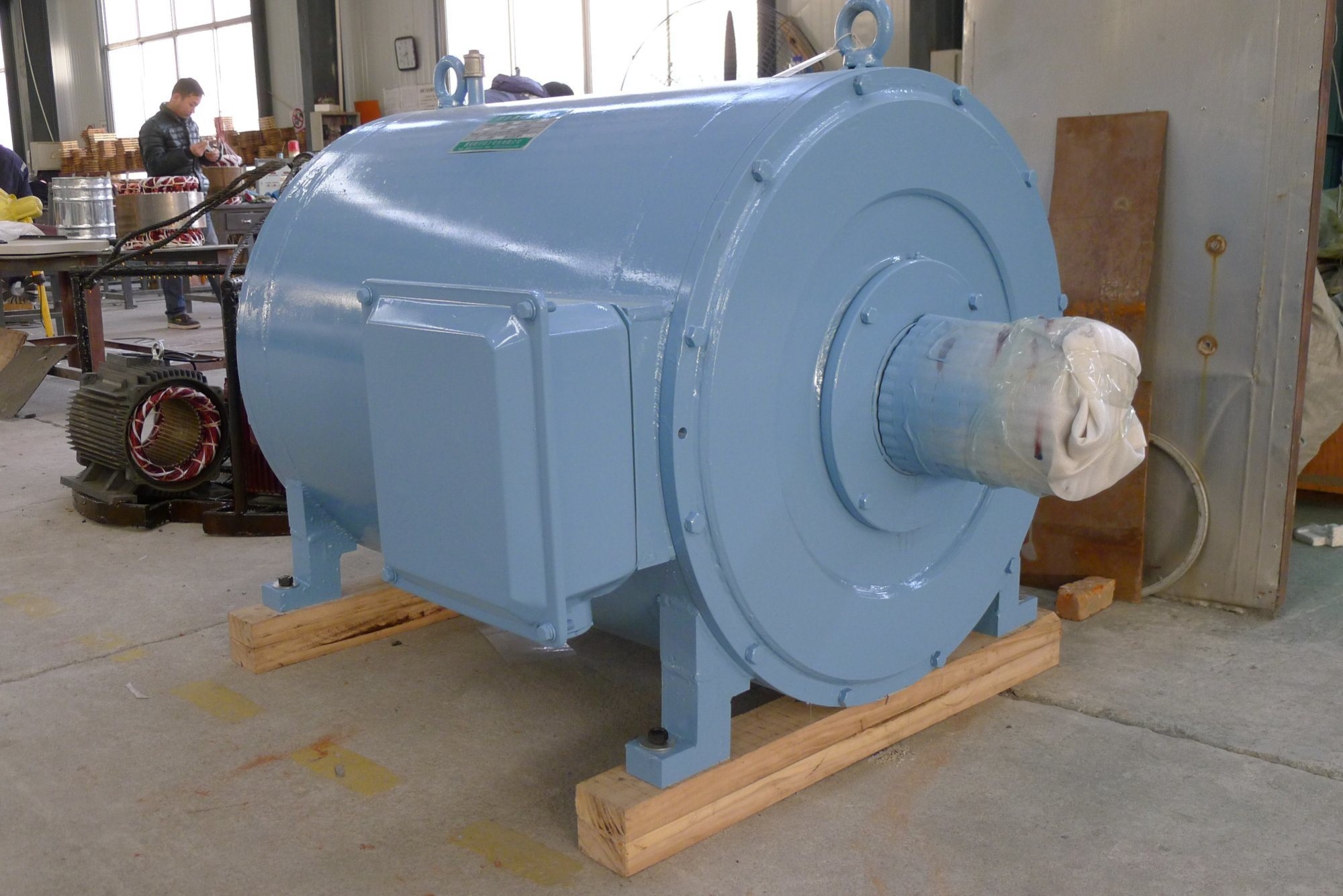

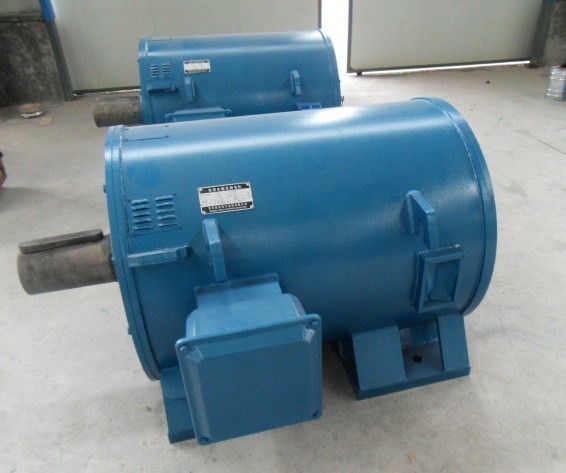

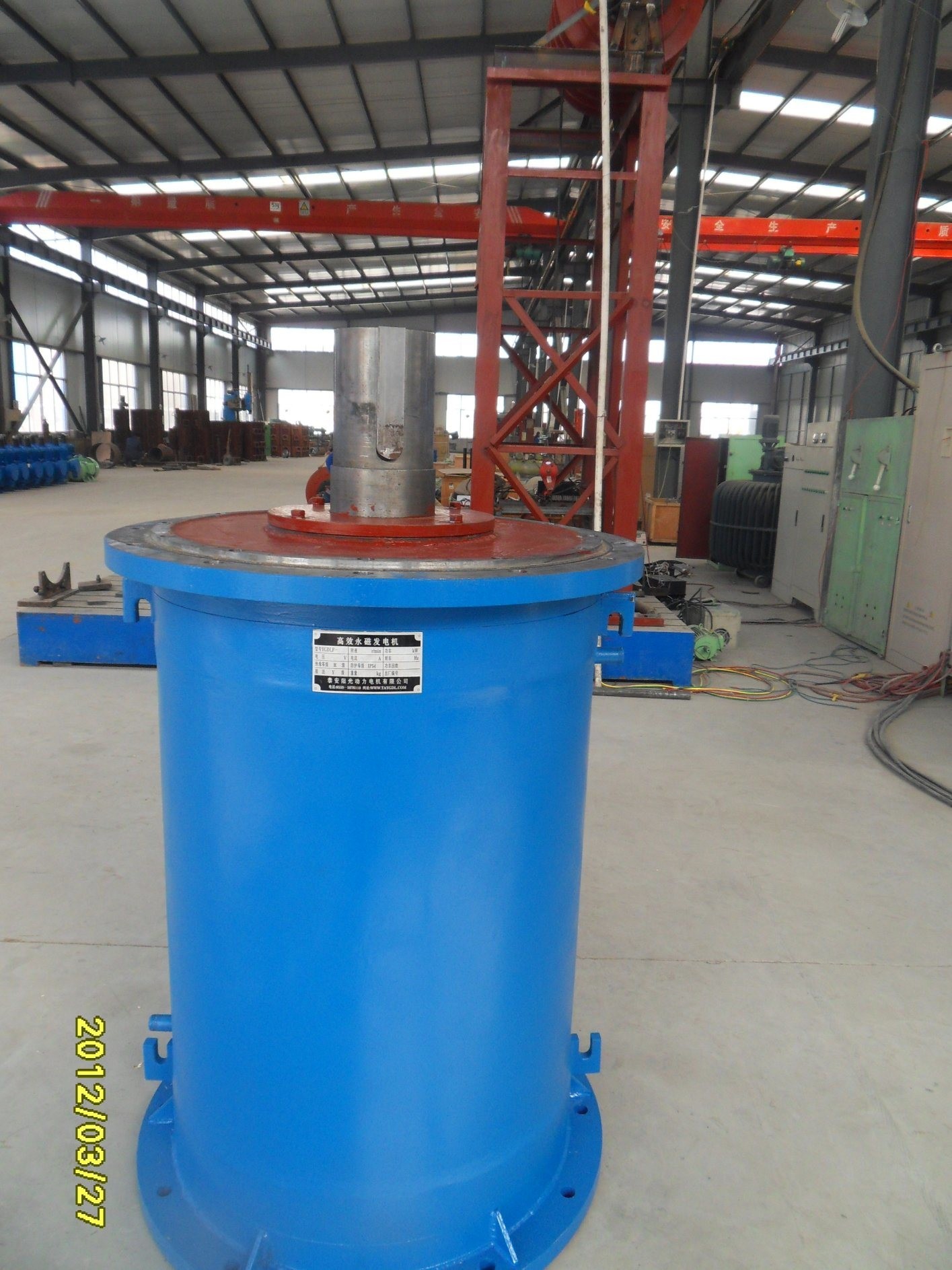

We offer various kinds of permanent magnetic generator from 0.1KW-1500KW(vertical and horizontal), please contact us for more detail informations.
Features of Permanent Magnet Generator
*Low start up speed, Gearless, low RPM generator
*High standard components for use in hard and extreme Environments for wind turbine
*High efficiency low mechanical resistance energy loss
*Design for reliable long operational lifetim
3000kw500rpm1140V50Hz PMG
Technical Parameters
| No. | Parameter | Units | Data |
| 1 | Rated output power | KW | 3000 |
| 2 | Rated speed | RPM | 500 |
| 3 | Rated output voltage | VAC | 1140 |
| 4 | Rated current | A | 1520 |
| 7 | Efficiency at rated speed | >96.2% | |
| 8 | Winding type | Y | |
| 9 | Insulation resistance | 120 MΩ | |
| 10 | Voltage withstand | ma | < 225mA |
| 11 | Insulation | H class | |
| Rated torque | Nm | 57500 | |
| 12 | Start torque | Nm | <900 |
| 13 | Temperature rise | °C | 90 |
| 14 | Max.working temperature | °C | 130 |
| 15 | Generator diameter | mm | See the drawing |
| 16 | Shaft diameter | mm | See the drawing |
| 17 | Housing material | Casting Iron | |
| 18 | Shaft material | Steel | |
| 19 | Bearing | SKF | |
| 20 | Weight | Kg | 8500 |
