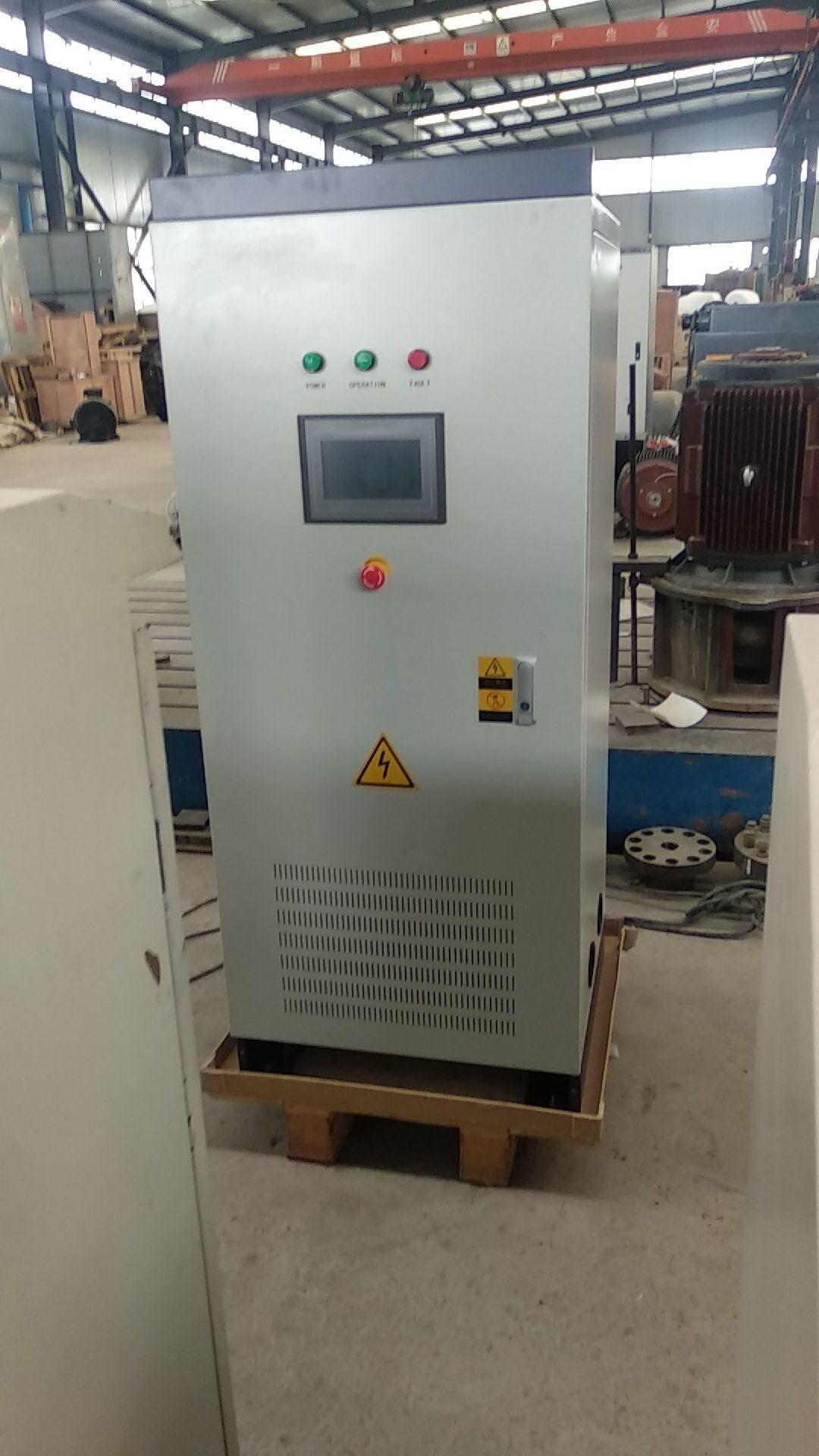

Description
PERFORMANCE FEATURES: Frequency toroidal transformer, which makes the inverter has high efficiency and low no-load lossPerfect protection and alarming function, thus the system has a high stability LCD display function, visually display battery voltagePure sine wave output, compared with square wave or modified wave, has higher efficiency and higher loading capabilityAdopts SCM to control, which makes the circuit structure simple, and the control method and control strategy more flexibleOptionalby-pass function ensures the continuity and stability of system operation European CE certification
| Model | WI05-24 | WI10-24 | WI10-48 | ||||||||
| Rated Output Capacity | 500 VA | 1 k VA | |||||||||
| Rated Battery Voltage | 24VDC | 24 VDC | 48 VDC | ||||||||
| Over Voltage Shutoff | 34VDC | 34VDC | 68VDC | ||||||||
| Over Voltage Recovery | 33VDC | 33VDC | 66VDC | ||||||||
| Under Voltage Shutoff | 21VDC | 21VDC | 42VDC | ||||||||
| Under Voltage Recovery | 24VDC | 24VDC | 48VDC | ||||||||
| No Load Loss | 0.4A | 0. 65 A | 0.3 5 A | ||||||||
| Output Wave Form | Pure Sine Wave | ||||||||||
| Display Mode | LCD | ||||||||||
| Display parameters | Battery Voltage, State parameters | ||||||||||
| Cooling Mode | Fan | ||||||||||
| Rated Output Voltage | 110/120/220/230/240 VAC | ||||||||||
| Wave Distortion | ≤4 % | ||||||||||
| Output Frequency | 50/60 Hz±0.05Hz | ||||||||||
| Dynamic Response | 5% | ||||||||||
| Overload Capacity | 120% 1 min, 150% 10 s | ||||||||||
| Inverter Efficiency | Maxmum 90% | ||||||||||
| Noise (1m) | ≤40dB | ||||||||||
| Insulating Strenght | 1500VAC , 1 min | ||||||||||
| Protection Function | Battery over voltage protection , Battery under voltage protection , Battery reverse-connect ion protection , Output over load protection , Output short circuit protection , Over temperature protection . | ||||||||||
| Working Ambient Temperature | -20~50 | ||||||||||
| Working Altitude | ≤4000m | ||||||||||
| Working Ambient Humidity | 0~90%, no condensing | ||||||||||
| Model | WI20-48 | WI20-96 | WI20-120 | WI20-220 | |||||||
| Rated Output Capacity | 2kVA | ||||||||||
| Rated Battery Voltage | 48VDC | 96VDC | 120VDC | 216VDC | |||||||
| Over Voltage Shutoff | 68VDC | 13 6 VDC | 170VDC | 306VDC | |||||||
| Over Voltage Recovery | 66VDC | 132VDC | 16 5 VDC | 297VDC | |||||||
| Under Voltage Shutoff | 42VDC | 84VDC | 105VDC | 189VDC | |||||||
| Under Voltage Recovery | 48VDC | 96VDC | 120VDC | 216VDC | |||||||
| No Load Loss | 0. 35 A | 0.2A | 0.15A | 0.1A | |||||||
| Output Wave Form | Pure Sine Wave | ||||||||||
| Display Mode | LCD | ||||||||||
| Display parameters | Battery Voltage,Output Voltage, State parameters | ||||||||||
| Cooling Mode | Fan | ||||||||||
| Rated Output Voltage | 110/120/220/230/240 VAC | ||||||||||
| Wave Distortion | ≤4 % | ||||||||||
| Output Frequency | 50/60 Hz±0.05Hz | ||||||||||
| Dynamic Response | 5% | ||||||||||
| Overload Capacity | 120% 1 min, 150% 10 s | ||||||||||
| Inverter Efficiency | Maxmum 90% | ||||||||||
| Noise (1m) | ≤40dB | ||||||||||
| Insulating Strenght | 1500VAC,1 min | ||||||||||
| Protection Function | Battery over voltage protection , Battery under voltage protection , Battery reverse-connect ion protection , Output over load protection , Output short circuit protection , Over temperature protection . | ||||||||||
| Working Ambient Temperature | -20~50 | ||||||||||
| Working Altitude | ≤4000m | ||||||||||
| Working Ambient Humidity | 0~90%, no condensing | ||||||||||
| Model | WI30-48 | WI30-96 | WI30-120 | WI30-220 | WI30-240 | ||||||
| Rated Output Capacity | 3kVA | ||||||||||
| Rated Battery Voltage | 48VDC | 96VDC | 120VDC | 216VDC | 240VDC | ||||||
| Over Voltage Shutoff | 68VDC | 13 6 VDC | 170VDC | 306VDC | 340VDC | ||||||
| Over Voltage Recovery | 66VDC | 132VDC | 16 5 VDC | 297VDC | 3 3 0VDC | ||||||
| Under Voltage Shutoff | 42VDC | 84VDC | 105VDC | 189VDC | |||||||
