Description

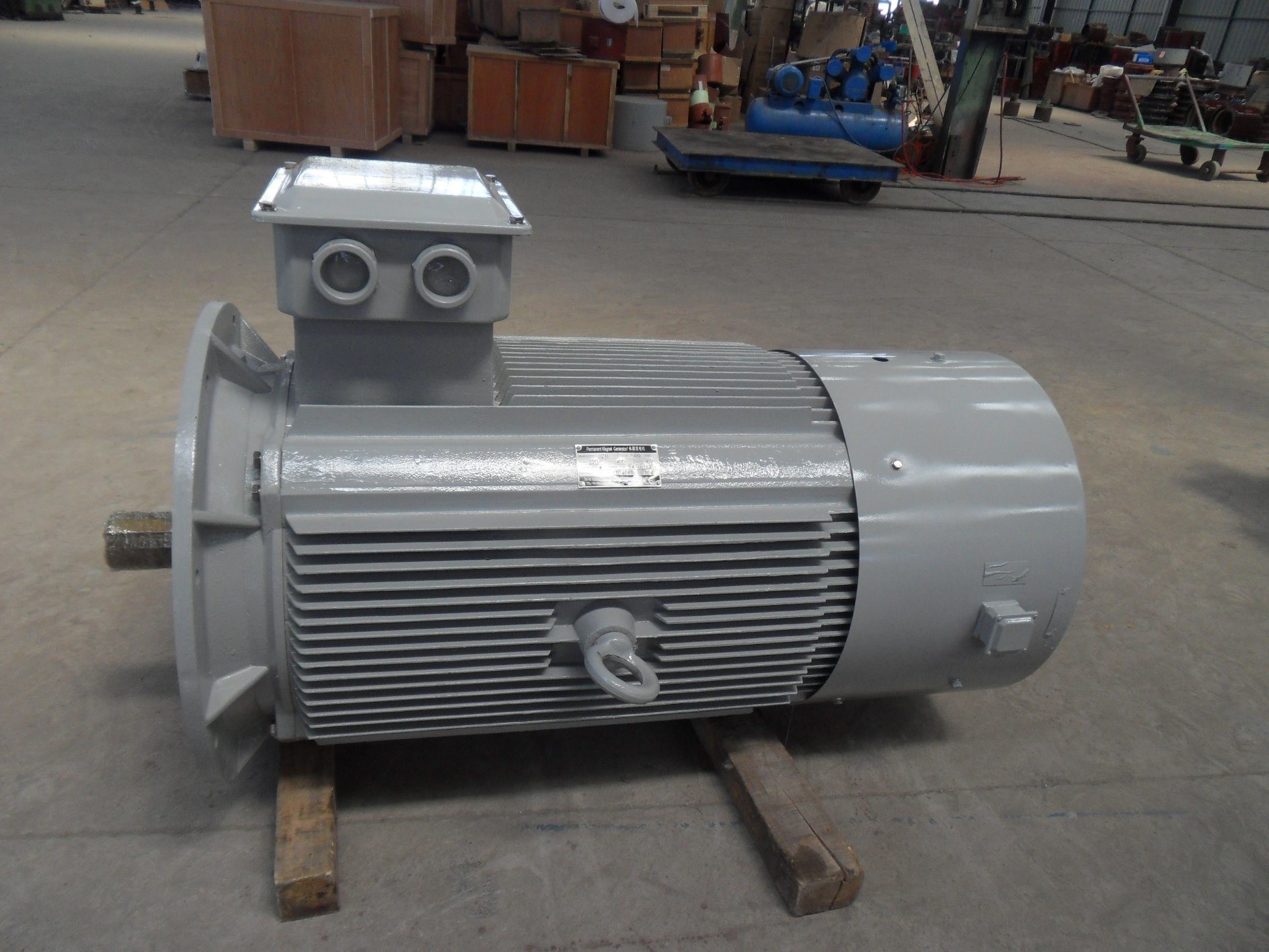

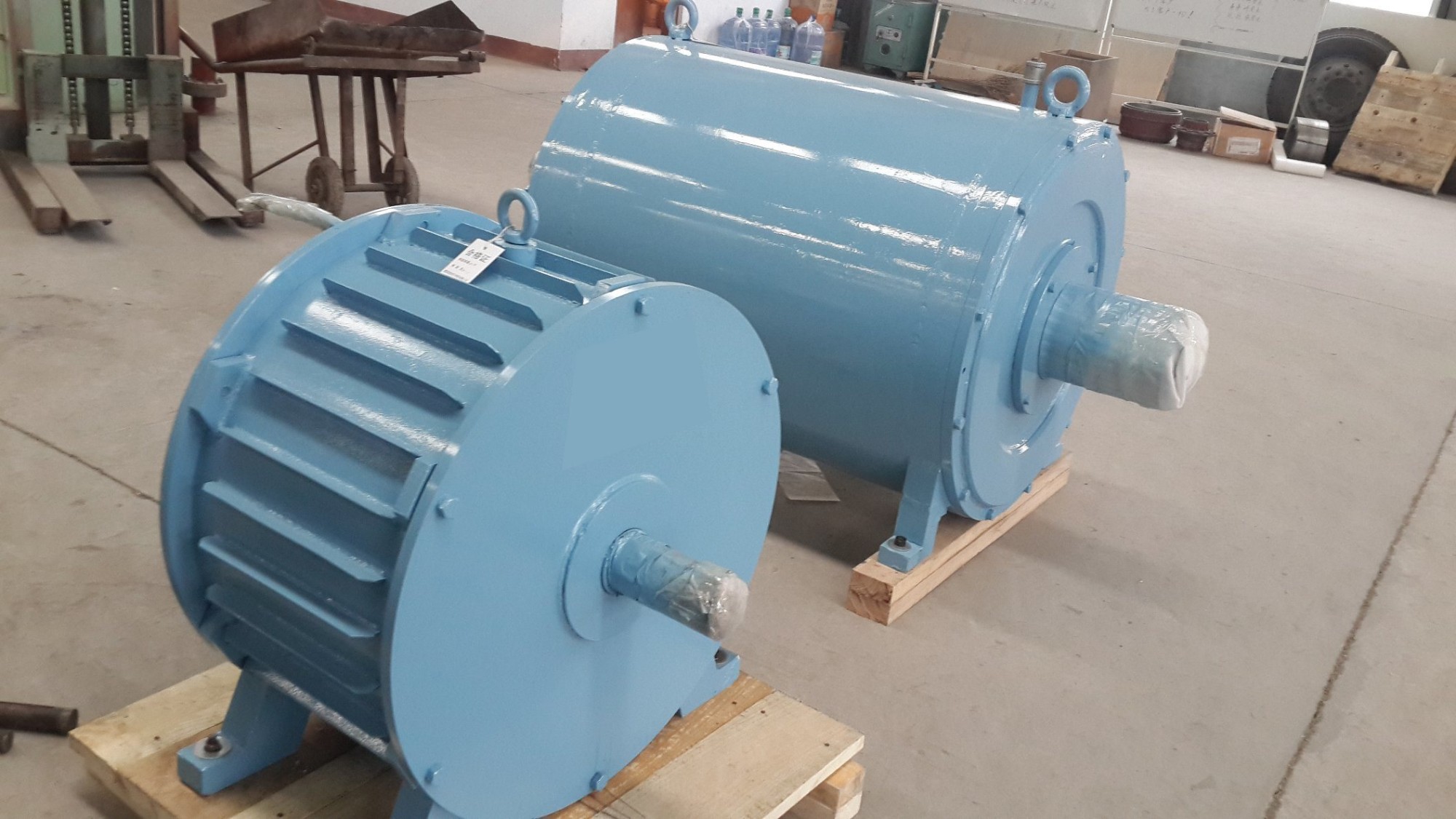

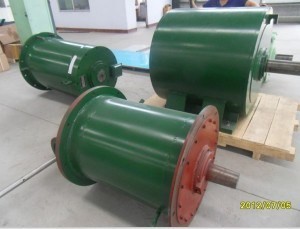

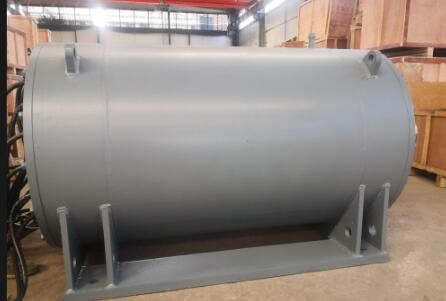

2000kw500rpm690V50Hz PMG
Technical Parameters
|
No. |
Parameter |
Units |
Data |
|
1 |
Rated output power 功率 |
KW |
2000 |
|
2 |
Rated speed 转速 |
RPM |
500 |
|
3 |
Rated output voltage 电压 |
VAC |
690 |
|
4 |
Rated current 电流 |
A |
1705 |
|
5 |
Rated frequency 频率 |
Hz |
50 |
|
6 |
Poles 极数 |
|
12 |
|
7 |
Efficiency at rated speed 效率 |
% |
96.2 |
|
8 |
Winding type 接法 |
|
Y |
|
9 |
Insulation resistance 绝缘电阻 |
MΩ |
100 |
|
10 |
Insulation 绝缘等级 |
class |
H |
|
11 |
Rated torque 额定扭矩 |
Nm |
39666 |
|
12 |
Start torque 启动扭矩 |
Nm |
800 |
|
13 |
Temperature rise 电机温度 |
°C |
90 |
|
14 |
Shaft material 轴材料 |
|
Steel |
|
15 |
Bearing 轴承 |
|
SKF |
|
16 |
Weight 重量 |
Kg |
4600 |
