Description

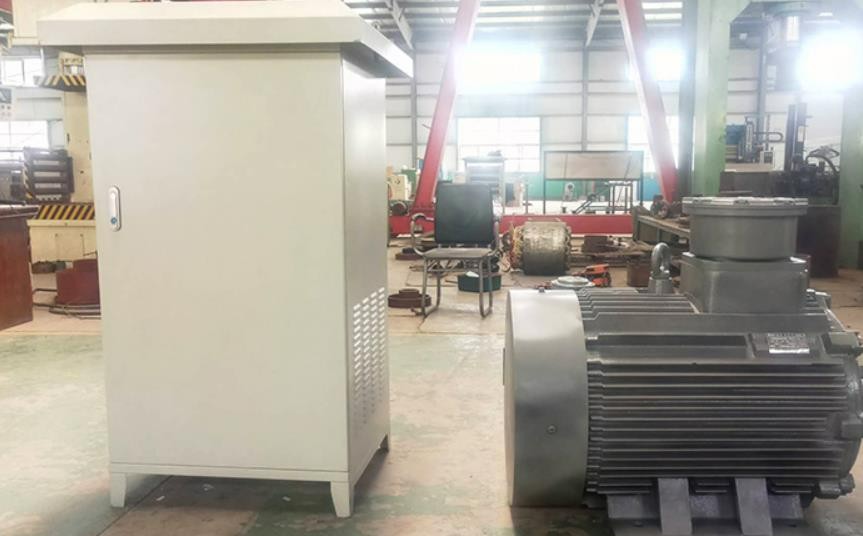

The low-speed direct-drive high-torque switched reluctance motor system has the following performance characteristics: 1. Cancel the belt drive, reducer and clutch transmission system, the system efficiency is greatly improved, and the energy saving effect can reach 30%; 2. It has the function of direct starting with load, with small starting current and large starting torque; 3. With stepless speed regulation function, the operating speed can be adjusted according to the working conditions to improve work efficiency; 4. The motor and working machinery can be system integrated, and the equipment area will be greatly reduced; 5. The system has highly intelligent multiple safety protection functions; 6. The control system adopts international leading technology, which can realize remote control and operation monitoring; 7. Realize the smooth transition of speed control and torque control to ensure the stable output of smooth torque of the motor; 8. Simplify the system structure and reduce the cost of the system.
Low-speed direct drive motor system model
Power(kW)
Speed
Overload
Efficiency
Rated
voltage(V)
Cooling
(rpm)
DZSRM-A
7.5-15
150-175
2
~
90%
AC
380
air forced cooling
DZSRM-B
55-132
100-150
2
~
90%
AC
380
water cooling
