Description

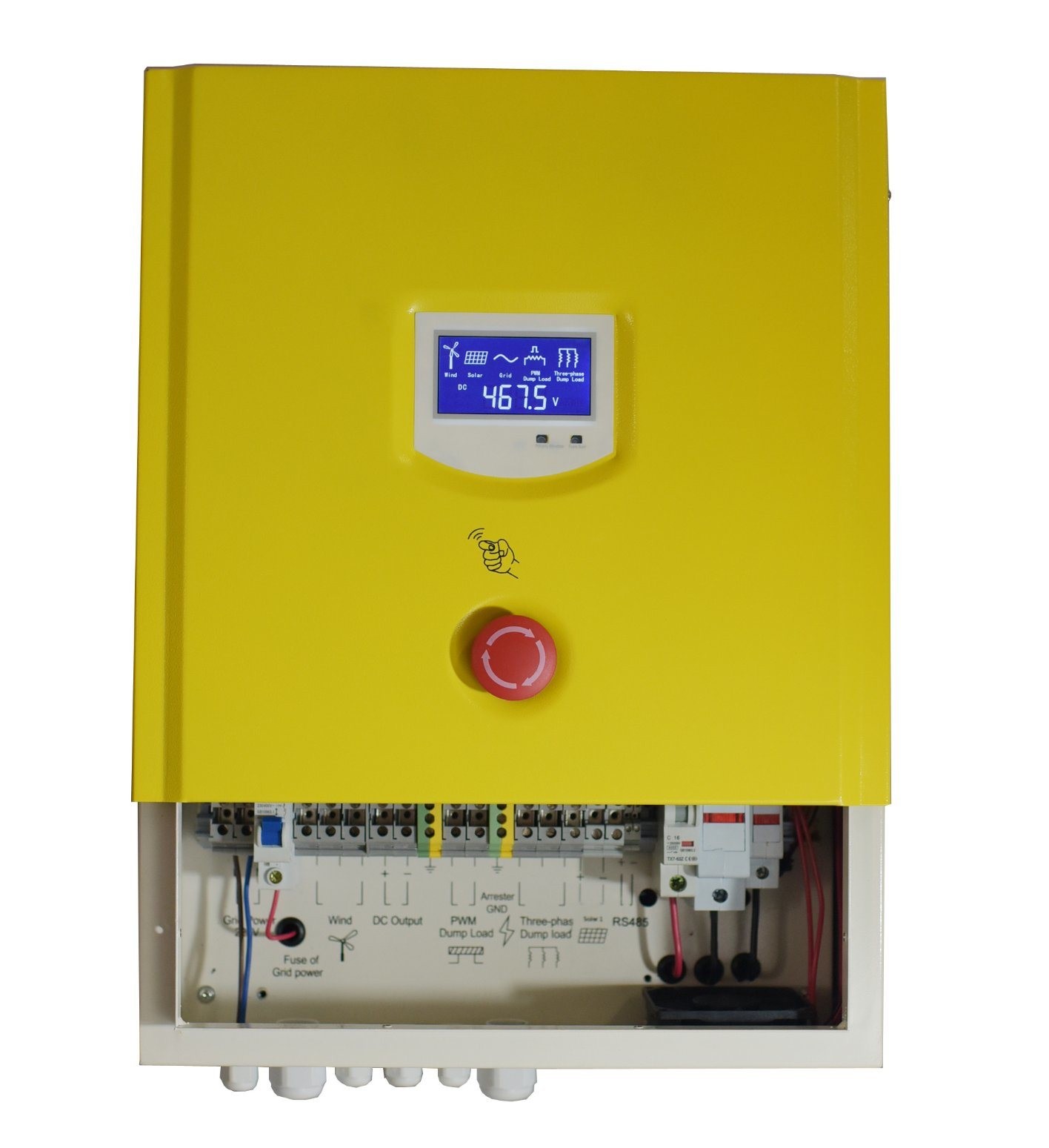

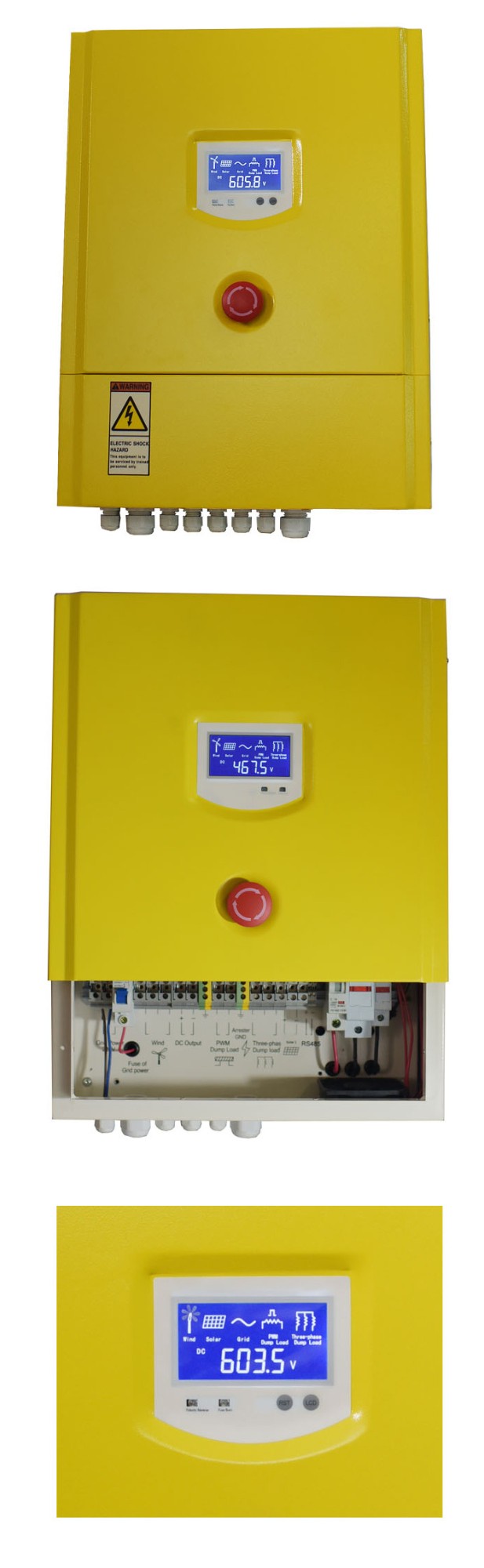

Pure sine wave off grid inverter, CE certifcate,use for wind turbine system

Model	WWS50A-48		WWS50A-96		WWS50A-12 0		WWS50A-22 0		WWS50A-24 0
Rated Wind Turbine Power	5 k W
Rated Solar Power	1.5kW
PV Charge Current	25A		15A		10A		5A		5A
Rated Battery Voltage	48V		96V		120V		220V		240V
Wind Turbine Maximum Input Current	17 0A		85 A		7 0A		35 A		35 A
Wind Turbine Maximum Input Power	8k W
Unload Voltage ( factory default )	56V		112 V		140V		252 V		280 V
Unload Current ( factory default )	25A
Control Mode	PWM
Display Mode	LCD
Display Parameters	Wind Turbine Power, Wind Turbine Voltage, Wind Turbine Current, PV Voltage, PV Charge Current, PV Power, Battery Voltage. Etc
Working Temperature & Humidity	-20~+55/35~85%RH ( Without Condensation )
Protection Function	Solar reverse-charging protection, solar reverse-connection protection, battery over charge protection, battery over-discharge protection, battery reverse-connection protection, lightning protecting, wind turbine current limitting, wind turbine automatic brake and manual brake.
In order to serve our customers better. Our company can adjust parameters configuration according to customer' s requirement.
Model		WWS100A-120		WWS100A-220				WWS100A-240
Rated Wind Turbine Power		10 k W
Rated Solar Power		3kW
PV Charge Current		20A		10A				10A
Rated Battery Voltage		120V		220V				240V
Wind Turbine Maximum Input Current		130A		70A				6 5 A
Wind Turbine Maximum Input Power		15 K W
Unload Voltage ( factory default )		140V		252 V				280 V
Unload Current ( factory default )		25 A						50 A
Control Mode		PWM
Display Mode		LCD
Display Parameters		Wind Turbine Power, Wind Turbine Voltage, Wind Turbine Current, PV Voltage, PV Charge Current, PV Power, Battery Voltage. Etc
Working Temperature & Humidity		-20~+55/35~85%RH ( Without Condensation )
Protection Function		Solar reverse-charging protection, solar reverse-connection protection, battery over charge protection, battery over-discharge protection, battery reverse-connection protection, lightning protecting, wind turbine current limitting, wind turbine automatic brake and manual brake.
In order to serve our customers better. Our company can adjust parameters configuration according to customer' s requirement.
Model		WWS200A-220				WWS200A-240
Rated Wind Turbine Power		20 k W
Rated Solar Power		6kW
PV Charge Current		20A				20A
Rated Battery Voltage		220V				240V
Wind Turbine Maximum Input Current		150A				1 35 A
Wind Turbine Maximum Input Power		30KW
Unload Voltage ( factory default )		252 V				280 V
Unload Current ( factory default )		25A
Control Mode		PWM
Display Mode		LCD
Display Parameters		Wind Turbine Power, Wind Turbine Voltage, Wind Turbine Current, PV Voltage, PV Charge Current, PV Power, Battery Voltage. Etc
Working Temperature & Humidity		-20~+55/35~85%RH ( Without Condensation )
Protection Function		Solar reverse-charging protection, solar reverse-connection protection, battery over charge protection, battery over-discharge protection, battery reverse-connection protection, lightning protecting, wind turbine current limitting, wind turbine automatic brake and manual brake.
In order to serve our customers better. Our company can adjust parameters configuration according to customer' s requirement.
