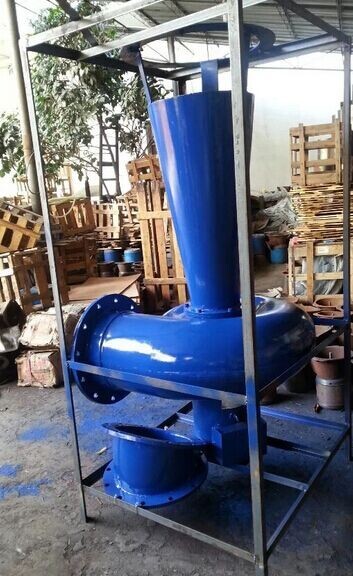

  • 600W Volute Axial Flow Water Turbine Generator for Rurual Area
  • 600W Volute Axial Flow Water Turbine Generator for Rurual Area
  • 600W Volute Axial Flow Water Turbine Generator for Rurual Area
  • 600W Volute Axial Flow Water Turbine Generator for Rurual Area
600W Volute Axial Flow Water Turbine Generator for Rurual Area 600W Volute Axial Flow Water Turbine Generator for Rurual Area 600W Volute Axial Flow Water Turbine Generator for Rurual Area 600W Volute Axial Flow Water Turbine Generator for Rurual Area

600W Volute Axial Flow Water Turbine Generator for Rurual Area

hydro turbine  , micro hydroelectric turbine  , water power  , water turbine generator  , mini hydro turbine  , francis turbine  , low water head turbine  , kaplan turbine  , china water turbine  , china hydro turbine  , made in china hydro power generator  , rural electricity  , hydroelectric  , tubular turbine  , Hydro Electric Power Plants  , turbine generation  , Tubular Turbine Generator  , Pleton Turbine  , hydro turbine parts  , reaction turbine  , steam turbine generator
Inquiry Send Email

Description

We also offer various kind of other small hydro turbine generator

Axial flow tubine generator
Francis Turbine Generator
Pelton Turbine Generator
Inclined-jet water turbine generator
Cross flow water turbine generator
Tubular water turbine generator
Impulse type water generator
Permanent Magnet Generator


2. Main specifications and technical parameters
2.1 Model type: Volute axial type
2.2 Power: 300 watts 100 kilowatts
2.3 Voltage: 110V, 220V, 380V
2.4 Frequency: 50Hz 60Hz
2.5 Water head: 1.0 meter 10 meter
2.6 Flow: 0.017m³ /s— 1.66m³ /s
2.7 Rotating speed: Four poles 1, 500 rpm; Six poles 1, 000 rpm; Eight poles 750 rpm
Name Power (KW) Water head (M) Flow(m³/S) Rotating speed (R/M) Voltage(V) Frequency (Hz) Transmission
Volute axial flow water turbine generator 0.3 1.5-4 0.045-0.017 1000 220 50 Direct
0.6 2-4 0.068-0.034 1000 220 50 Direct
1.0 2.5-6 0.085-0.035 1000 220 50 Direct
1.5 2.7-8 0.114-0.0382 1000 220 50 Direct
2.0 3-10 0.128-0.0385 1000/1500 220 50 Direct
3.0 3-12 0.185-0.0464 1000/1500 220 50 Direct
5.0 3.5-15 0.251-0.0586 1000/1500 220/380 50 Direct
8.0 4-16 0.352-0.088 1000/1500 220/380 50 Direct
10 5-18 0.34-0.094 1000/1500 380 50 Direct
12 5-18 0.395_0.10 1000/1500 380 50 Direct
15 5-18 0.47_0.132 1000/1500 380 50 Direct

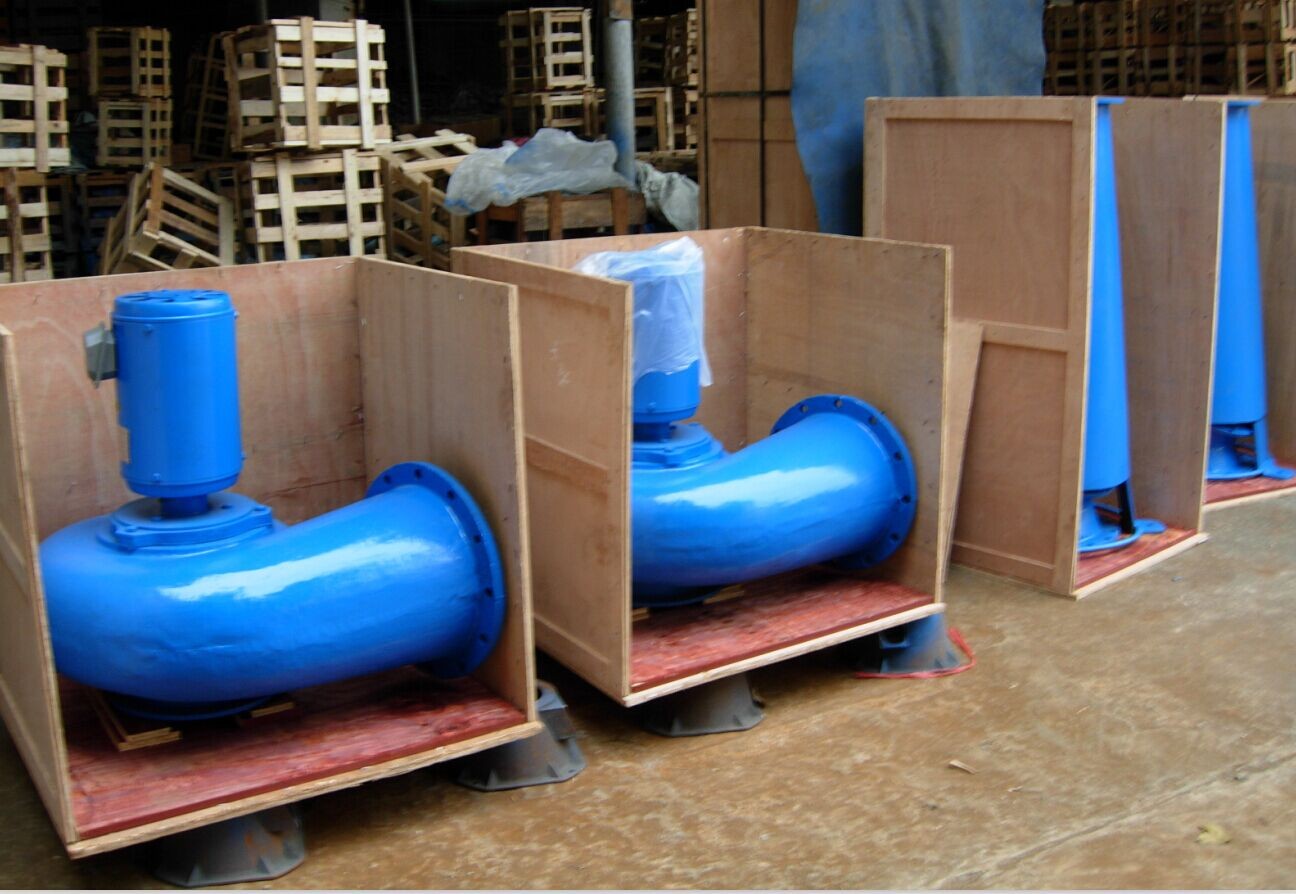

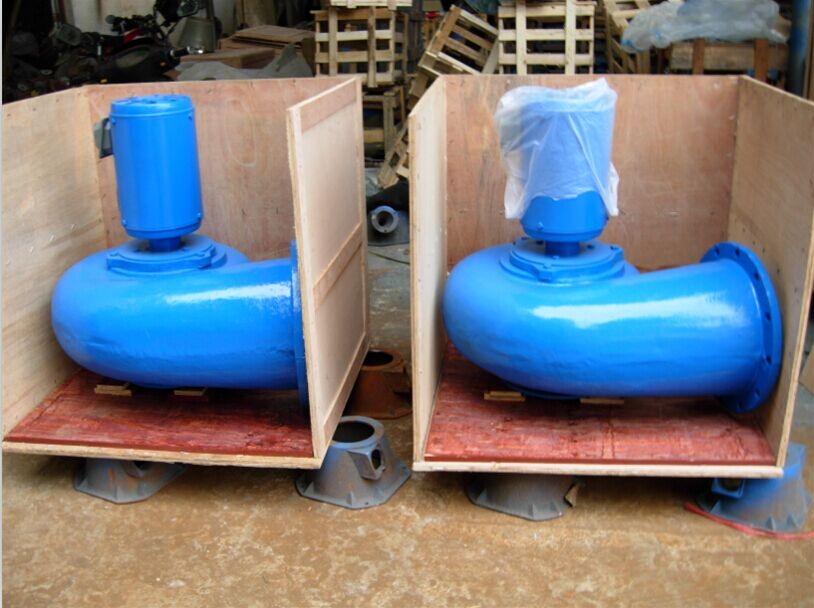

2kw Volute Axial Flow Low Head Micro Hydro Turbine Generator
2kw Volute Axial Flow Low Head Micro Hydro Turbine Generator
Name Power (KW) Water head (M) Flow (m³/S) Rotating speed (R/M) Voltage (V) Frequency (Hz) Transmission
Volvolute axia hydro turbinewater 0.3 1.5-4 0.045-0.017 1000 220 50 Direct
0.6 2-4 0.068-0.034 1000 220 50 Direct
1.0 2.5-6 0.085-0.035 1000 220 50 Direct
1.5 2.7-8 0.114-0.0382 1000 220 50 Direct
2.0 3-10 0.128-0.0385 1000/1500 220 50 Direct
3.0 3-12 0.185-0.0464 1000/1500 220 50 Direct
5.0 3.5-15 0.251-0.0586 1000/1500 220/380 50 Direct
8.0 4-16 0.352-0.088 1000/1500 220/380 50 Direct
10 5-18 0.34-0.094 1000/1500 380 50 Direct
12 5-18 0.395_0.10 1000/1500 380 50 Direct
15 5-18 0.47_0.132 1000/1500 380 50 Direct
