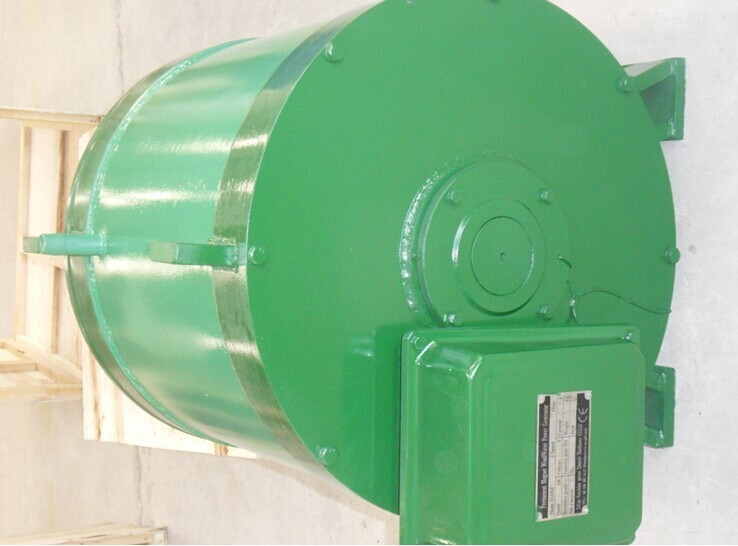

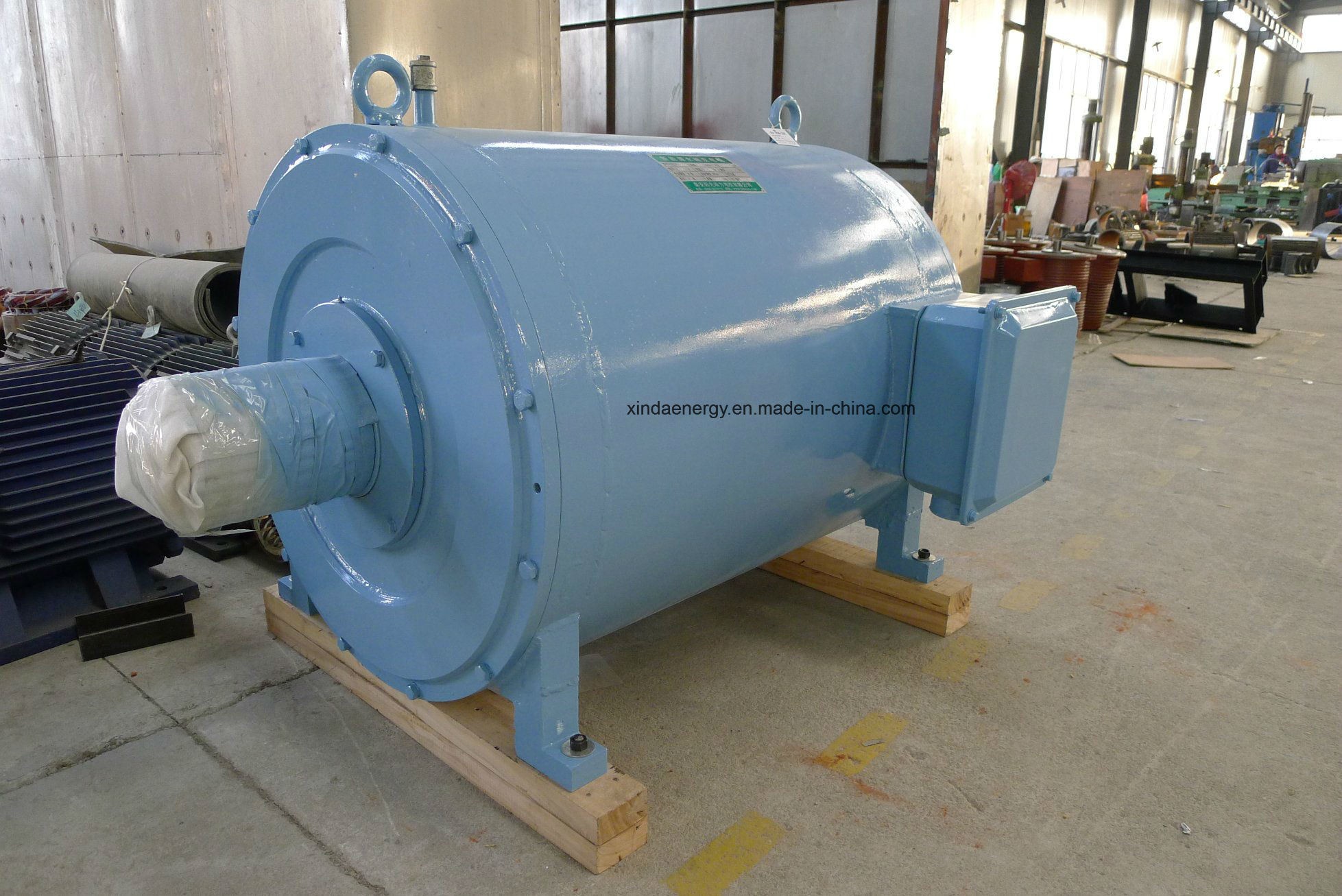

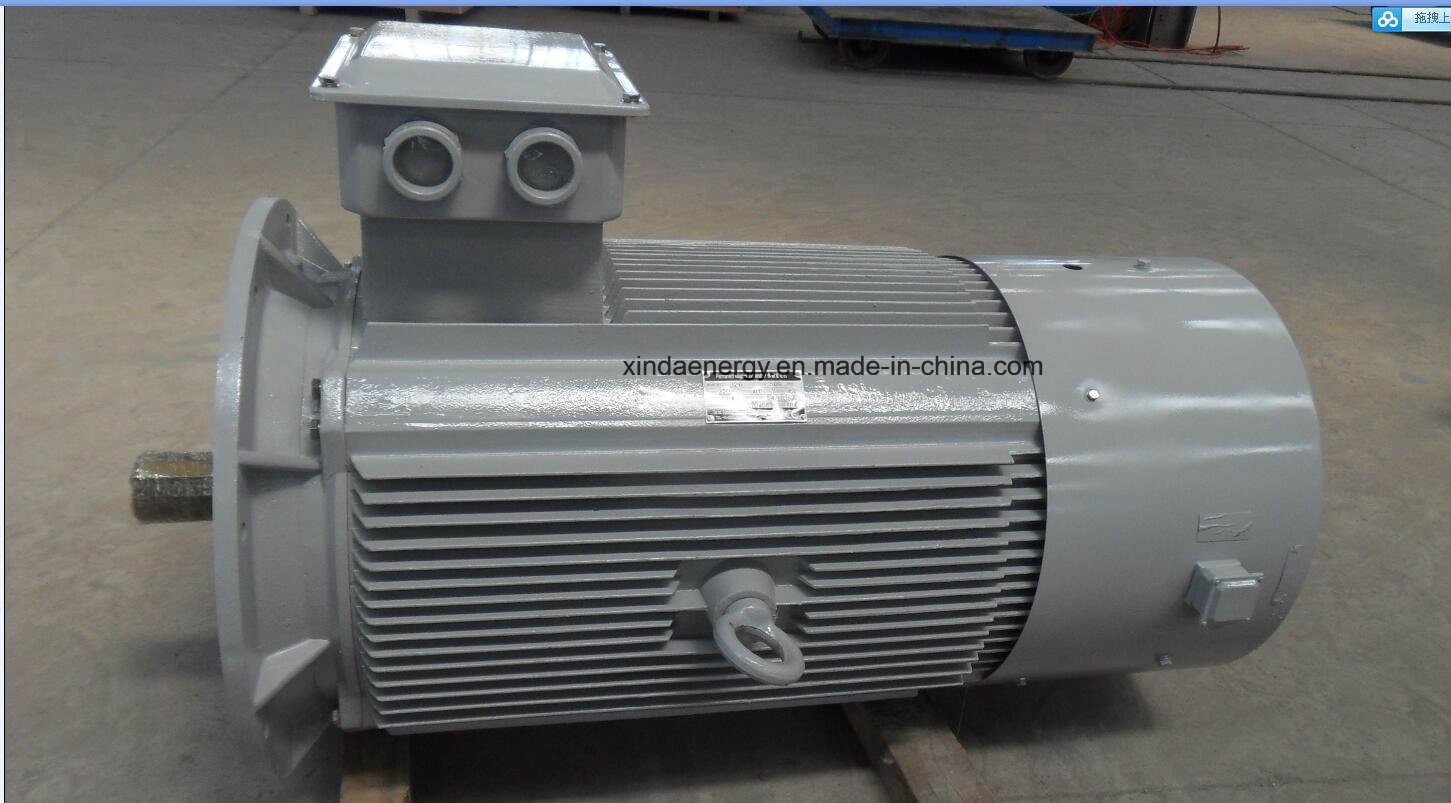

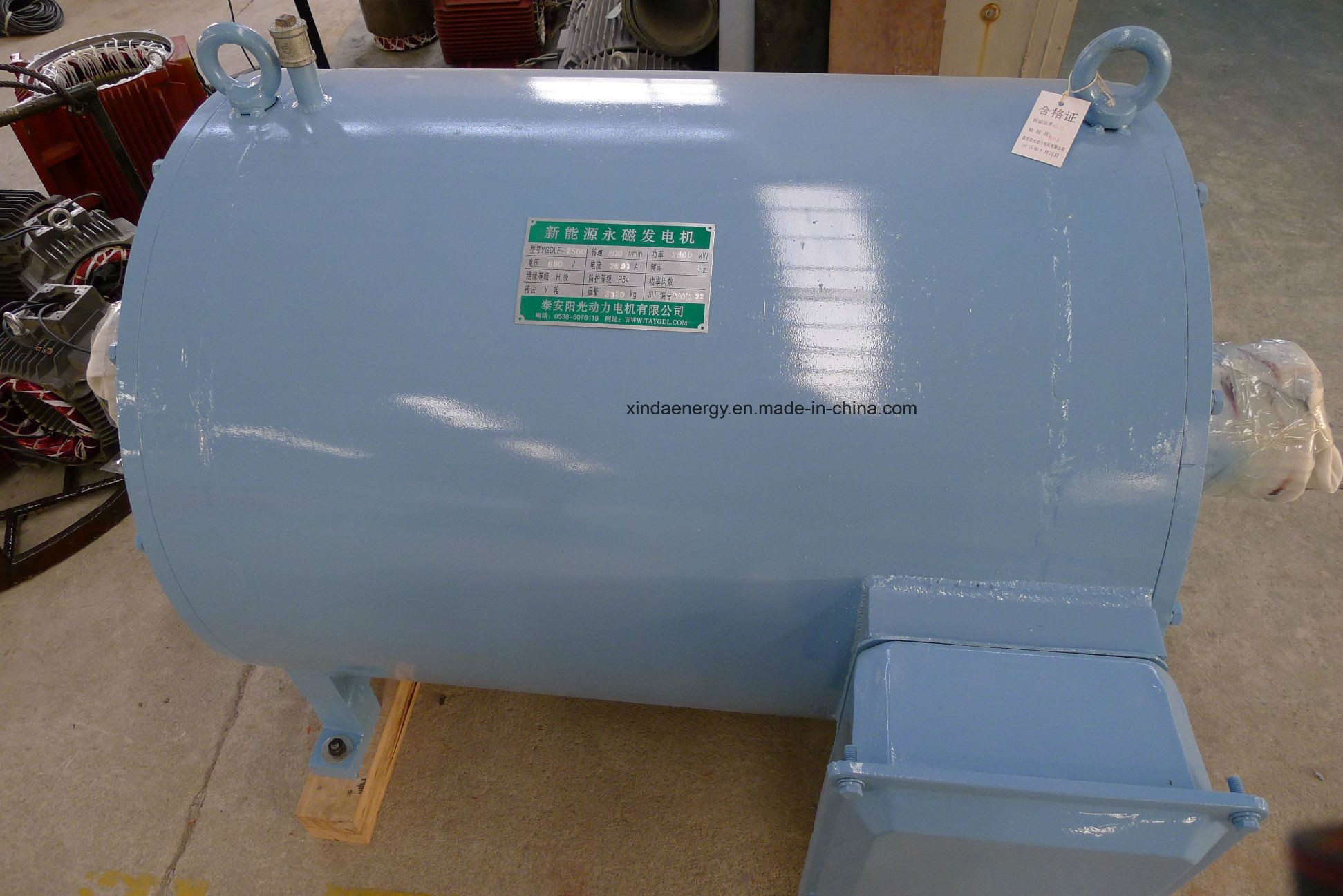

Description
We offer various kinds of permanent magnetic generator from 0.1KW-1500KW(vertical and horizontal), please contact us for more detail informations.
Features of Permanent Magnet Generator
*Low start up speed, Gearless, low RPM generator
*High standard components for use in hard and extreme Environments for wind turbine
*High efficiency low mechanical resistance energy loss
*Design for reliable long operational lifetim
No. Parameter Units Data
1 Rated output power KW 250
2 Rated speed RPM 36
3 Rated output voltage VAC 400
4 Rated current A 375
5 Rated frequency HZ 14.4
6 Poles 48
7 Efficiency at rated speed >88.1%
8 Winding type Y
9 Insulation resistance 100 MΩ
10 Insulation H class
11 Rated torque Nm 73680
12 Start torque Nm <1200
13 Temperature rise °C 90
14 Bearing SKF
15 Weight Kg 8500
Features of Permanent Magnet Generator
*Low start up speed, Gearless, low RPM generator
*High standard components for use in hard and extreme Environments for wind turbine
*High efficiency low mechanical resistance energy loss
*Design for reliable long operational lifetim
No. Parameter Units Data
1 Rated output power KW 250
2 Rated speed RPM 36
3 Rated output voltage VAC 400
4 Rated current A 375
5 Rated frequency HZ 14.4
6 Poles 48
7 Efficiency at rated speed >88.1%
8 Winding type Y
9 Insulation resistance 100 MΩ
10 Insulation H class
11 Rated torque Nm 73680
12 Start torque Nm <1200
13 Temperature rise °C 90
14 Bearing SKF
15 Weight Kg 8500
