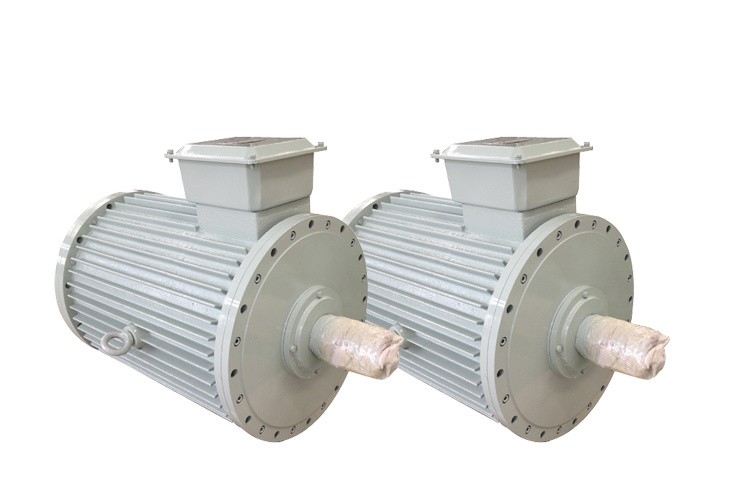

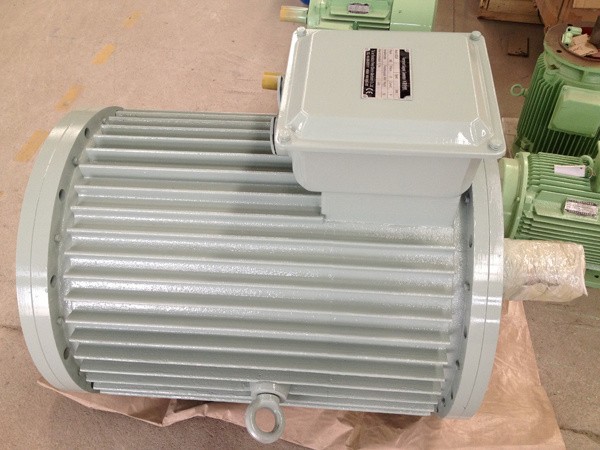

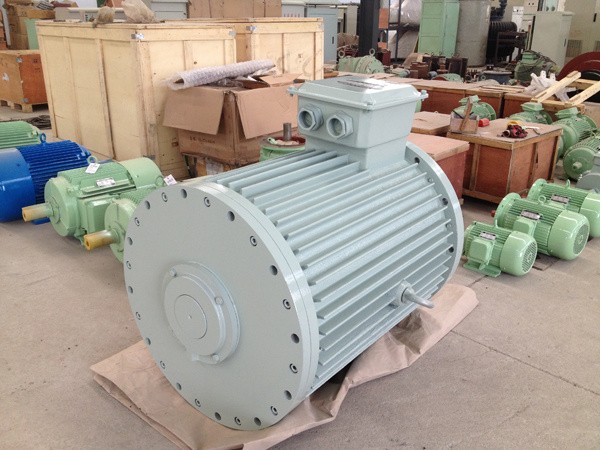

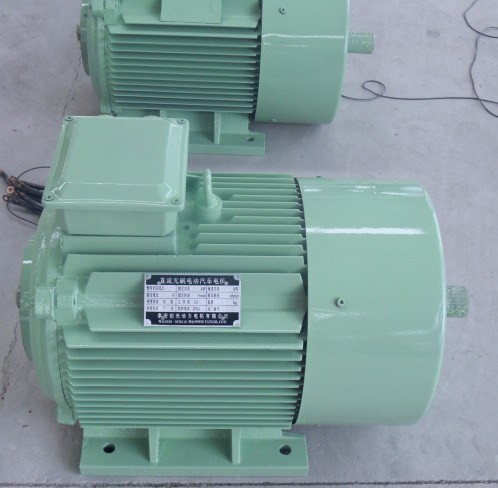

Low Speed Hydro Turbine Permanent Magnet Generator 60Hz

Low Speed Hydro Turbine Permanent Magnet Generator 60Hz

Description

Voltage and speed can change according customer request, 50Hz Permanent Magnet Generator also available

Low speed permanent magnet water generator, leaving out speed-up machine, generating 50 Hz Power at low speed. 60Hz output also available

High efficient PM rotor, compact structure. No carbon brushes, do not need excitation, no spark, no excitation winding, high rotor intensity, no field control box, sample construction, high performance.

Protection class: IP44, avoid water, mud, dusty getting into the motor, long life, especially suitable for outdoor requirements.

No excitation control-box, sample construct, high performance.

Motors is running efficiently throughout the entire speed range, saving energy.

Using embedded rare-earth magnetic steel, especially suitable for turbulence, impact dynamic and reverse running.

The motor adopts wind-cooling or water-cooling, low temperature, adopts high speed oil-retaining bearing, maintenance-free, high reliability, long life-span.

You can change the motor voltage, speed, Power and other parameters, the out size of the motor can be also changed. You can use splined shaft, dual shaft, flange and other output styles.

Power	AC voltage	speed	poles	frequency	Rated torque	current	efficiency	weight
80 kw	220V	150pm	48	60Hz	5093Nm	209A	93.8%	1680kg
160 kw	220V	300rpm	24	60Hz	5093Nm	418A	93.8%	1680kg
200 kw	220V	450rpm	16	60Hz	4244Nm	524A	93.8%	1680kg
320 kw	220V	600rpm	12	60Hz	5093Nm	839A	93.8%	1680kg
