Description
We offer various kinds of permanent magnetic generator from 0.1KW-1500KW(vertical and horizontal), please contact us for more detail informations.
Features of Permanent Magnet Generator
*Low start up speed, Gearless, low RPM generator
*High standard components for use in hard and extreme Environments for wind turbine
*High efficiency low mechanical resistance energy loss
*Design for reliable long operational lifetim

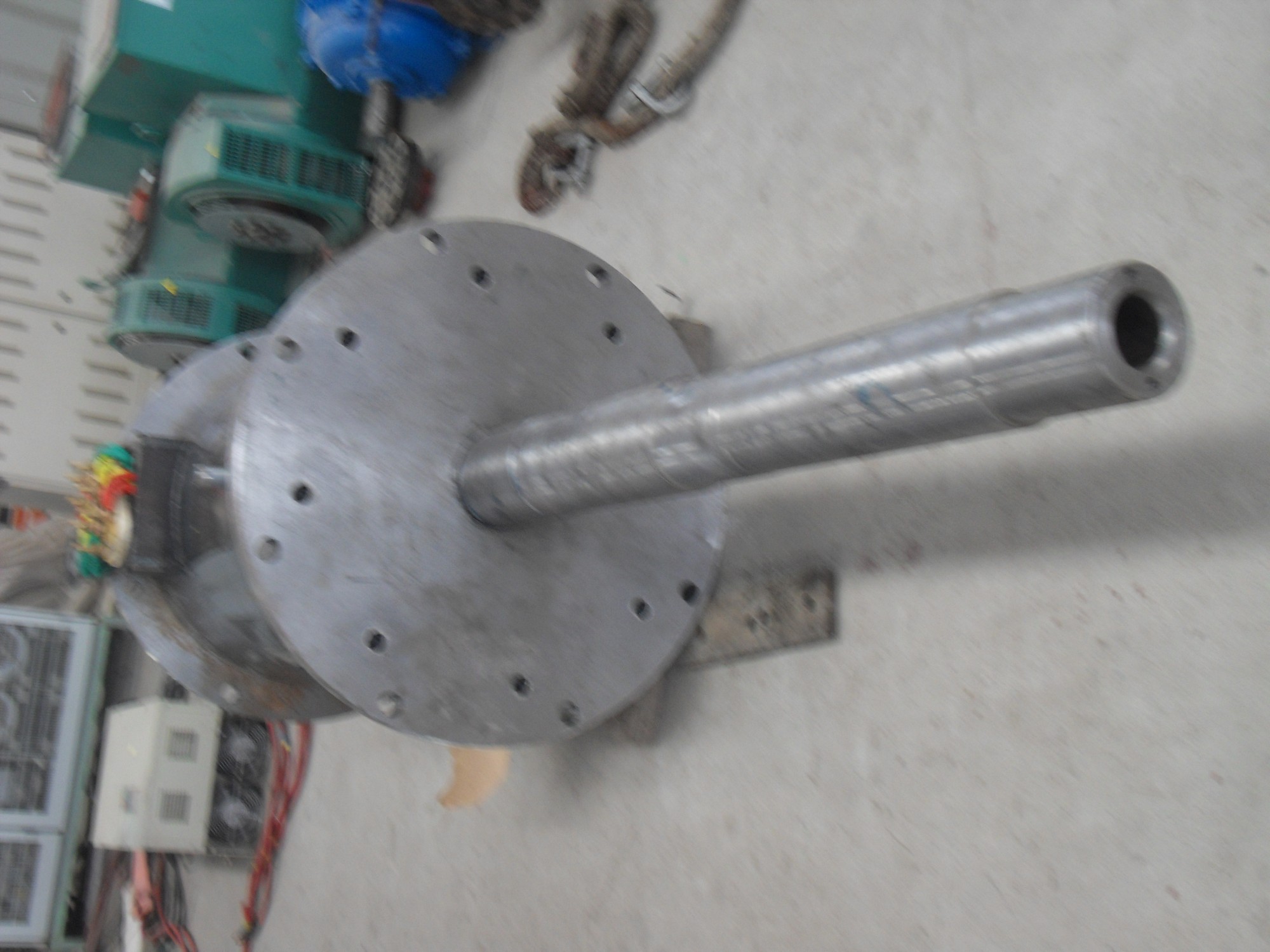

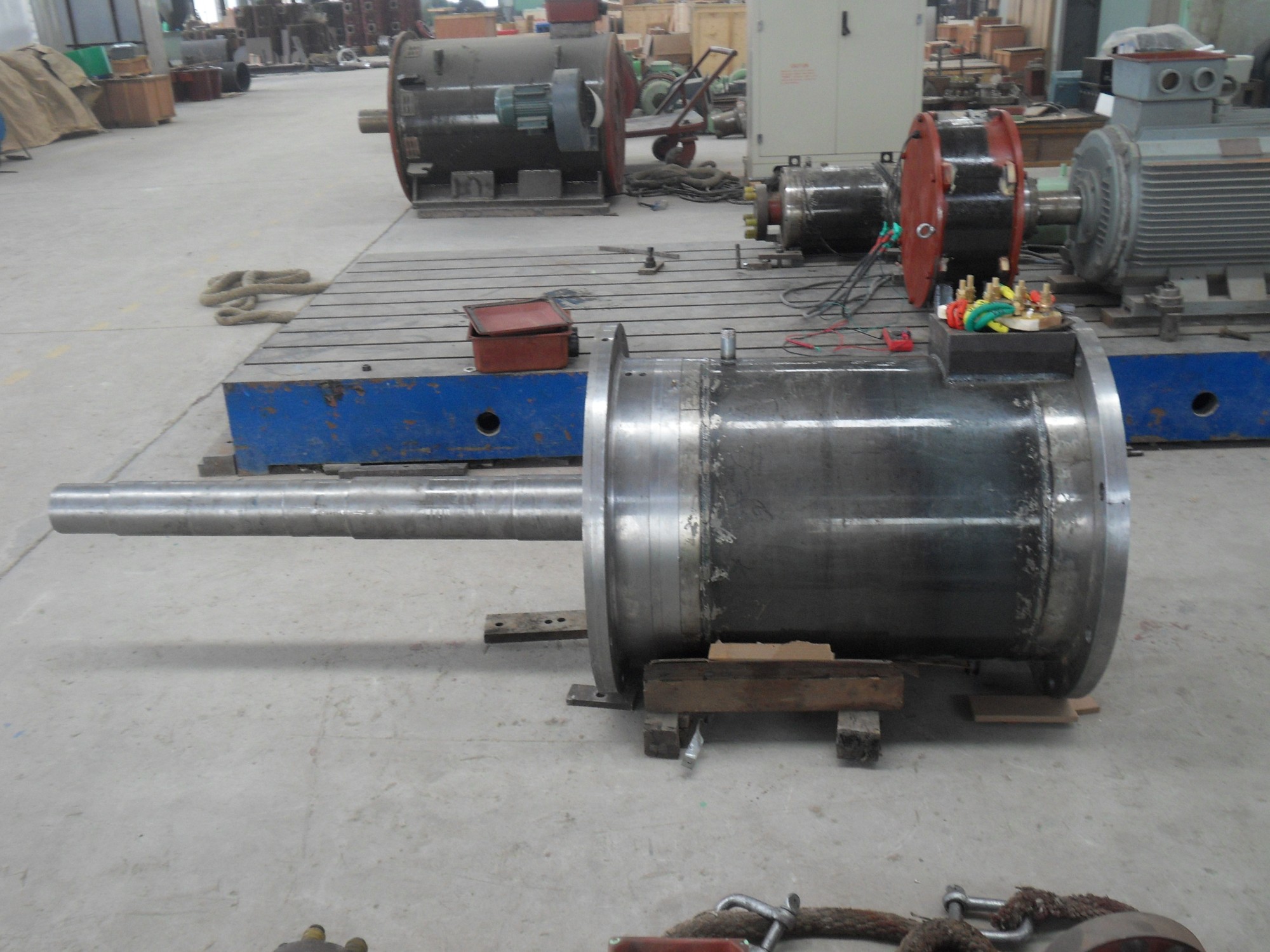

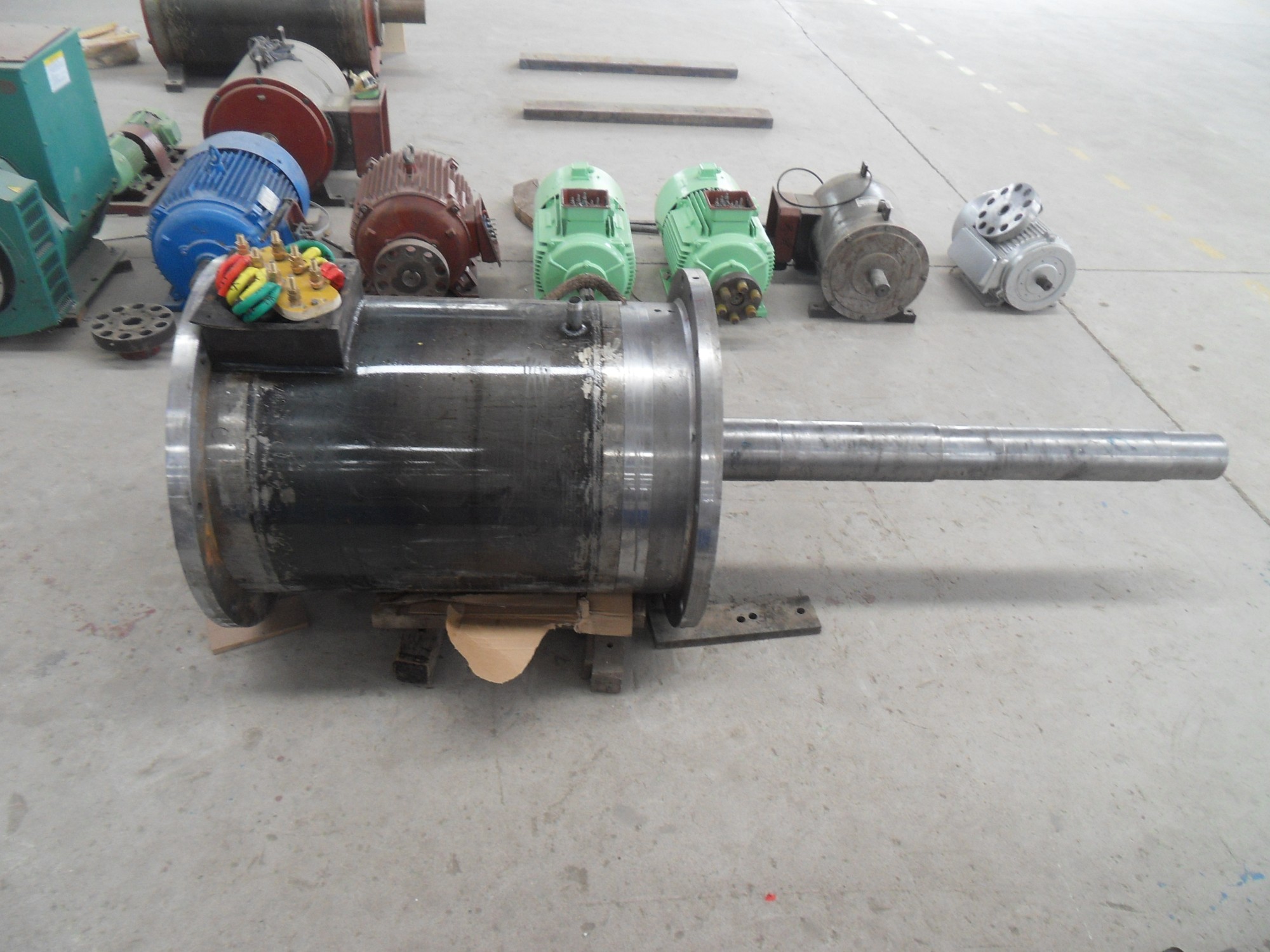

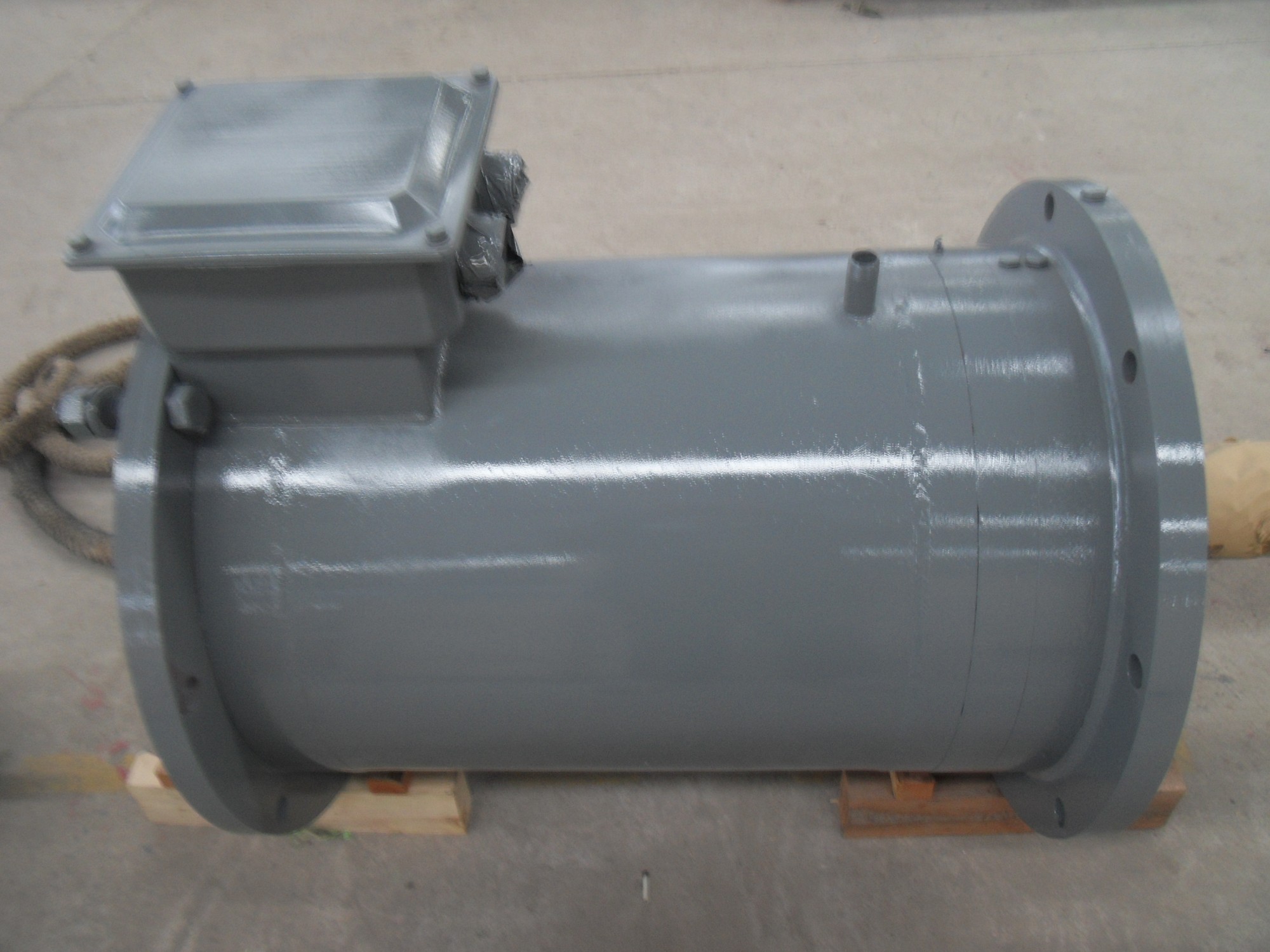

4000kw300rpm 1140V 60HZ permanent magnet generator
1 Rated power:4000kW
2 Rated speed:300RPM
3 Rated voltage:1140VAC
4 Rated current(A):2026A
Efficiency(%):96.7%
6 Winding:Y
7Poles:24 poles
8 Insult:H
9 Rated torque(Nm):128000.Nm
10 Start torque(Nm): 1000.Nm
11Temperature(ºC):90ºC
12 Maxium temperature(ºC):120ºC
163 Bearing: SKF
17 Weight:8200kg
18Design life:20 years
19 Cooling:water cooling
Features of Permanent Magnet Generator
*Low start up speed, Gearless, low RPM generator
*High standard components for use in hard and extreme Environments for wind turbine
*High efficiency low mechanical resistance energy loss
*Design for reliable long operational lifetim
4000kw300rpm 1140V 60HZ permanent magnet generator
1 Rated power:4000kW
2 Rated speed:300RPM
3 Rated voltage:1140VAC
4 Rated current(A):2026A
Efficiency(%):96.7%
6 Winding:Y
7Poles:24 poles
8 Insult:H
9 Rated torque(Nm):128000.Nm
10 Start torque(Nm): 1000.Nm
11Temperature(ºC):90ºC
12 Maxium temperature(ºC):120ºC
163 Bearing: SKF
17 Weight:8200kg
18Design life:20 years
19 Cooling:water cooling
