Description

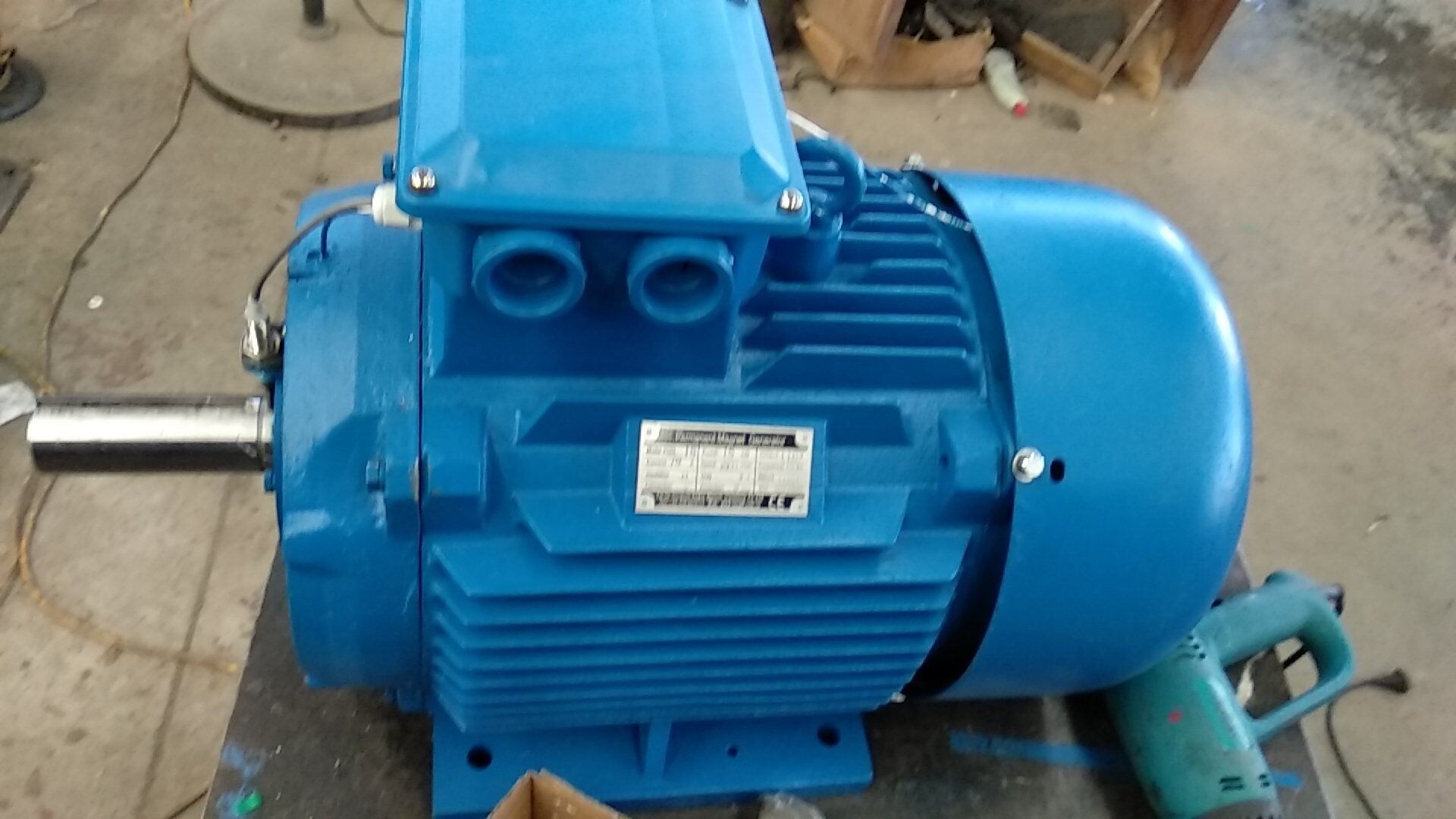

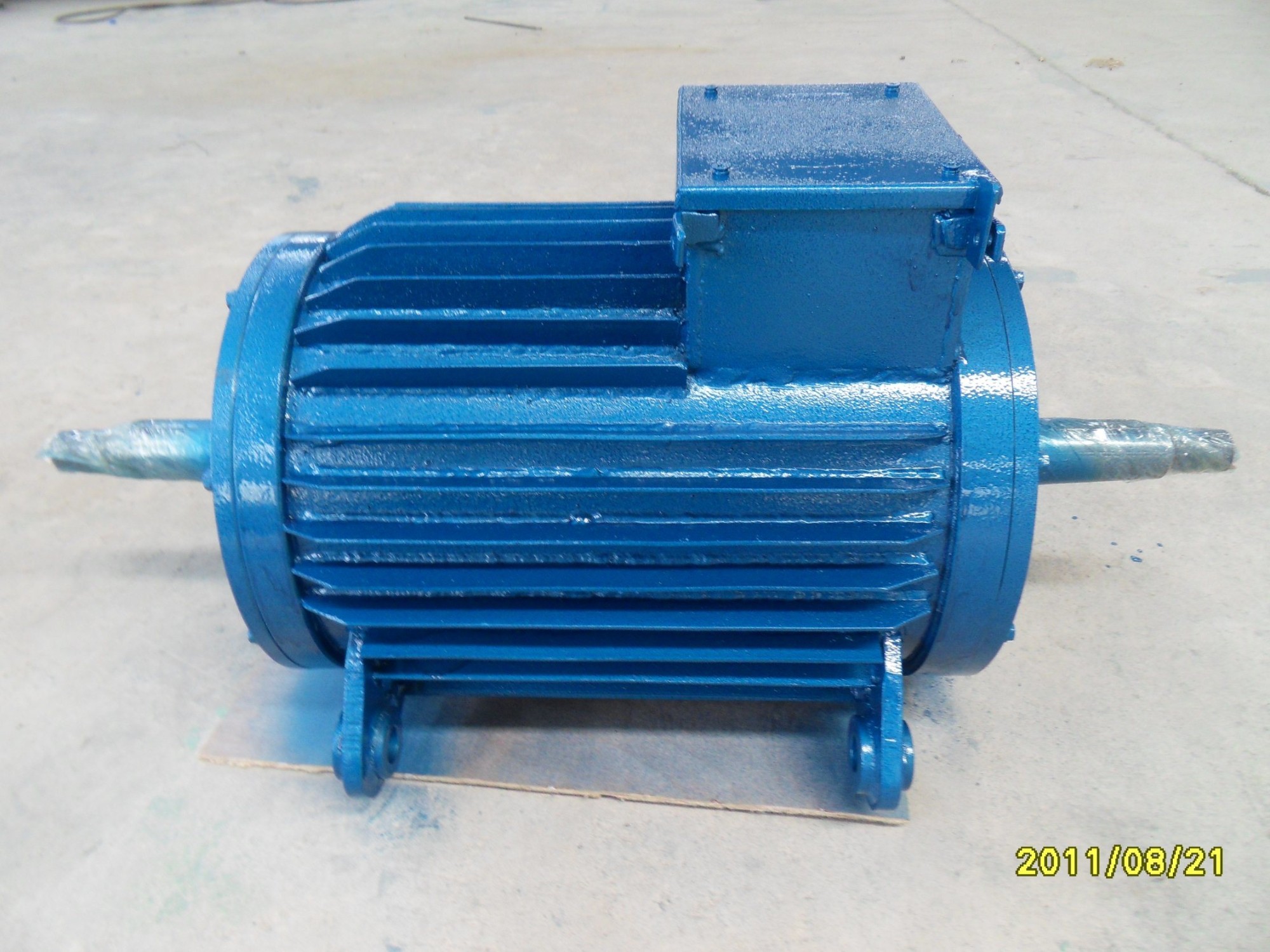

We offer various kinds of permanent magnetic generator from 0.1KW-1500KW(vertical and horizontal), speed from 30rpm-6000rpm, output voltage and speed can customize according your request
Features of Permanent Magnet Generator
*Low start up speed, Gearless, low RPM generator
*High standard components for use in hard and extreme
Environments for wind turbine
*High efficiency low mechanical resistance energy loss
*Design for reliable long operational lifetime
| Power(KW) | AC voltage(V) | speed(RPM) | Rated torque(NM) | Start torque(NM) | current(A) | efficiency | weight |
| 2 | 120 | 450 | 42.4 | 0.8 | 10.3 | 93.80% | 35kg |
