Description

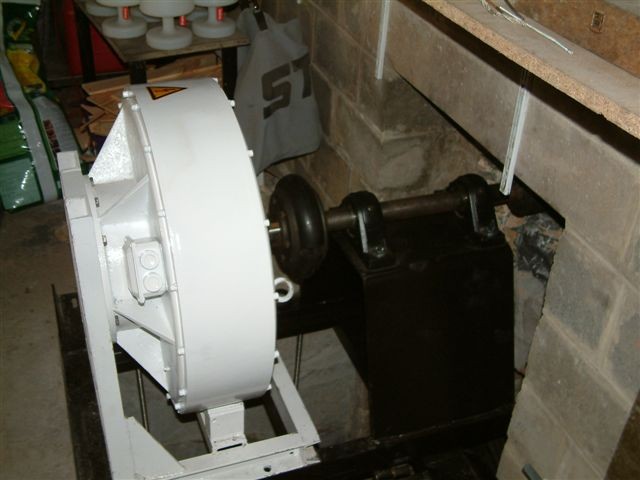

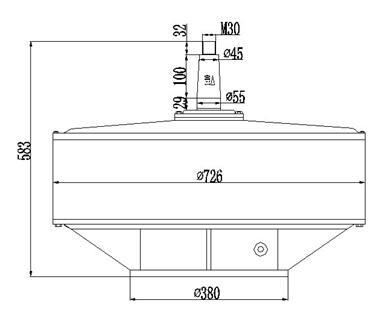

5KW50RPM Vertical Generator
• generator type: synchronous permanent magnet 3 phase AC
• magnetic steel material:38SH NdFeB • class of insulation:B
• housing material: cast iron/ aluminium • shaft material: 45# steel
• rated rotate speed:50 RPM
• rated voltage: 48VAC/96VAC/120VAC/220VAC/240VAC/360VAC/380VAC
• grade of protection: IP54 • weight:288kg(cast iron) /209kg(aluminium)
• start up torque: 15.68Nm (cast iron) / 16.66Nm (aluminium)
• rated torque at rated speed: 1346Nm
|
5KW50RPM 220V Vertical Generator Design Data |
|||||||||||
|
rpm |
5 |
10 |
15 |
20 |
25 |
30 |
35 |
40 |
45 |
50 |
55 |
|
no-load voltage（Vac） |
32 |
65 |
97 |
130 |
163 |
195 |
228 |
260 |
293 |
326 |
358 |
|
load voltage (Vac) |
24 |
48 |
72 |
95 |
118 |
140 |
162 |
182 |
202 |
221 |
240 |
|
load current (A) |
1.4 |
2.8 |
4.3 |
5.6 |
7.1 |
8.3 |
9.6 |
10.9 |
12.1 |
13.2 |
14.3 |
|
output power(W) |
57 |
233 |
524 |
924 |
1424 |
2013 |
2680 |
3415 |
4204 |
5037 |
5903 |
|
torque (Nm) |
196 |
350 |
500 |
645 |
783 |
914 |
1039 |
1149 |
1252 |
1346 |
1431 |
Remark: The design load electric resistance of above data is 9.68 Ω.
