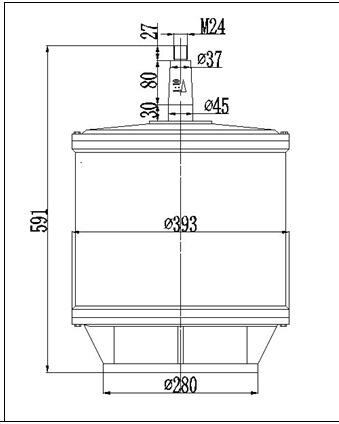

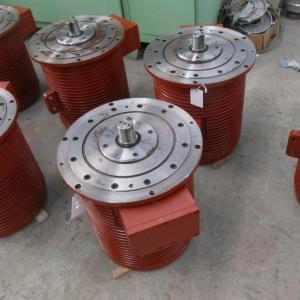

Description
Generator type: Synchronous permanent magnet 3 phase AC
Magnetic steel material: 38SH NdFeB class of insulation: B
Housing material: Cast iron/ aluminium shaft material: 45# steel
Rated rotate speed: 50 RPM
Rated voltage: 48VAC/96VAC/120VAC/220VAC/240VAC
Grade of protection: IP54 weight: 158kg (cast iron) / 129kg (aluminium)
Start up torque: 9.31Nm (cast iron) / 13.72Nm(aluminium)
Rated torque at rated speed: 554Nm
Remark: The design load electric resistance of above data is 4.6 Ω .
Magnetic steel material: 38SH NdFeB class of insulation: B
Housing material: Cast iron/ aluminium shaft material: 45# steel
Rated rotate speed: 50 RPM
Rated voltage: 48VAC/96VAC/120VAC/220VAC/240VAC
Grade of protection: IP54 weight: 158kg (cast iron) / 129kg (aluminium)
Start up torque: 9.31Nm (cast iron) / 13.72Nm(aluminium)
Rated torque at rated speed: 554Nm
Remark: The design load electric resistance of above data is 4.6 Ω .
| 2KW50RPM 96V Vertical Generator Design Data | |||||||||||
| rpm | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 55 |
| no-load voltage ( Vac ) | 14 | 28 | 42 | 56 | 70 | 84 | 98 | 112 | 126 | 140 | 154 |
| load voltage (Vac) | 10 | 20 | 30 | 40 | 49 | 59 | 69 | 78 | 88 | 97 | 106 |
| load current (A) | 1.2 | 2.5 | 3.7 | 5 | 6.2 | 7.4 | 8.6 | 9.8 | 11 | 12.1 | 13.3 |
| output power(W) | 21 | 84 | 189 | 335 | 523 | 750 | 1016 | 1319 | 1657 | 2030 | 2435 |
| torque (Nm) | 61 | 119 | 176 | 233 | 289 | 345 | 399 | 452 | 504 | 554 | 604 |
