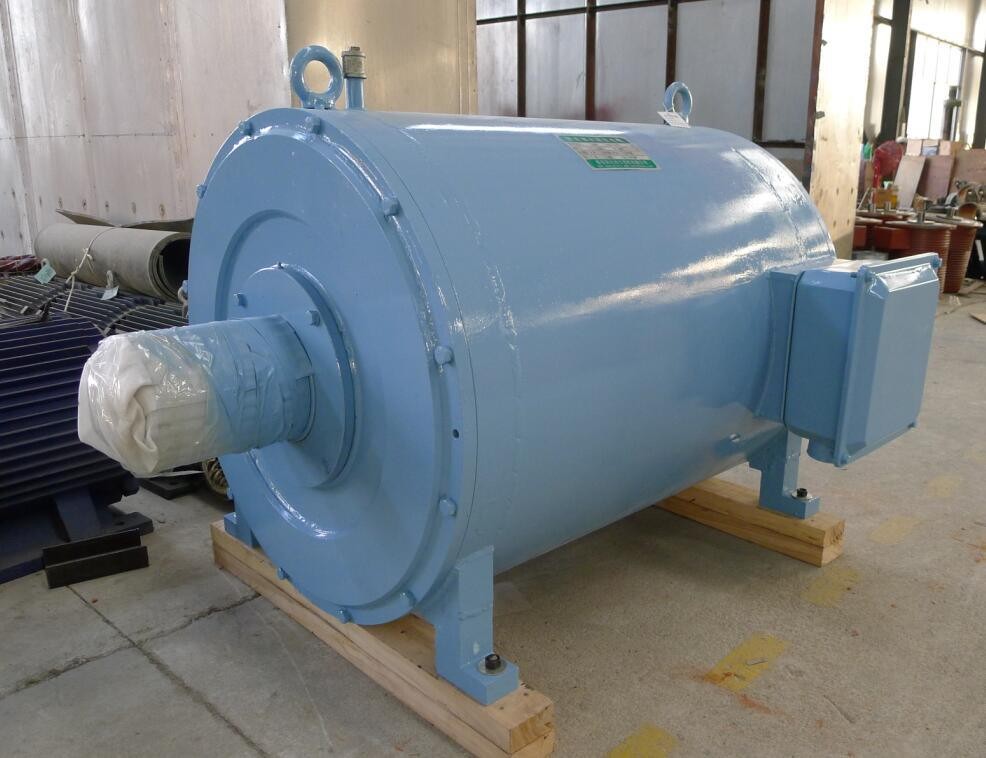

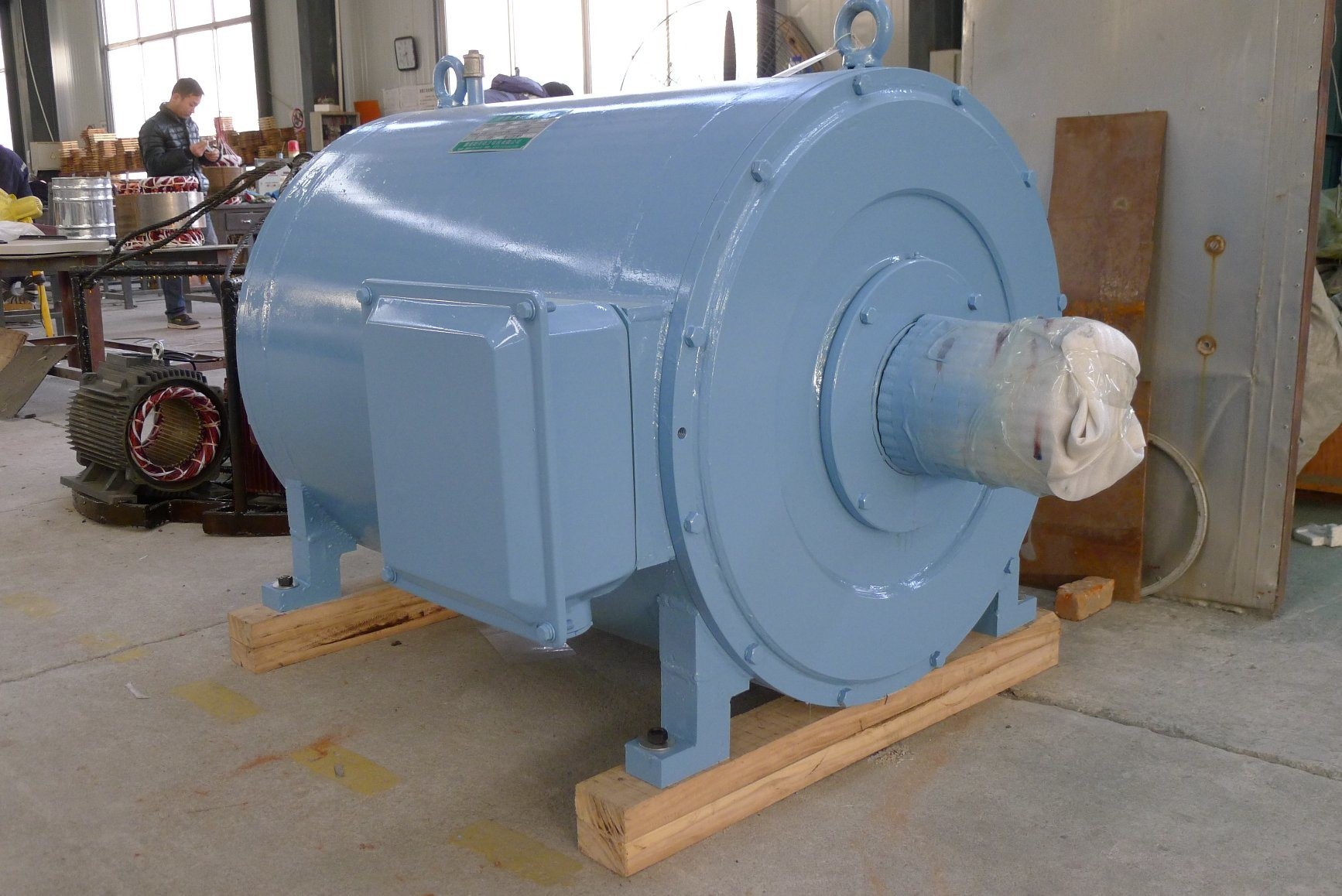

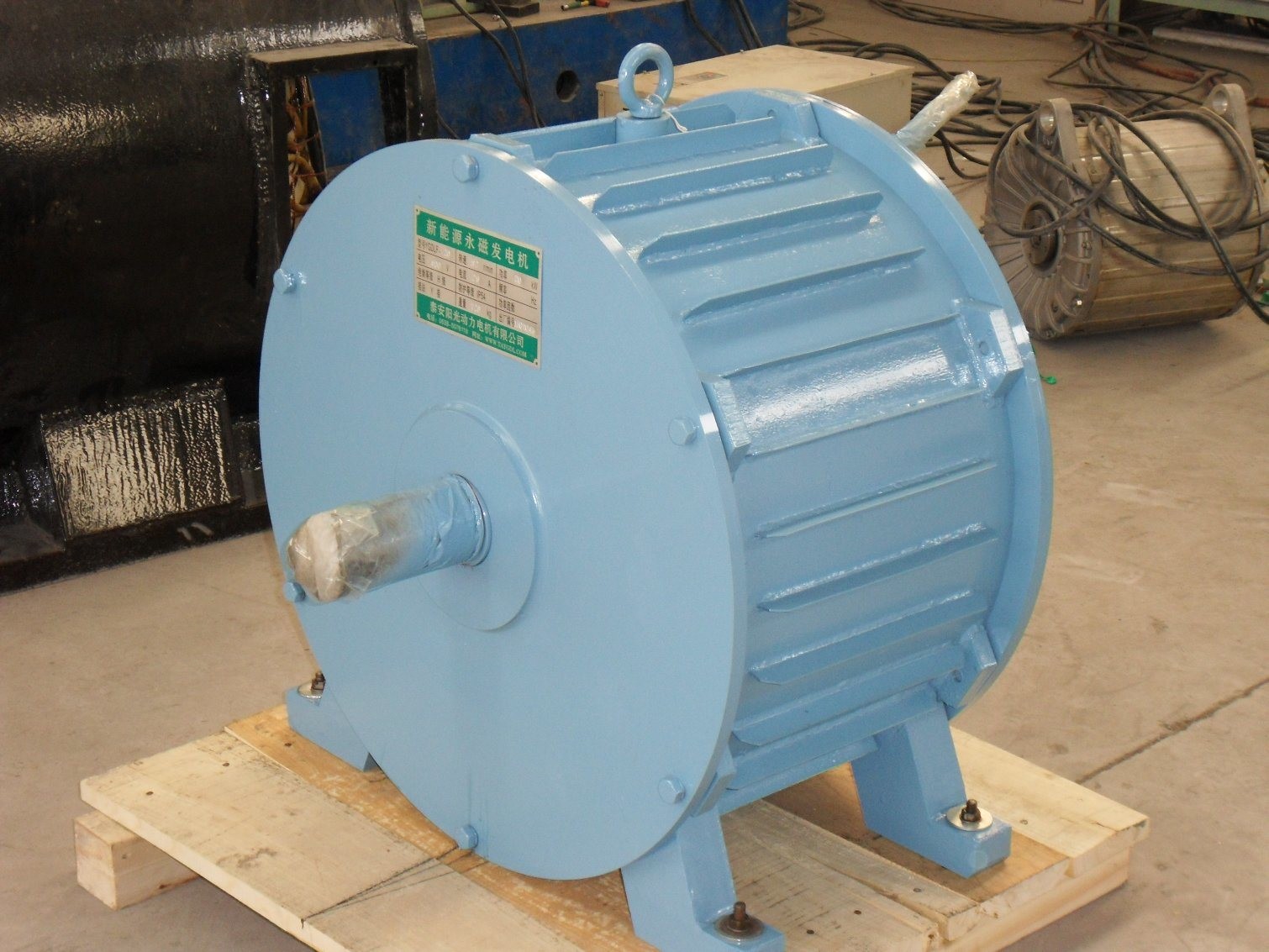

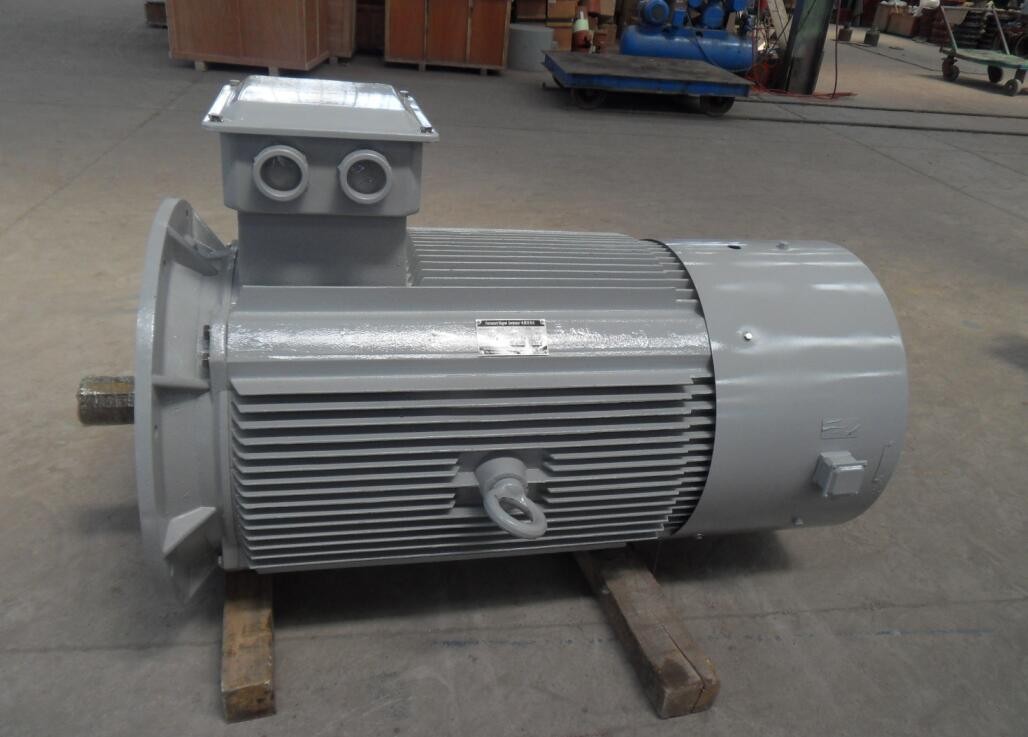

Micro Hydro Power Water Turbine Permanent Magnet Generator (1kw-3000kw) 50Hz

Micro Hydro Power Water Turbine Permanent Magnet Generator (1kw-3000kw) 50Hz

Description

low speed Permanent Magnet Generator use for hydro turbine, wind turbine, gas engine and so on

Power	AC voltage	speed	poles	frequency	Rated torque	current	efficiency	weight
12 kw	400V	250rpm	24	50Hz	460Nm	16.9A	93.8%	260kg
24 kw	400V	500rpm	12	50Hz	460Nm	34A	93.8%	260kg
Power	AC voltage	speed	poles	frequency	Rated torque	current	efficiency	weight
15 kw	400V	214rpm	28	50Hz	670Nm	21A	93.8%	320kg
30 kw	400V	428rpm	14	50Hz	670Nm	42A	93.8%	320kg
Power	AC voltage	speed	poles	frequency	Rated torque	current	efficiency	weight
20 kw	400V	187.5rpm	32	50Hz	1020Nm	29A	93.8%	420kg
40 kw	400V	375rpm	16	50Hz	1020Nm	58A	93.8%	420kg
Power	AC voltage	speed	poles	frequency	Rated torque	current	efficiency	weight
30 kw	400V	187.5rpm	32	50Hz	1530Nm	43A	93.8%	720kg
60 kw	400V	375rpm	16	50Hz	1530Nm	86A	93.8%	720kg
Power	AC voltage	speed	poles	frequency	Rated torque	current	efficiency	weight
35 kw	400V	125rpm	48	50Hz	2700Nm	51A	93.8%	1260kg
70 kw	400V	250rpm	24	50Hz	2700Nm	102A	93.8%	1260kg
105 kw	400V	375rpm	16	50Hz	2700Nm	153A	93.8%	1260kg
140 kw	400V	500rpm	12	50Hz	2700Nm	204A	93.8%	1260kg
Power	AC voltage	speed	poles	frequency	Rated torque	current	efficiency	weight
80 kw	400V	125rpm	48	50Hz	6120Nm	116A	93.8%	1680kg
160 kw	400V	250rpm	24	50Hz	6120Nm	232A	93.8%	1680kg
200 kw	400V	375rpm	16	50Hz	6120Nm	288A	93.8%	1680kg
320 kw	400V	500rpm	12	50Hz	6120Nm	461A	93.8%	1680kg
Power	AC voltage	speed	poles	frequency	Rated torque	current	efficiency	weight
100 kw	400V	125rpm	48	50Hz	7650Nm	144A	93.8%	2800kg
200 kw	400V	250rpm	24	50Hz	7650Nm	288A	93.8%	2800kg
300 kw	400V	375rpm	16	50Hz	7650Nm	432A	93.8%	2800kg
400 kw	400V	500rpm	12	50Hz	7650Nm	576A	93.8%	2800kg
Power	AC voltage	speed	poles	frequency	Rated torque	current	efficiency	weight
150 kw	400V	125rpm	48	50Hz	11500Nm	216A	93.8%	3900kg
300 kw	400V	250rpm	24	50Hz	11500Nm	432A	93.8%	3900kg
450 kw	400V	375rpm	16	50Hz	11500Nm	648A	93.8%	3900kg
600 kw	400V	500rpm	12	50Hz	11500Nm	864A	93.8%	3900kg
Power	AC voltage	speed	poles	frequency	Rated torque	current	efficiency	weight
200 kw	400V	125rpm	42	50Hz	15300Nm	288A	93.8%	5200kg
600 kw	400V	375rpm	14	50Hz	15300Nm	864A	93.8%	5200kg
