Description
We also offer various kind of other small hydro turbine generator, jsut inform us your water head and flow
Axial flow tubine generator

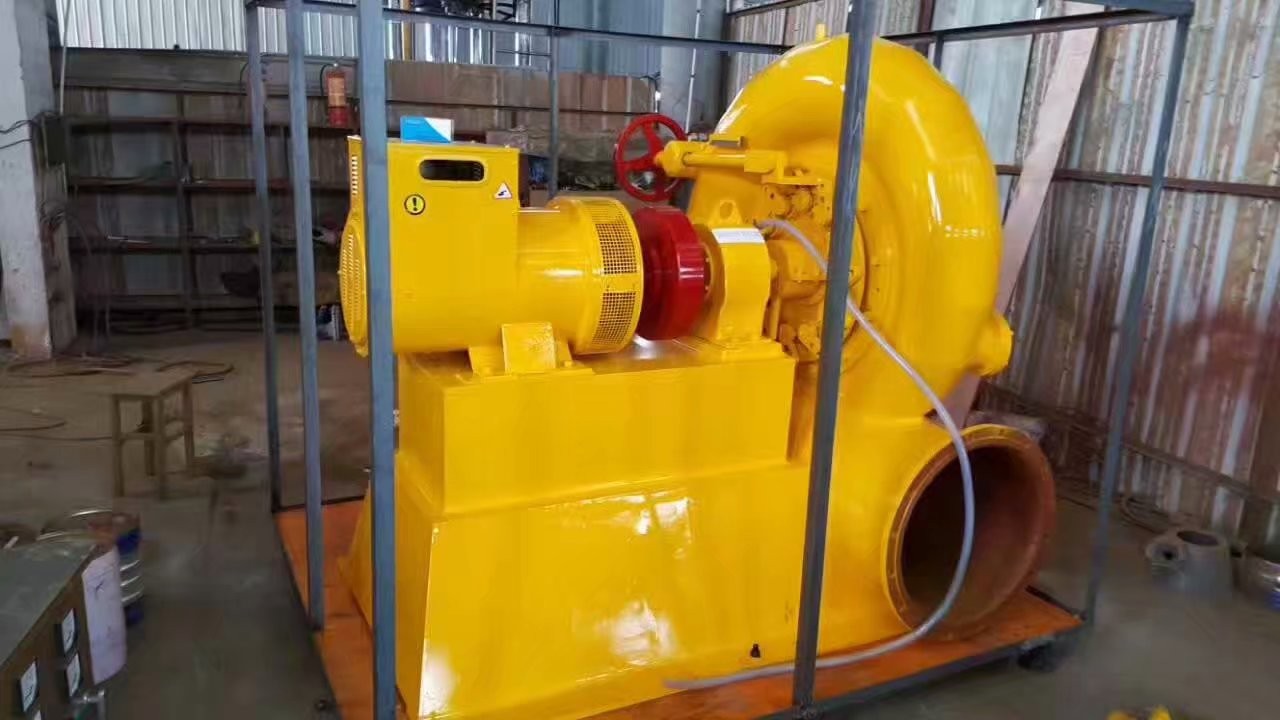

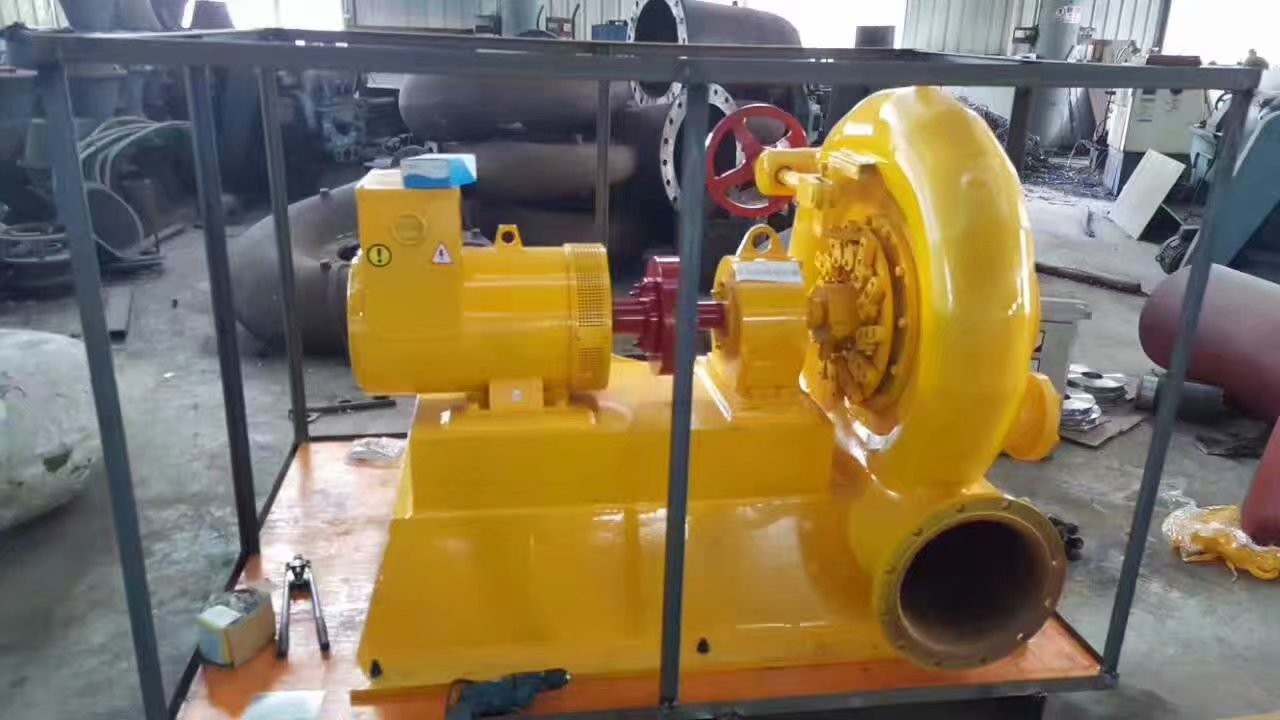

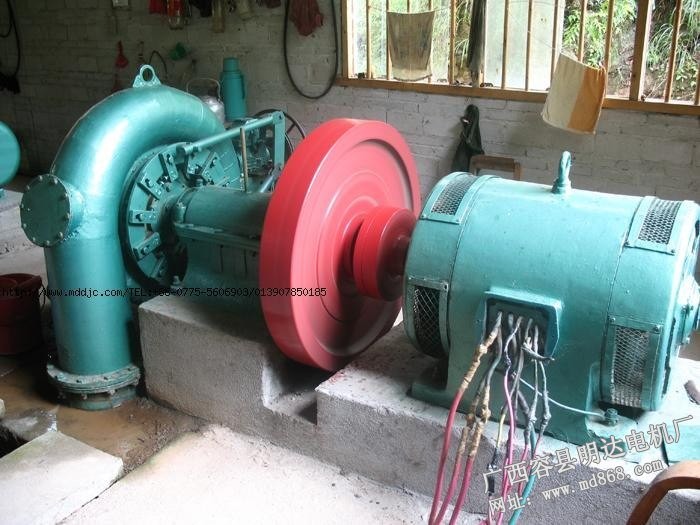

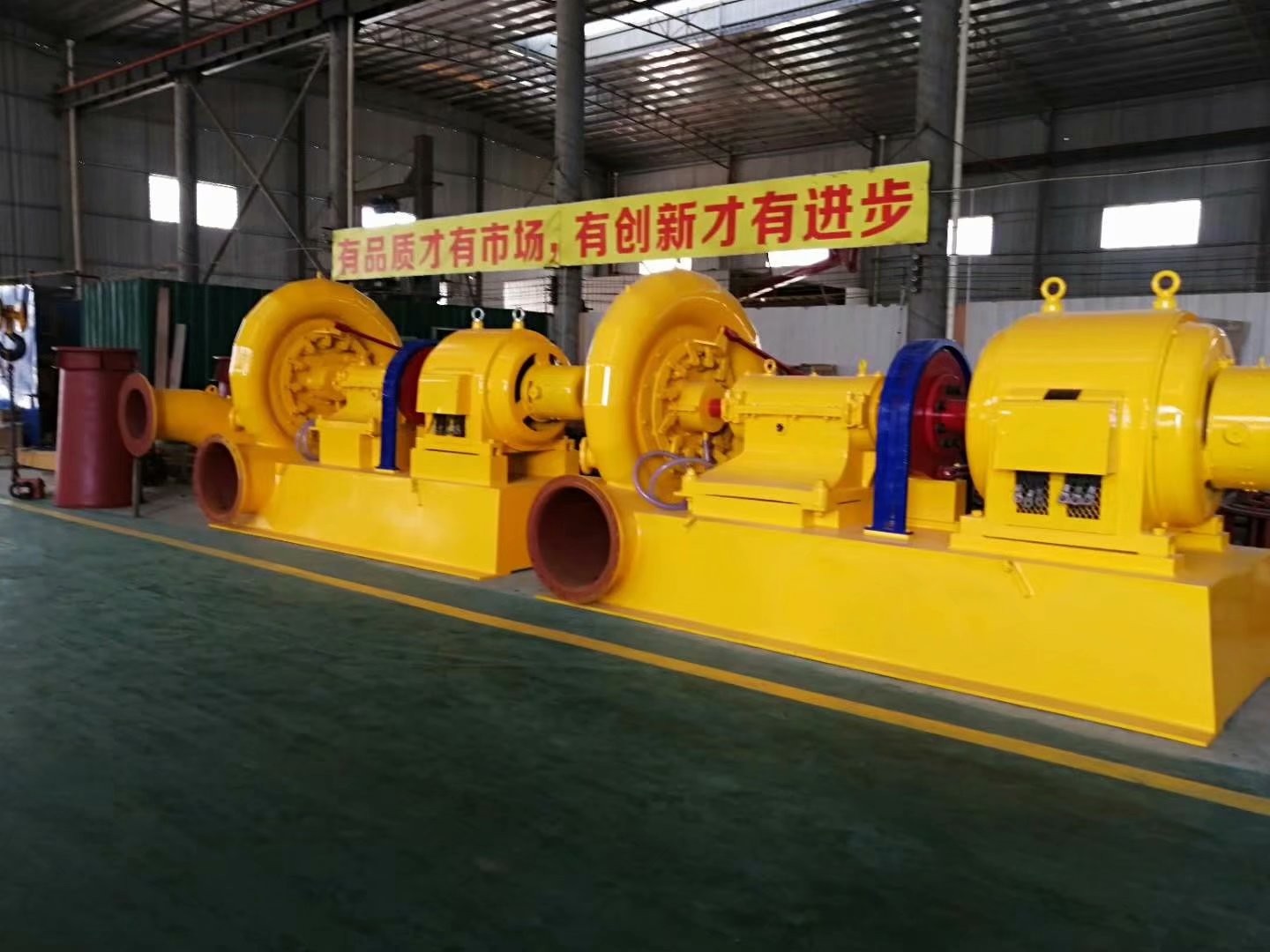

Francis Turbine Generator
Pelton Turbine Generator
Inclined-jet hydro turbine generator
Cross flow water turbine generator
Tubular water turbine generator
Impulse type water generator
Low speed Permanent Magnet Generator
|
Power (kW) |
Water head (m) |
Flow Rate (m 3 /s) |
Speed (r/min) |
Penstock pipe diameter(mm) |
| 10KW | 12 | 0.15 | 1000 | 350mm |
| 15KW | 22 | 0.1 | 1000 | 350mm |
| 20KW | 23 | 0.15 | 1000 | 400mm-500mm |
| 30KW | 30 | 0.18 | 1000 | 400-500mm |
| 40KW | 16 | 0.4 | 1000 | 500-600mm |
| 50KW | 18 | 0.5 | 1000 | 700mm |
