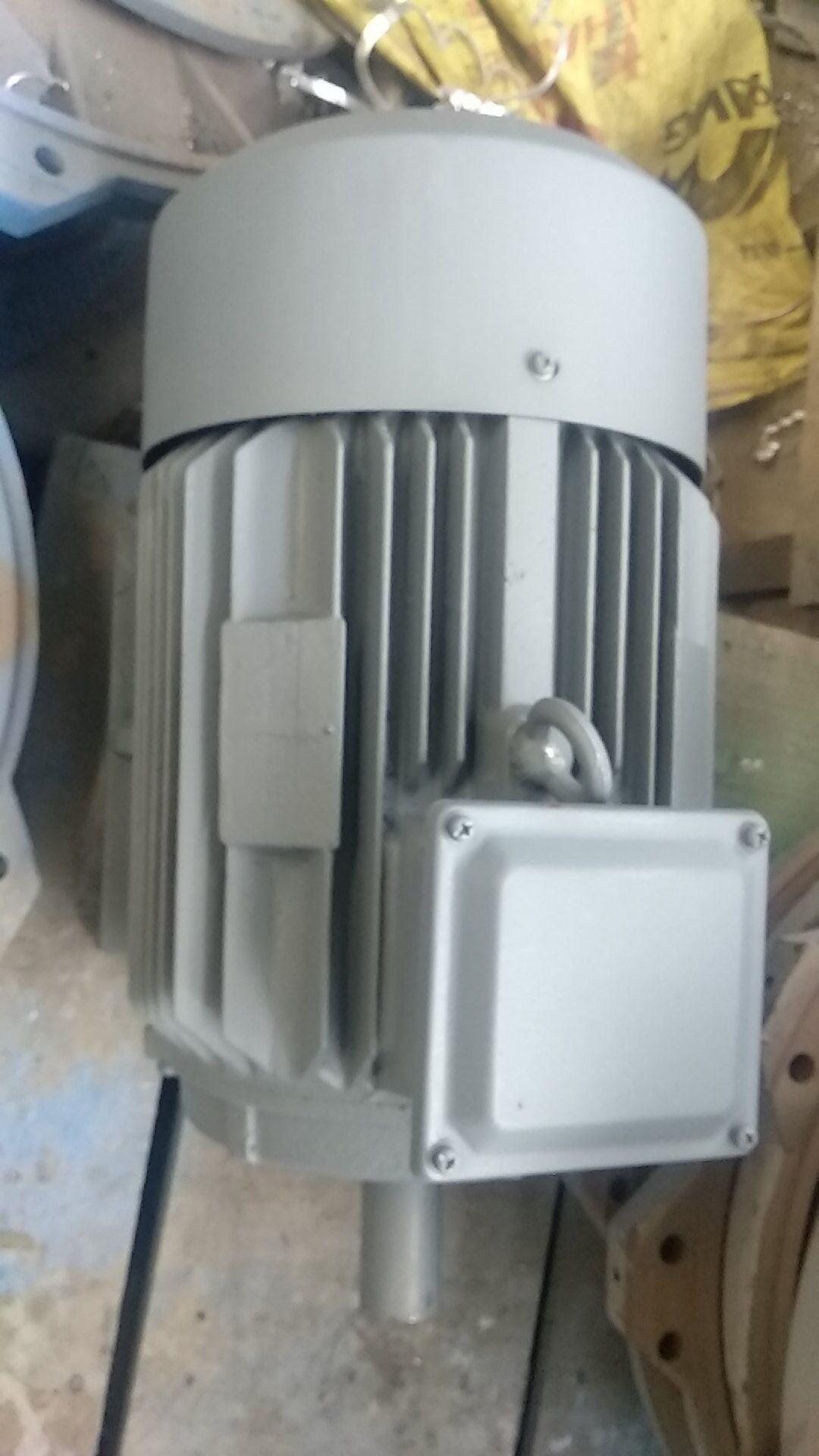

3kw 6000rpm High Speed Permanent Magnet Generator

high speed generator motor  , turbine generator motor  , industrial compressors motor  , oil and gas compressors motor  , HVAC compressors motor  , laser and fuel cell cooling systems Rail transit  , papermaking motor  , sewage treatment motor  , pharmaceuticals motor  , evaporation and crystallization motor  , waste heat power generation  , new energy vehicles motor  , turbine steam turbines generator  , gas turbines generation  , ORC generator system
Inquiry Send Email

Description

High-speed machines allow for a directly driven high-speed system, eliminating the low-speed motor-gearbox arrangement to provide a high-speed drive shaft output. A high-speed generator can directly drive, or be driven by, a high-speed turbine, compressor or other turbomachinery. High-speed machines offer significant reduction in motor generator size, as well as reduced motor generator cost and simplified integration. Integration of these small, highly efficient machines into the coupled equipment further reduces cost and complexity

Speed can from 3000rpm to 15000rpm
Power Voltage Speed Current factor Efficiency Rated Torque Peak torque Model no Length
3 kw 220V 6000RPM 8.65A 0.98 91.6% 4.78Nm 9.5Nm Y80-4L 295
