Description
Water head: 50 m, flow rate: 175 l / sec can be installed power: 50KW

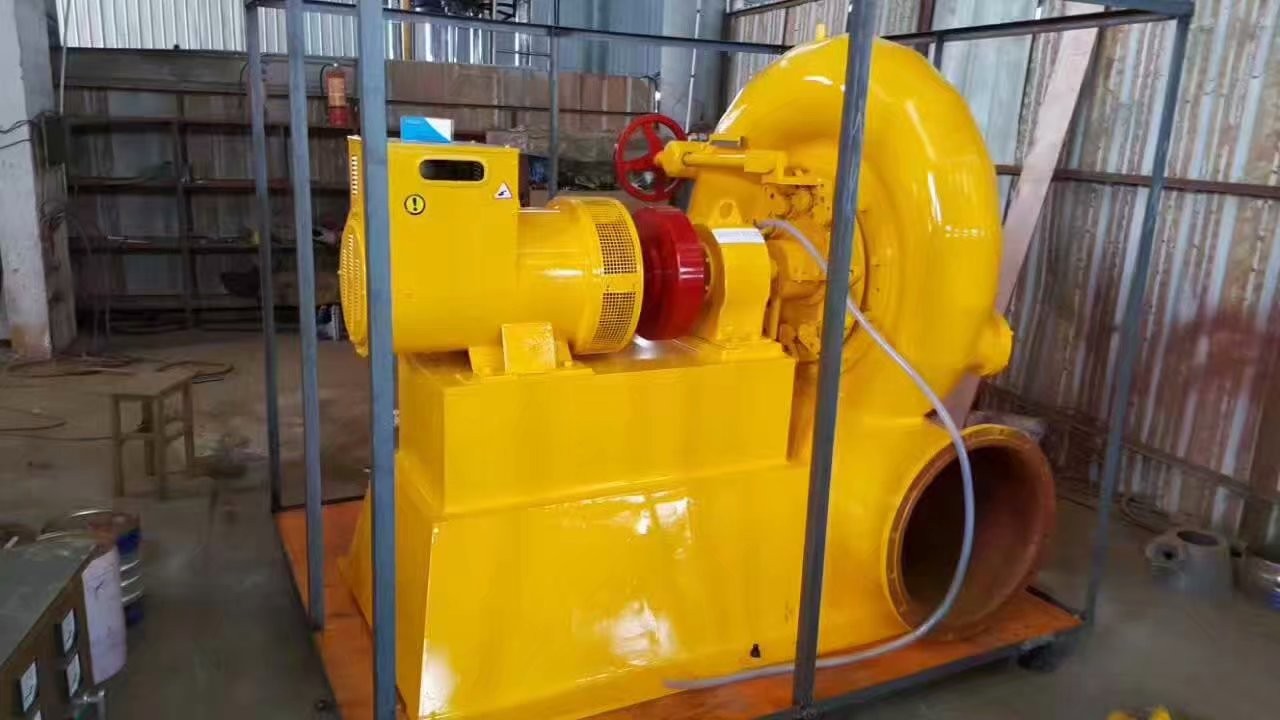

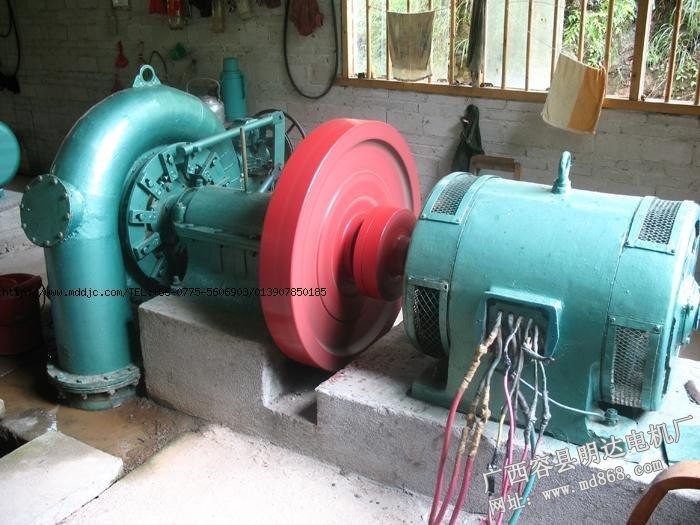

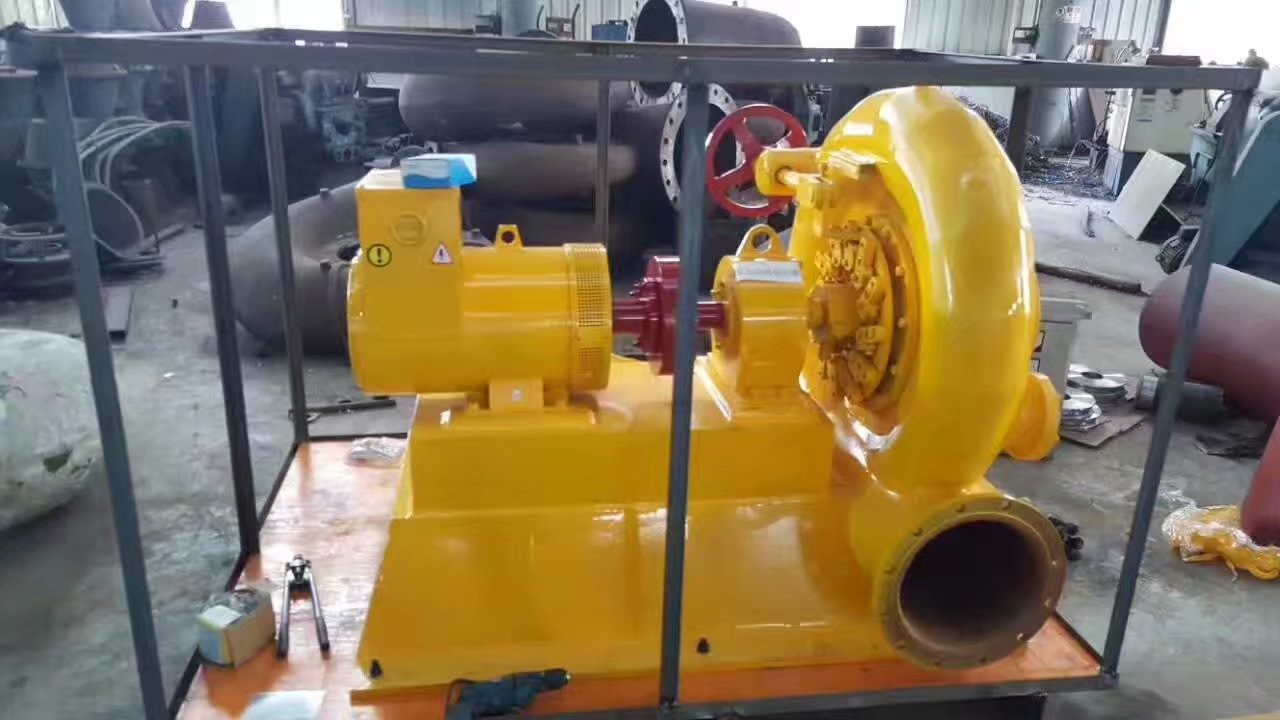

System include turbines, generators, draft tube, butterfly control valve, the
Control box

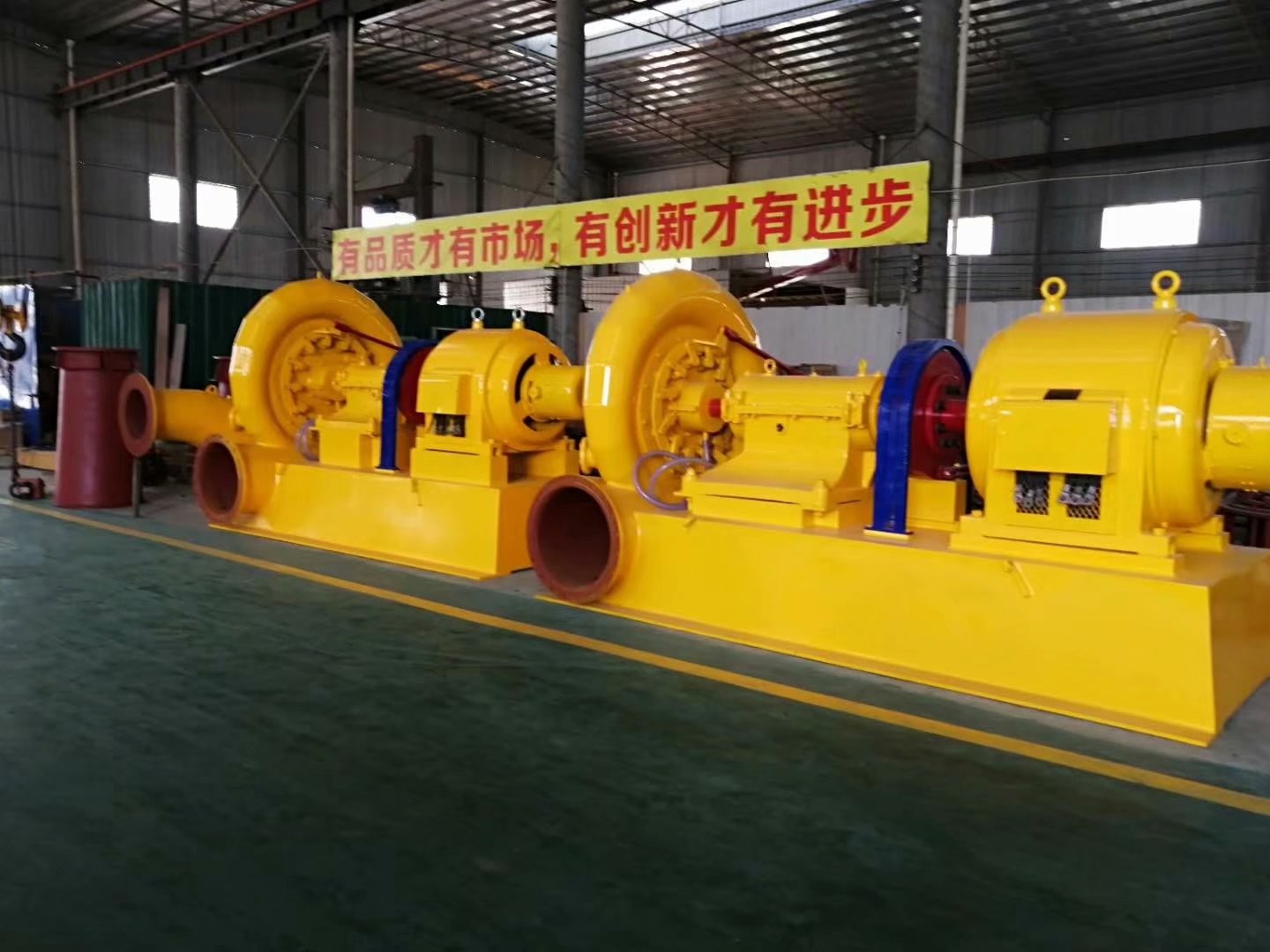

Three units require the installation of pressure pipe diameter: 300 mm.
System include turbines, generators, draft tube, butterfly control valve, the
Control box
Three units require the installation of pressure pipe diameter: 300 mm.
| Turbine |
|
|
|
|
|
Genertaor |
|
|
|
||
|
|
Water head |
|
Rated speed r/min | Model | powe r KW | Rated voltg e V | Rated current A | Rate d spee d r/mi n | Inlet valve( mm) |
|
|
| flow / | power KW | ||||||||||
|
XJ02-W-32/1*9 |
50 | 175 | 30 | 1000 |
SFW50-8/493 |
50 | 380 | 54 | 750 | 300 |
|
