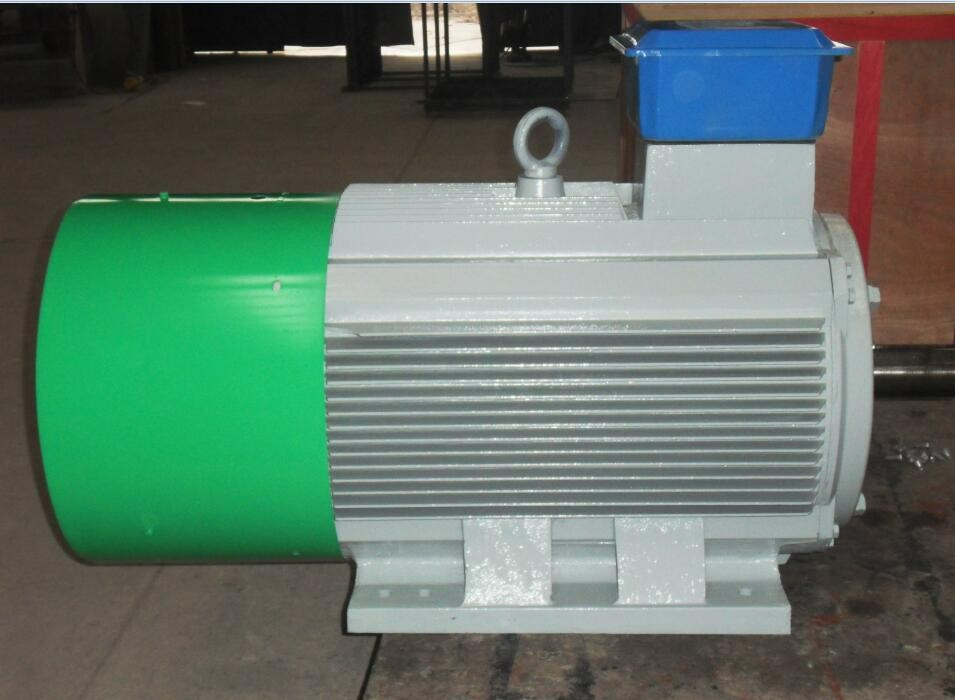

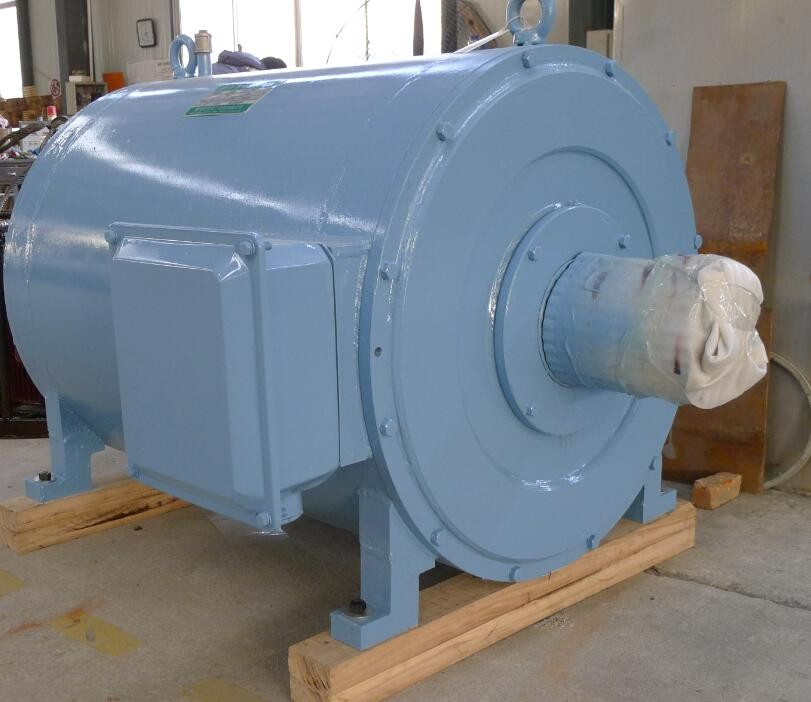

Description
3.1 Rated Power: 530kW
3.2 Rated speed: 375RPM
3.3 Rated voltage: 400VAC
3.4 Rated current (A): 765A
3.5 phase resistance (Ω):. 0 .0059Ω (120 ℃), 0.0043Ω (20 ℃)
3.6 generator line size (mm): 4-way, 38Xφ1.3
Efficiency (%) 3.7 The rated speed: 95.2%
3.8 winding way: Star, Y connection
3.9 Insulation resistance (MΩ): greater than 20 MΩ
3.10 generator poles: 16
3.11 Pressure resistance (Ma): less than 160mA
3.12 Insulation Class: H level
3.13 Starting torque (Nm): 190.Nm
3.14 Rated Torque (Nm): 13680.Nm
3.15 less than the number of degrees warming generator (℃): 90 ℃
3.16 Maximum Operating Temperature (℃): 130 ℃
3.17 generator diameter (mm): See installation diagram
3.18 generator shaft diameter (mm): See installation diagram
3.19 Housing material: cast iron
3.20 motor shaft material: high-quality carbon steel
3.21 bearing the brand and model: SKF
3.22 Net weight:1900kg
Life:20years
