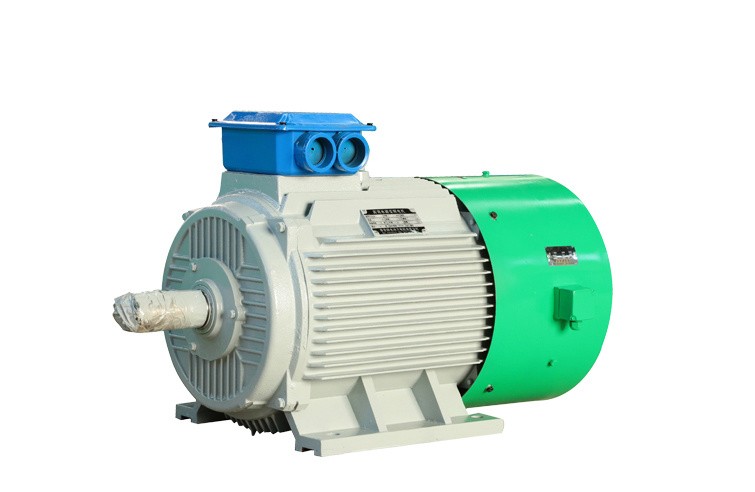

10000rpm High Speed Permanent Magnet Brushless Motor

high speed generator motor  , turbine generator motor  , industrial compressors motor  , oil and gas compressors motor  , HVAC compressors motor  , laser and fuel cell cooling systems Rail transit  , papermaking motor  , sewage treatment motor  , pharmaceuticals motor  , evaporation and crystallization motor  , waste heat power generation  , new energy vehicles motor  , turbine steam turbines generator  , gas turbines generation  , ORC generator system
Inquiry Send Email

Description

The motor speed, voltage, power can be customized according to the requirements, but its better to be no more than 15, 000 speed. The highest speed we can do is 24000rpm, The motor can be made as wind cooling or water cooling, AC or DC. The front cover of the motor could have flange front edge, the size and the output shaft can also be customized.
power voltage speed Rated torque Peak torque Peak power current Current peak Efficiency weight Chassis size
7kw 380V 12000 5.6Nm 10Nm 15KW 12A 25A 93.5% 18kg Y90-120
10 kw 380V 15000 6.4Nm 12Nm 20KW 17.1A 35A 93.5% 18kg Y90-120
10 kw 380V 10000 9.6Nm 20Nm 20KW 17.1A 35A 93.5% 19kg Y90-130
10 kw 228V 8100 11.8Nm 30Nm 20KW 38.4A 100A 93.5% 19kg Y90-130
