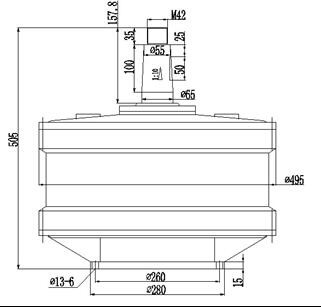

Description
• generator type: synchronous permanent magnet 3 phase AC
• magnetic steel material:38SH NdFeB • class of insulation:B
• housing material: aluminium • shaft material: 45# steel
• rated rotate speed:100 RPM
• rated voltage: 48VAC/96VAC/120VAC/220VAC/240VAC/360VAC/380VAC
• grade of protection: IP54 • weight:120kg
• start up torque: 11.74Nm • rated torque at rated speed: 576Nm
|
5KW100RPM 380V Vertical Generator Design Data |
|||||||||||
|
rpm (r/min) |
10 |
20 |
30 |
40 |
50 |
60 |
70 |
80 |
90 |
100 |
110 |
|
no-load voltage（Vac） |
47 |
94 |
141 |
188 |
235 |
282 |
329 |
376 |
423 |
470 |
517 |
|
load voltage (Vac) |
39 |
79 |
119 |
157 |
196 |
234 |
272 |
309 |
349 |
382 |
417 |
|
load current (A) |
0.8 |
1.5 |
2.3 |
3.1 |
3.9 |
4.7 |
5.4 |
6.1 |
6.9 |
7.6 |
8.3 |
|
output power (KW) |
0.053 |
0.21 |
0.48 |
0.85 |
1.33 |
1.89 |
2.56 |
3.308 |
4.137 |
5.041 |
6.13 |
|
torque (Nm) |
63 |
125 |
186 |
249 |
305 |
362 |
418 |
473 |
525 |
576 |
624 |
Remark: The design load electric resistance of above data is 28.9 Ω.
