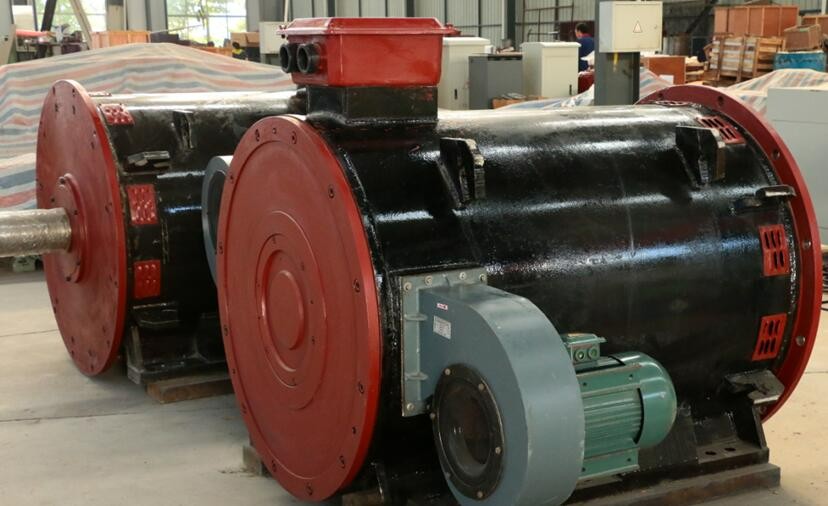

Description
Technical Parameters
|
No.
|
Parameter
|
Units
|
Data
|
|
1
|
Rated output power
|
KW
|
100
|
|
2
|
Rated speed
|
RPM
|
30
|
|
3
|
Rated output voltage
|
VAC
|
400
|
|
4
|
Rated current
|
A
|
145
|
|
5
|
Poies
|
|
48
|
|
6
|
Rated frequency
|
HZ
|
12
|
|
7
|
Efficiency at rated speed
|
|
＞91.9%
|
|
8
|
Winding type
|
|
Y
|
|
9
|
Insulation resistance
|
|
20 MΩ
|
|
10
|
Insulation
|
|
H class
|
|
11
|
Rated torque
|
Nm
|
34982
|
|
12
|
Start torque
|
Nm
|
＜700
|
|
13
|
Temperature rise
|
°C
|
90
|
|
14
|
Max.working temperature
|
°C
|
130
|
|
15
|
Housing material
|
|
铸铁
|
|
16
|
Shaft material
|
|
优质碳素钢
|
|
17
|
Bearing
|
|
SKF
|
|
18
|
Weight
|
Kg
|
4900
|
