Description

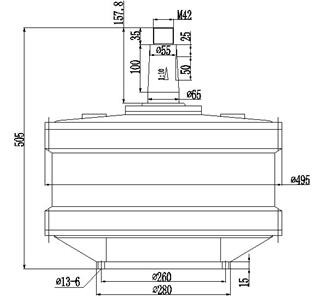

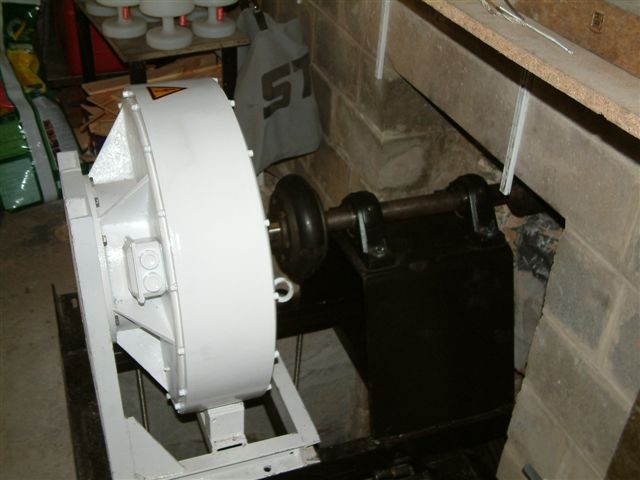

generator type: synchronous permanent magnet 3 phase AC
• magnetic steel material:38SH NdFeB • class of insulation:B
• housing material: aluminium • shaft material: 45# steel
• rated rotate speed:100 RPM
• rated voltage: 48VAC/96VAC/120VAC/220VAC/240VAC/360VAC/380VAC
• grade of protection: IP54 • weight:113kg
• start up torque: 6.86Nm
• rated torque at rated speed: 380Nm
|
3KW100RPM 380V Vertical Generator Design Data |
|||||||||||
|
rpm (r/min) |
10 |
20 |
30 |
40 |
50 |
60 |
70 |
80 |
90 |
100 |
110 |
|
no-load voltage（Vac） |
51 |
103 |
155 |
207 |
259 |
311 |
363 |
415 |
467 |
519 |
571 |
|
load voltage (Vac) |
40 |
80 |
120 |
159 |
198 |
237 |
274 |
311 |
348 |
383 |
417 |
|
load current (A) |
0.5 |
0.9 |
1.4 |
1.9 |
2.3 |
2.8 |
3.3 |
3.7 |
4.1 |
4.6 |
5.1 |
|
output power (KW) |
0.03 |
0.13 |
0.29 |
0.52 |
0.81 |
1.16 |
1.56 |
2.01 |
2.51 |
3.04 |
3.62 |
|
torque (Nm) |
43 |
84 |
125 |
165 |
204 |
242 |
279 |
314 |
348 |
380 |
410 |
Remark: The design load electric resistance of above data is 48.1 Ω.
