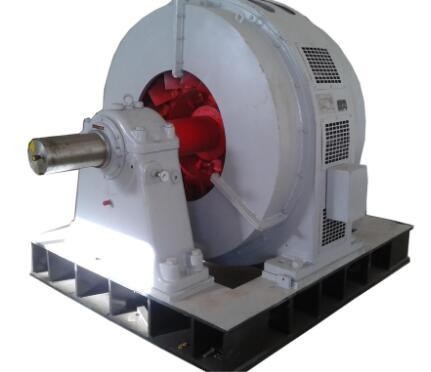

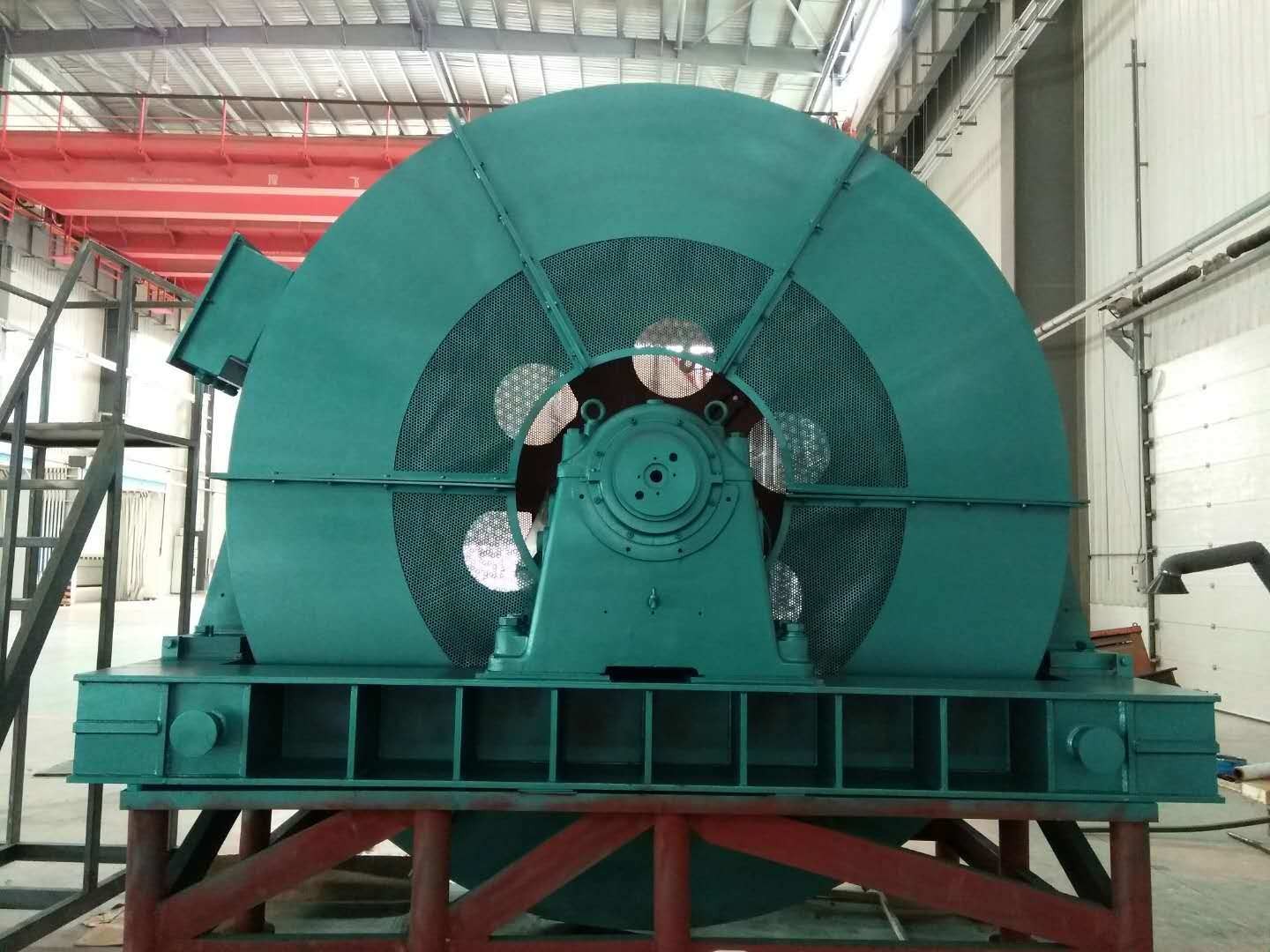

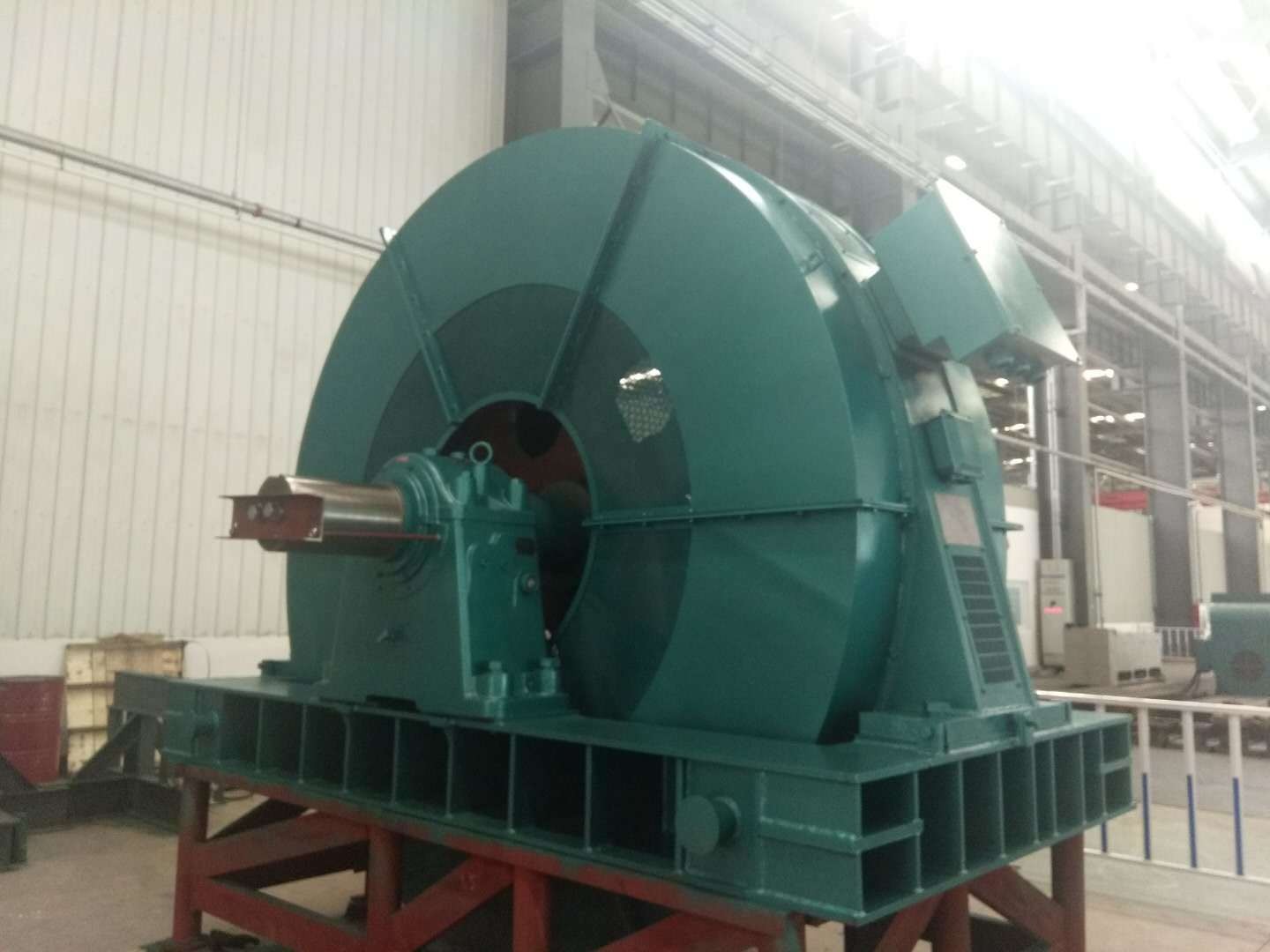

3-Phase Synchronous Motor Series Tk Special for Air Compressor

This series meets JB/ T8667.1-1997 Technical Specifications of Series TK Large-sized 3-phase Synchronous Motor and GB755 Basic Technical Requirements for Rotating Motor as well as standards of IEC. A stationary controllable silicon exciter is a used as its excitation system. It is allowed to be directly started at full voltage, when full-voltage starting is not allowed due to the capacity of the power grid, it can be started at reduced voltage. The series has many advantages, such as compact structure, high efficiency, low noise, slight vibration, high reliability and installation & maintenance convenience.

    The series is suitable to drive reciprocating air compressor, suitable to be used in such an indoor environment with a temperature varying with seasons, but not more than 40ºC while not less than -5ºC, with less dust, and without vapour, acid, alkali or corrosive/explosive gas.

    The series adopts an enclosure protection class IP, cooling mode IC 01. For the ones with other protection class or cooling mode, users can negotiate with us. The series' rated voltage is 6000V, and also, we can produce the ones with a voltage of 10,000V (allowable deviation range: ±5%), rated power 50Hz and rated power factor 0.9 (lead).

    The number of the motor's stator leads can be 3, 6, 9 or 12 as per customer requirements.

    The adoption of insulation materials with an insulation class of B or F for stator and rotor windings (temperature rise assessed in line with class B) is helpful to prolong the motor's service life; and because stator and rotor winding terminals have been fixed and strapped reliably and processed with solvent-free VPI (vacuum pressure impregnation) and have gone through many times of tests for turn-to-turn impulse withstand voltage and withstand voltage to ground, the motor has excellent and reliable insulation performance, high mechanical strength and strong moisture proofing. We can add thermodetectors at key parts, e.g. stator windings and bearings as required by users, so as to ensure its safe and reliable operation.

    Series TK is mainly used to drive reciprocating air compressor, and can also be used to drive water pump, fan and other general mechanical equipment.

Model   Structure Ratings Power factor     Efficiency % / Locked current /rated current / Locked torque/ Rated torque / Pull-in torque /Rated torque / Pull-out torque /Rated torque   Conn.   Rotational inertia kg · m2   Model of exciter   Weight t Power kW Voltage V Current A TK350-12/1180A shaftless suspension 350 3000 81.4 0.9 91.0 6.0 1.0 0.5 1.8 2Y 125 KGLF11-200/75 3.69 TK350-12/1180A shaftless suspension 350 6000 40.7 0.9 91.0 6.0 1.0 0.5 1.8 Y 125 KGLF11-200/75 3.69 TK320-14/1430 single shaft extension 320 6000 37.6 0.9 90.5 6.5 0.9 0.7 1.8   225 KGLF11-200/110 7.65 TK350-14/1430 shaftless suspension 350 6000 41.1 0.9 91.0 6.0 0.9 0.8 1.8 Y 250 KGLF11-200/75 4.58 TK500-14/1430A single shaft extension 500 6000 58.1 0.9 92.0 6.0 0.9 0.8 1.8 Y 325 KGLF11-200/75 8.52 TK600-14/1430 single shaft extension 600 6000 67.8 0.9 Inquiry Us Quantity： Company Name： Add： Tel： Fax： Your Name * Your Email * Product Name Your Message * Code： Related Products 1.5kw Residential Horizontal AC Permanent Magnet Generator for Windmill 360kw 1500rpm Permanent Magnet Generator for Gas Engine 20kw -100kw High Speed Magnet Electric Motor 70kw 450rpm 60Hz Horizontal Permanent Magnet Generator ZGS11-Z·G Combined Transformer for Photovoltaic Power Generation Tybzd Series Mine Isolation Type of Low-Speed Direct-Drive Three-Phase Permanent Magnet Synchronous Motor (660/1140V center, 450-1000)
