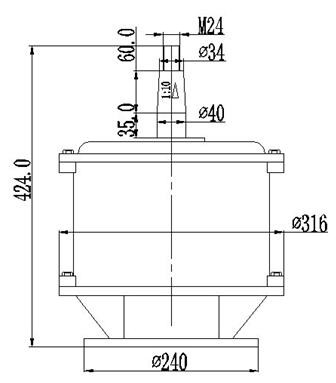

500w 80rpm low speed vertical permanent magnet generator - 副本

generator type: synchronous permanent magnet 3 phase AC

• magnetic steel material:38SH NdFeB • class of insulation:B

• housing material: cast iron • shaft material: 45# steel

• rated rotate speed:80 RPM • rated voltage: 12VAC/24VAC/48VAC

• grade of protection: IP54 • weight:57kg

• start up torque:0.9Nm • rated torque at rated speed:101Nm

500W 24V Vertical Generator Design Data
rpm	14	30	47	63	80
no-load voltage（V）	8.7	18.8	29	39	49
load voltage(V)	5.5	11.3	16.4	20.8	24.4
load current(A)	2.72	5.72	8.27	10.33	11.96
output power(W)	26	112	235	376	518
torque (Nm)	35	59	79	92	101

Remark: The design load electric resistance of above data is 1.15 Ω.
