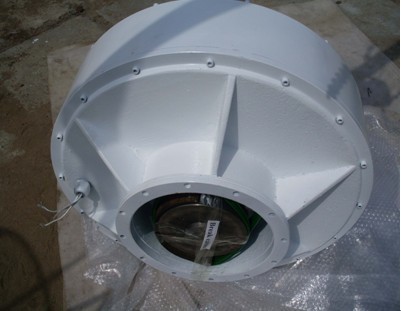

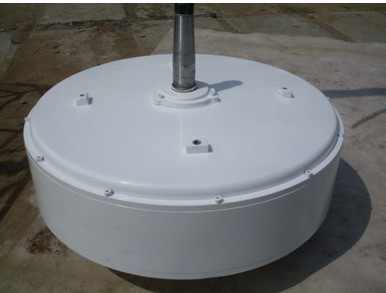

Description
generator type: synchronous permanent magnet 3 phase AC
• magnetic steel material:38SH NdFeB • class of insulation:B
• housing material:cast iron/ aluminium • shaft material:45# steel
• rated rotate speed:50 RPM
• rated voltage: 48VAC/96VAC/120VAC/220VAC/240VAC/360VAC/380VAC
• grade of protection: IP54 • weight: 235kg (cast iron) / 160kg (aluminium)
• start up torque: 14.7Nm(aluminium)
• rated torque at rated speed:889Nm

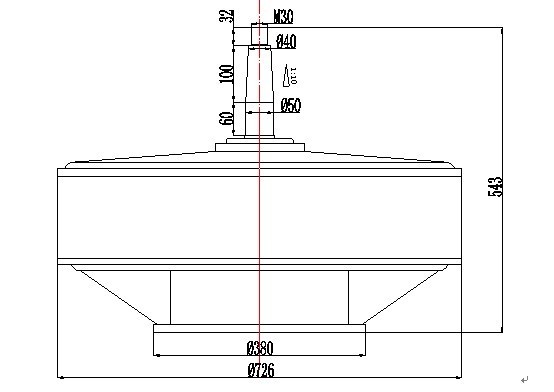

3KW50RPM 220V Vertical Generator Design Data
rpm
5
10
15
20
25
30
35
40
45
50
55
no-load voltage（Vac）
35
70
104
140
174
209
244
279
314
349
384
load voltage (Vac)
24
48
71
95
118
140
161
182
203
222
241
load current (A)
0.8
1.7
2.5
3.4
4.2
5.1
5.8
6.5
7.2
7.9
8.6
output power(W)
34
138
312
550
849
1203
1605
2050
2530
3040
3572
torque (Nm)
139
238
335
428
548
600
683
757
826
889
947
Remark: The design load electric resistance of above data is 16.1 Ω.
