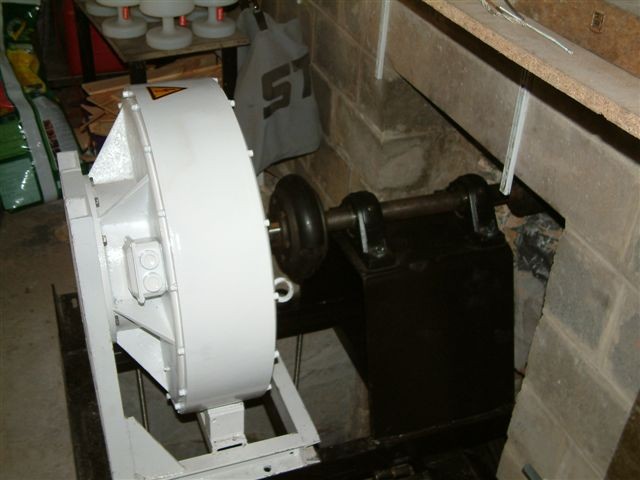

Description
• generator type: synchronous permanent magnet 3 phase AC
• magnetic steel material:38SH NdFeB • class of insulation:B
• housing material: aluminium • shaft material: 45# steel
• rated rotate speed:100 RPM
• rated voltage: 24VAC/48VAC/96VAC/120VAC/220VAC/240VAC
• grade of protection: IP54 • weight:80kg
• start up torque: 2.94Nm
• rated torque at rated speed: 149Nm
|

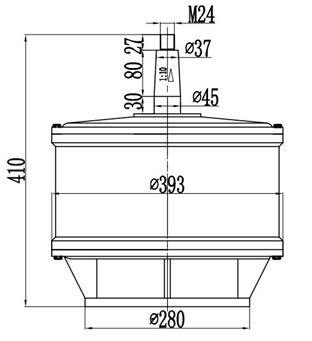

1KW100RPM 48V Vertical Generator Design Data |
|||||||||||
|
rpm (r/min) |
10 |
20 |
30 |
40 |
50 |
60 |
70 |
80 |
90 |
100 |
110 |
|
no-load voltage（Vac） |
7 |
15 |
22 |
30 |
37 |
44 |
52 |
59 |
67 |
74 |
81 |
|
load voltage (Vac) |
5 |
10 |
15 |
20 |
25 |
30 |
35 |
39 |
44 |
49 |
53 |
|
load current (A) |
1.3 |
2.5 |
3.7 |
5.1 |
6.3 |
7.5 |
8.7 |
9.8 |
11.1 |
12.2 |
13.7 |
|
output power (W) |
10 |
43 |
96 |
171 |
266 |
382 |
516 |
668 |
838 |
1023 |
1223 |
|
torque (Nm) |
19 |
34 |
50 |
65 |
80 |
95 |
108 |
122 |
136 |
149 |
161 |
Remark: The design load electric resistance of above data is 2.3 Ω.
