Description

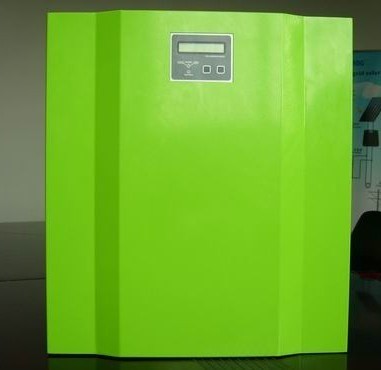

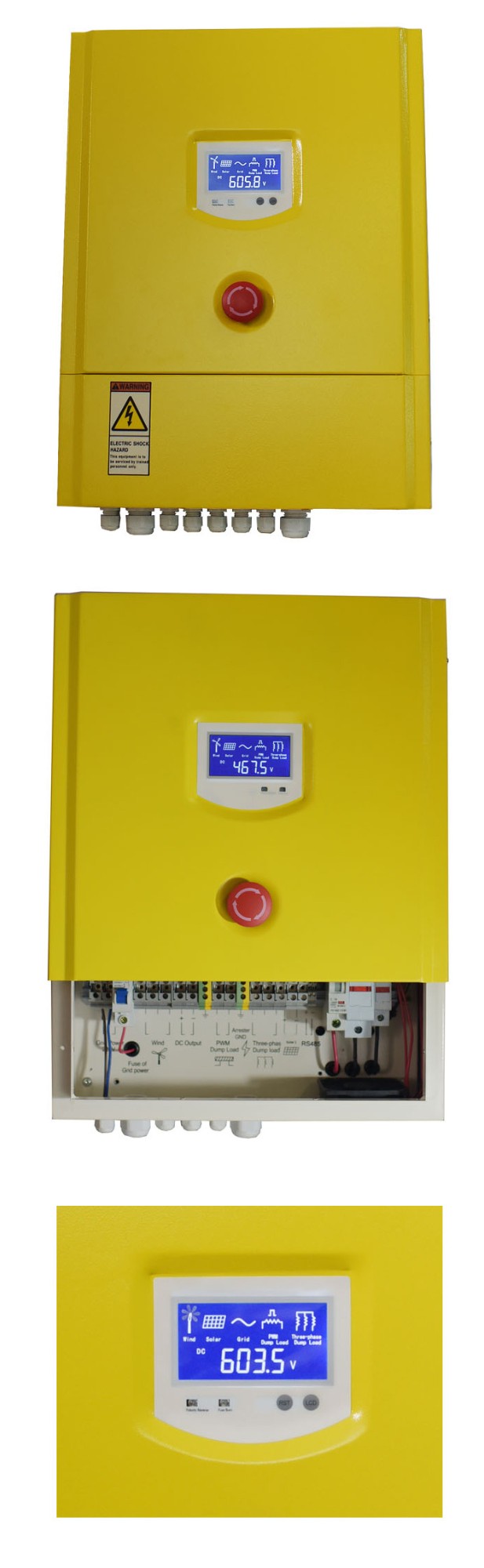

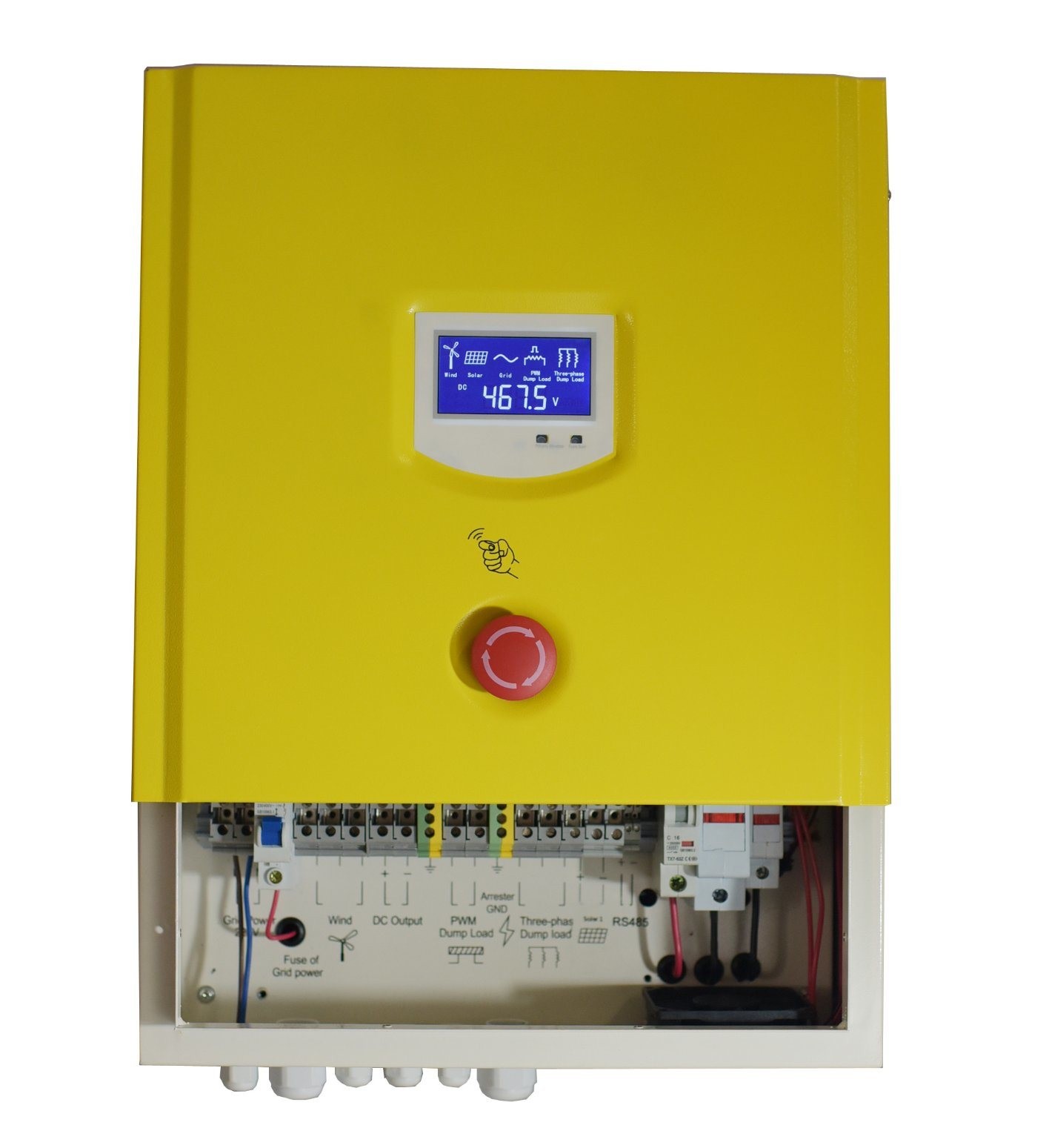

Pure sine wave on grid inverter, CE certifcate,it can use for wind turbine system
model
XD 300W-800W
XD 1kw-1.5kw
XD 2kw-4kw
XD 5kw-10kw
XD 10kw-20kw
capacity(W)
300-800
1000-1500
2000-4000
5000-10000
10000-20000
Rated voltage
160V_266V
Input frequency
50HZ± 5HZ
Output voltage
Four steps AVR, 220V± 3% or 380V± 3%
Invert frequency
50HZ± 2%
DC voltage
12V
24V
48V
96V
240V
Output wave form
Prue sine wave
THD
≤ 3%
Transfer time
≤ 4ms Automatic transfer
Low-voltage protection
9.8
19.5
39.2
86
196
High-voltage protection
14.5
29
57
120
310
Recharge current
5-8A
8-10A
10-15A
15-20A
20-25A
Unit size(mm)
348*122*200
388*145*210
470*220*386
555*360*720
Transfer efficiency
87%--90%
Protections
Protection against short-circuit,over load,high-voltage,reverse polarity protection and low-voltage protection
| model | XD 300W-800W | XD 1kw-1.5kw | XD 2kw-4kw | XD 5kw-10kw | XD 10kw-20kw | ||
| capacity(W) | 300-800 | 1000-1500 | 2000-4000 | 5000-10000 | 10000-20000 | ||
| Rated voltage | 160V_266V | ||||||
| Input frequency | 50HZ± 5HZ | ||||||
| Output voltage | Four steps AVR, 220V± 3% or 380V± 3% | ||||||
| Invert frequency | 50HZ± 2% | ||||||
| DC voltage | 12V | 24V | 48V | 96V | 240V | ||
| Output wave form | Prue sine wave | ||||||
| THD | ≤ 3% | ||||||
| Transfer time | ≤ 4ms Automatic transfer | ||||||
| Low-voltage protection | 9.8 | 19.5 | 39.2 | 86 | 196 | ||
| High-voltage protection | 14.5 | 29 | 57 | 120 | 310 | ||
| Recharge current | 5-8A | 8-10A | 10-15A | 15-20A | 20-25A | ||
| Unit size(mm) | 348*122*200 | 388*145*210 | 470*220*386 | 555*360*720 | |||
| Transfer efficiency | 87%--90% | ||||||
| Protections | Protection against short-circuit,over load,high-voltage,reverse polarity protection and low-voltage protection | ||||||
