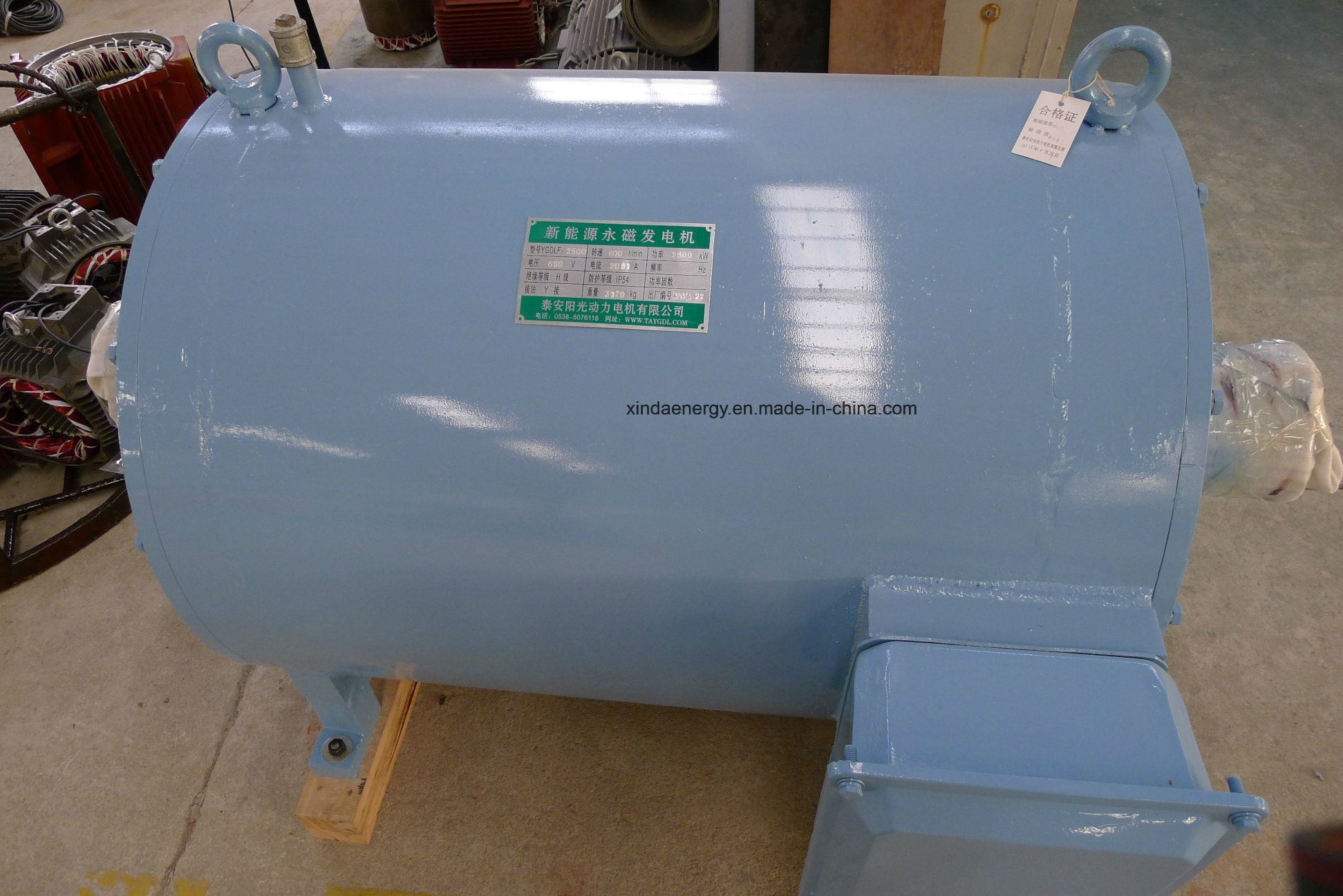

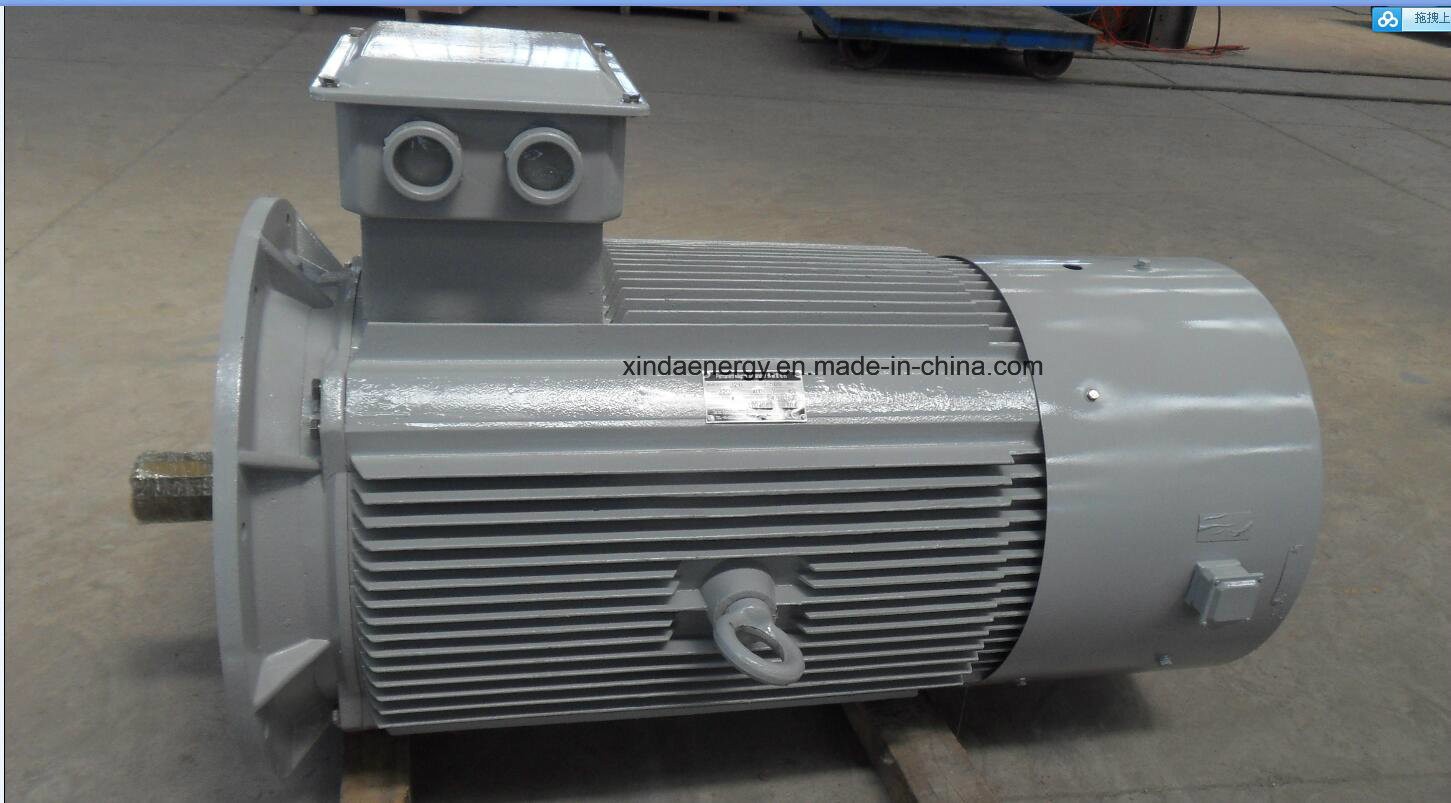

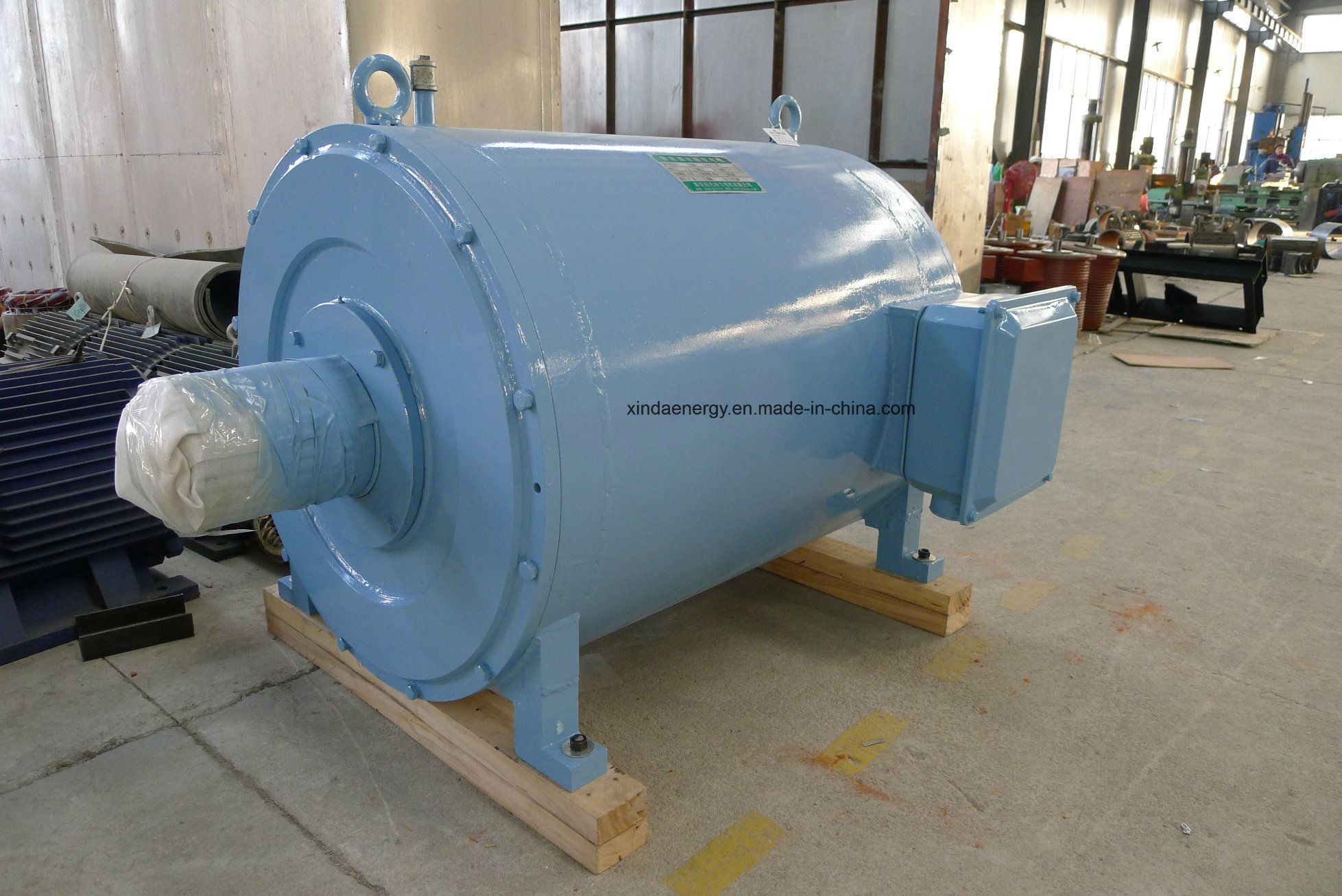

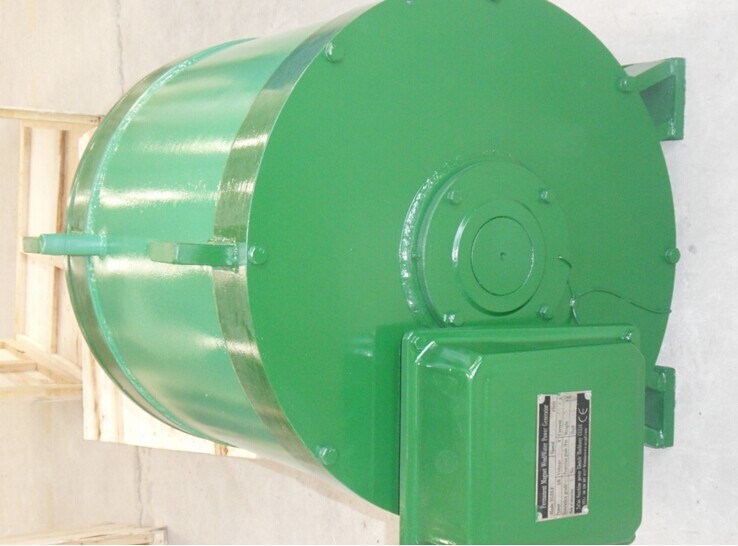

300kw 100rpm Direct Drive Large Vertical Permanent Magnet Generator

300kw 100rpm Direct Drive Large Vertical Permanent Magnet Generator

Description

We offer various kinds of permanent magnetic generator from 0.1KW-1500KW(vertical and horizontal), please contact us for more detail informations.
Features of Permanent Magnet Generator
*Low start up speed, Gearless, low RPM generator
*High standard components for use in hard and extreme
Environments for wind turbine
*High efficiency low mechanical resistance energy loss
*Design for reliable long operational lifetime

Description	Power	Speed	Voltage	Rated torque	Insult	Curent	Weight
Low speed direct drive permanent magnet generator	220kw	100rpm	690V	21010Nm	H	184A	3600kg
	300	100rpm	690V	28650Nm	H	251A	3900kg
	500	200rpm	690V	23880Nm	H	418A	3700kg
	500	350rpm	690V	13650Nm	H	418A	3500kg
