Description

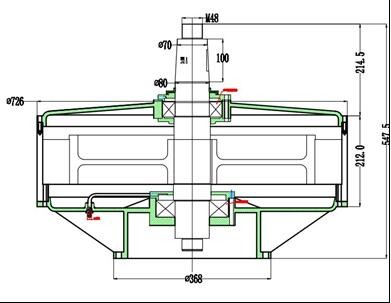

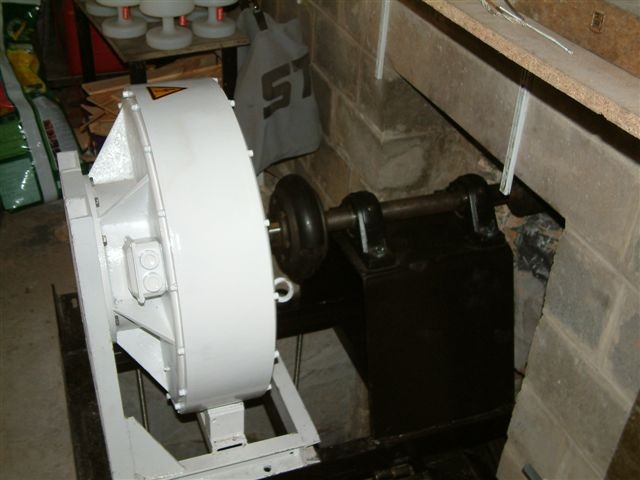

10KW100RPM Vertical Generator
• generator type: synchronous permanent magnet 3 phase AC
• magnetic steel material:38SH NdFeB • class of insulation:B
• housing material: aluminium • shaft material: 45# steel
• rated rotate speed:100 RPM
• rated voltage: 120VAC/220VAC/240VAC/360VAC/380VAC
• grade of protection: IP54 • weight:222kg
• start up torque: 12.74Nm • rated torque at rated speed: 1144Nm
|
10KW100RPM 380V Vertical Generator Design Data |
|||||||||||
|
rpm (r/min) |
10 |
20 |
30 |
40 |
50 |
60 |
70 |
80 |
90 |
100 |
110 |
|
no-load voltage（Vac） |
47 |
93 |
140 |
187 |
234 |
281 |
328 |
375 |
422 |
469 |
516 |
|
load voltage (Vac) |
41 |
82 |
123 |
163 |
202 |
240 |
278 |
314 |
349 |
382 |
415 |
|
load current (A) |
1.6 |
3.4 |
4.9 |
6.5 |
8.1 |
9.6 |
11.1 |
12.5 |
13.9 |
15.3 |
16.6 |
|
output power (W) |
110 |
451 |
1017 |
1798 |
2779 |
3943 |
5273 |
6747 |
8344 |
10044 |
11827 |
|
torque (Nm) |
168 |
294 |
419 |
539 |
655 |
766 |
870 |
969 |
1060 |
1144 |
1221 |
Remark: The design load electric resistance of above data is 14.4 Ω.
