TYPL Series (IP55)Explosion-Proof Type Permanent Magnet Frequency Control Motor

TYPL Series (IP55)Explosion-Proof Type Permanent Magnet Frequency Control Motor

Description

Center Height of Frame: H 225~H280mm

Rated Power: 5.5kW~55kW

Supply Voltage，Frequency: 380V,40Hz

(can be customized)

Protection Level: IP55

Thermal Class:155( F)

Cooling Type: IC410

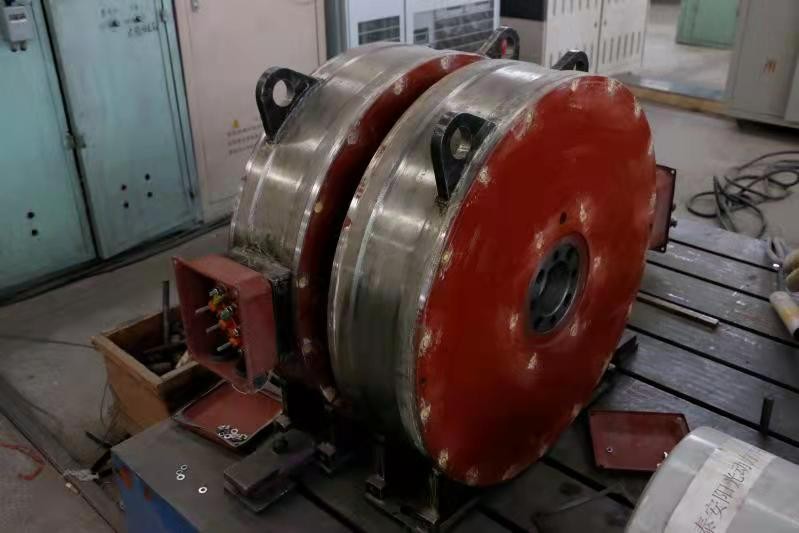

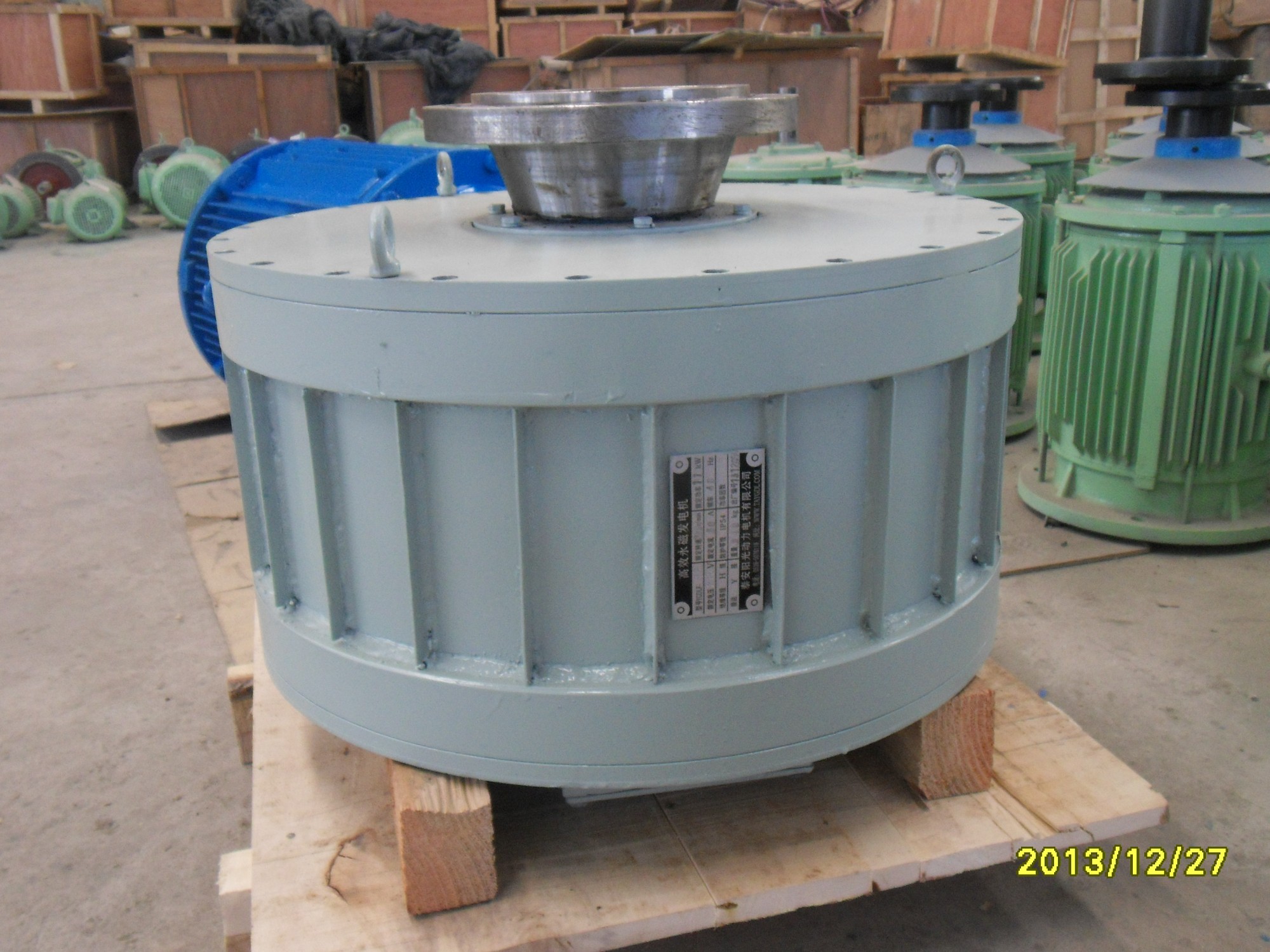

TYPL series motor system is an integrated equipment consisting of Explosion-proof Permanent Magnet Variable Frequency motor and intelligent variable frequency control cabinet, it is a high-efficiency and energy-saving product, which is designed by our company for oil fields. It is a new type integrating product developed on the basis of development of electronic elements, computer technology and rare earth permanent magnet material. The motor adopts vertical hollow shaft high efficiency permanent magnet variable frequency motor to directly drive screw pump rod without reduction gears which reduce energy consumption and maintenance cost. At the same time, oil well sealer is moved to top end of the motor which makes the maintenance more convenient and easy. Controlled by intelligent variable frequency control cabinet, the system has features of simple structure, easy for parameter adjusting, high efficiency and has auto-heating device to protect freezing and auto-cooling device to protect overheating and also has protection function of over torque, over voltage and over current, etc. They belong to key promotion products.

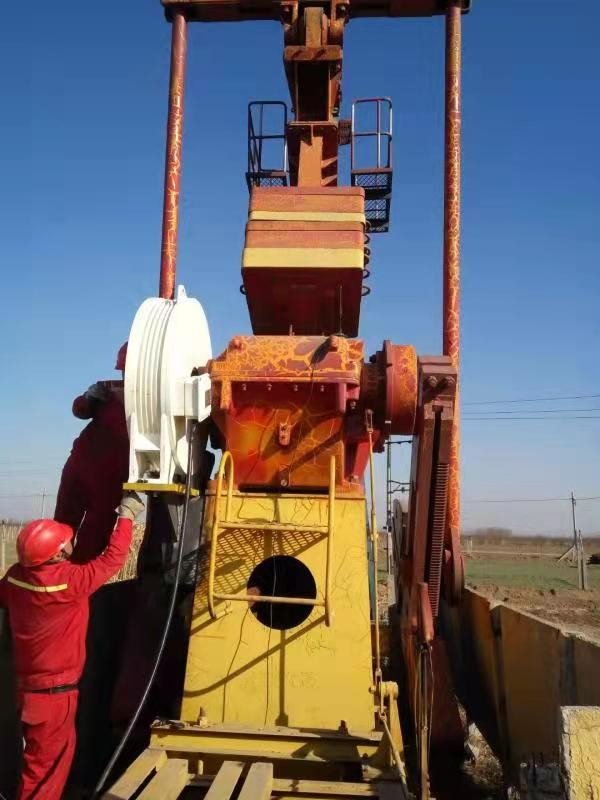

This system is mainly applied to screw pump unit with conditions of high viscosity, high sand content and water content.

Technical Data of TYPL Series

Type	Rated Voltage （V）	Rated Torque （N．m）	Rated Speed (r/min)		Rated Power （KW）	EFF η(%)	Power Factor (cosφ)	Speed Rages (r/min)
Designed as per rated torque, rated speed 200 r/min
TYPL225S-10-400	380±10%	400		200	8.4	87	≥0.93	15~200
TYPL250-20-600		600			12.6	87.9
TYPL250-20-900		900			18.8	89.8
TYPL250-20-1000		1000			21	90.3
TYPL280-20-1200		1200			25	90.8
TYPL280-20-1500		1500			31.4	91.1
TYPL280-20-1800		1800			37.7	91.4
Designed as per rated power, rated speed 200 r/min
TYPL225	380±10%	263	200		5.5	85.4	≥0.93	15~200
TYPL225		358			7.5	86.6
TYPL250		525			11	87.9
TYPL250		716			15	89
TYPL250		883			18.5	89.8
TYPL250		1051			22	90.3
TYPL280		1433			30	91.1
TYPL280		1767			37	91.4
TYPL315		2626			55	92.6

Outline and Mounting Dimensions

Type	Mounting dimensions							Outline Dimensions
Type	d1	d2	d3	h	T	b	M	HF	ND	L
TYPL225	*	Φ2300 -0.072	Φ450	19	9	70±0.1	Φ290	600	420	900
TYPL250			Φ490					670	460	940
TYPL280			Φ550					720	500	1130
TYPL315			Φ630	23				890	600	1300

The size of d1 is determined by the screw rod of the screw pump. The rod of φ25 is φ25,the rod of φ28 is φ28,the rod of φ32 is 32,the rod of φ36 is φ36,and the rod of φ38 is φ38.
