golf cart Touring vehicle Motor

electric golf carts motor  , Sightseeing and patrol cart motor  , electric bus motor  , permanent magnet synchronous motor  , pallet truck motor  , stacker motor  , police vehicle motor  , logistics vehicle  , reluctance motor for electric bus  , Conversion car motor  , City car and cleaning vehicle motor  , vehicles motor  , Trackless mini train motor  , electric 4 wheelers motor  , beach vehicles motor  , mini-trains motor  , cleaning equipment motor  , and other industrial electric vehicles motor  , electric cars  , patrol cars  , golf balls Cars  , electric forklifts
Inquiry Send Email

Description

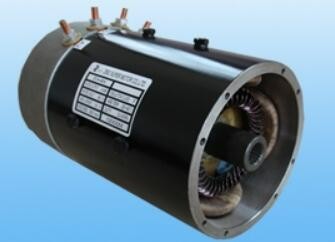

There is no end cover, convex shaft extension, 19-tooth inch involute internal spline, widely used in 2-4 touring vehicles, golf carts, ATVs, etc. With a diameter of 170mm, it is suitable for electric golf carts with a speed of approximately 20km/h-40km/h.

Model Rated power Rated voltage Rated current Rated speed Rated torque Insultation Protect Working
（Kw） (V) (A) (r/min) (N.m)    
ZC1.5-36 1.5 36 55 2800 5.1 F IP20 60min
ZC1.5-48 1.5 48 42 2800 5.1 F IP20 60min
ZC2.2-36 2.2 36 76 2000 10.5 F IP20 60min
ZC2.2-36 2.2 36 76 2800 7.5 F IP20 60min
ZC2.2-48 2.2 48 57 1500 14 F IP20 60min
ZC2.2-48 2.2 48 57 2000 10.5 F IP20 60min
ZC2.2-48 2.2 48 57 2500 8.4 F IP20 60min
ZC2.2-48 2.2 48 57 2800 7.5 F IP20 60min
ZC2.2-60 2.2 60 46 3300 6.4 F IP20 60min
ZC3-36 3 36 104 1500 19 F IP20 60min
ZC3-36 3 36 104 2000 14.3 F IP20 60min
ZC3-36 3 36 104 2800 10.2 F IP20 60min
ZC3-48 3 48 78 1500 19.1 F IP20 60min
ZC3-48 3 48 78 2000 14.33 F IP20 60min
ZC3-48 3 48 78 2500 11.5 F IP20 60min
ZC3-48 3 48 78 2800 10.2 F IP20 60min
ZC3-48 3 48 78 3200 9 F IP20 60min
ZC3-48 3 48 78 3500 8.2 F IP20 60min
ZC3-60 3 60 63 2000 14.33 F IP20 60min
ZC3-60 3 60 63 2800 10.2 F IP20 60min
ZC3-60 3 60 63 3500 8.2 F IP20 60min
ZC3-72 3 72 52 3500 8.2 F IP20 60min
ZC3.5-48 3.5 48 91 2800 11.9 F IP20 60min
ZC3.5-60 3.5 60 73 2800 11.9 F IP20 60min
ZC3.5-72 3.5 72 61 2800 11.9 F IP20 60min
ZC4-48 4 48 104 1500 25.5 F IP20 60min
ZC4-48 4 48 104 2000 19.1 F IP20 60min
ZC4-48 4 48 104 2500 15.3 F IP20 60min
ZC4-48 4 48 104 2800 13.6 F IP20 60min
ZC4-48 4 48 104 3200 11.9 F IP20 60min
ZC4-48 4 48 104 3500 10.9 F IP20 60min
ZC4-60 4 60 83 2800 13.6 F IP20 60min
ZC4-60 4 60 83 2500 15.2 F IP20 60min
ZC4-72 4 72 69 2800 13.6 F IP20 60min
他励型：
Model
Rated power Rated voltage Rated current Rated speed Rated torque Insultation Protect Working
（Kw） (V) (A) (r/min) (N.m)    
ZT1.5-36 1.5 36 55 2800 5.1 F IP20 60min
ZT1.5-48 1.5 48 42 2800 5.1 F IP20 60min
ZT2.2-36 2.2 36 76 2000 10.5 F IP20 60min
ZT2.2-36 2.2 36 76 2800 7.5 F IP20 60min
ZT2.2-48 2.2 48 57 1500 14 F IP20 60min
ZT2.2-48 2.2 48 57 2000 10.5 F IP20 60min
ZT2.2-48 2.2 48 57 2500 8.4 F IP20 60min
ZT2.2-48 2.2 48 57 2800 7.5 F IP20 60min
ZT2.2-60 2.2 60 46 3300 6.4 F IP20 60min
ZT3-36 3 36 104 1500 19 F IP20 60min
ZT3-36 3 36 104 2000 14.3 F IP20 60min
ZT3-36 3 36 104 2800 10.2 F IP20 60min
ZT3-48 3 48 78 1500 19.1 F IP20 60min
ZT3-48 3 48 78 2000 14.33 F IP20 60min
ZT3-48 3 48 78 2500 11.5 F IP20 60min
ZT3-48 3 48 78 2800 10.2 F IP20 60min
ZT3-48 3 48 78 3200 9 F IP20 60min
ZT3-48 3 48 78 3500 8.2 F IP20 60min
ZT3-60 3 60 63 2000 14.33 F IP20 60min
ZT3-60 3 60 63 2800 10.2 F IP20 60min
ZT3-60 3 60 63 3500 8.2 F IP20 60min
ZT3-72 3 72 52 3500 8.2 F IP20 60min
ZT3.5-48 3.5 48 91 2800 11.9 F IP20 60min
ZT3.5-60 3.5 60 73 2800 11.9 F IP20 60min
ZT3.5-72 3.5 72 61 2800 11.9 F IP20 60min
ZT4-48 4 48 104 1500 25.5 F IP20 60min
ZT4-48 4 48 104 2000 19.1 F IP20 60min
ZT4-48 4 48 104 2500 15.3 F IP20 60min
ZT4-48 4 48 104 2800 13.6 F IP20 60min
ZT4-48 4 48 104 3200 11.9 F IP20 60min
ZT4-48 4 48 104 3500 10.9 F IP20 60min
ZT4-60 4 60 83 2800 13.6 F IP20 60min
ZT4-60 4 60 83 2500 15.2 F IP20 60min
ZT4-72 4 72 69 2800 13.6 F IP20 60min
