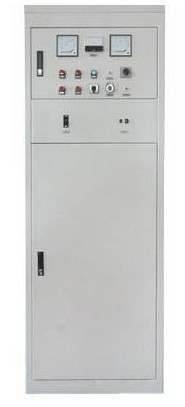

Description
This series of products are suitable for low voltage generator.
According to the different needs of different clients , the wiring
of major loop may be single-phase half-controlled self shunt
excitation way, three – phase fully - controlled way or rotation
excitation. Exciting transformer is commonly dry type transformer
within panel. This product is designed and produced according to the
requirements of GB10585-89: fundamental requirements of excitation
systems for medium and small synchronous machines.
PARTICULAR INFO
I、MAIN PERFORMANCE AND CHARACTERISTICS ★ Regulator is mainly
controlled by integrated circuit or microcomputer; ★ Regulation
method is automatic voltage regulation (AVR); Model of microcomputer
regulator can run with constant voltage, constant current and
constant power factor; ★ Multiple monitor models; ★ Residual voltage
self-excitation, separated excitation and manual excitation; ★
Deexcitation methods are continuous-flow demagnetization or direct
switching - off of deexcitation switch; Mode 33 should use
deexcitation switch; ★ Simple to install and operate, convenience to
maintain and run reliabiy. II、Models Product type Rectification Mode
Adjuster Mode port far/near FKL-201 single-phase bridge Analog no
On-site FKL-203 single-phase bridge Digital-analog no Remote control
FKL-205 rotation Digital-analog no remote control FKL-207
single-phase bridge Microcomputer yes remote control FKL-209
rotation Microcomputer no remote control FKL-233D Three-phase bridge
Digital-analog no remote control FKL-233DW Three-phase bridge
Microcomputer have remote control Instructions: If dry type
excitation transformer is included, the ones with a capability below
50KVA should be put in panel. III、 ORDER INFORMATION ◎、Generator
model and parameter(include excitation parameters) ◎、Model and
quantity of excitation device ◎、Working voltage must be need for
Mode 33 ◎、Other specific requirements
