Description

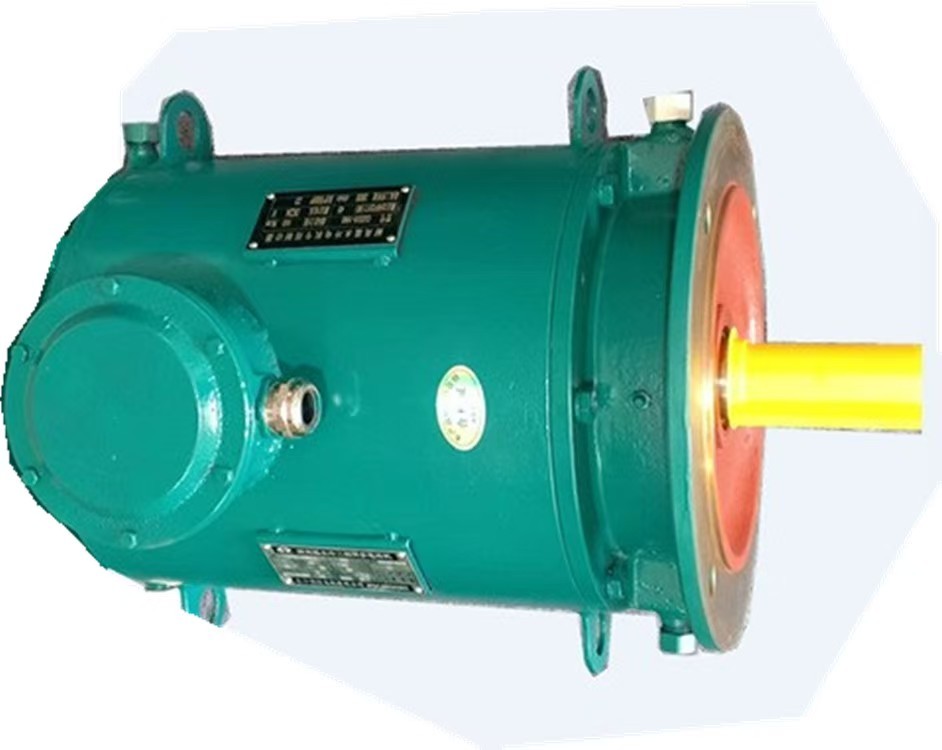

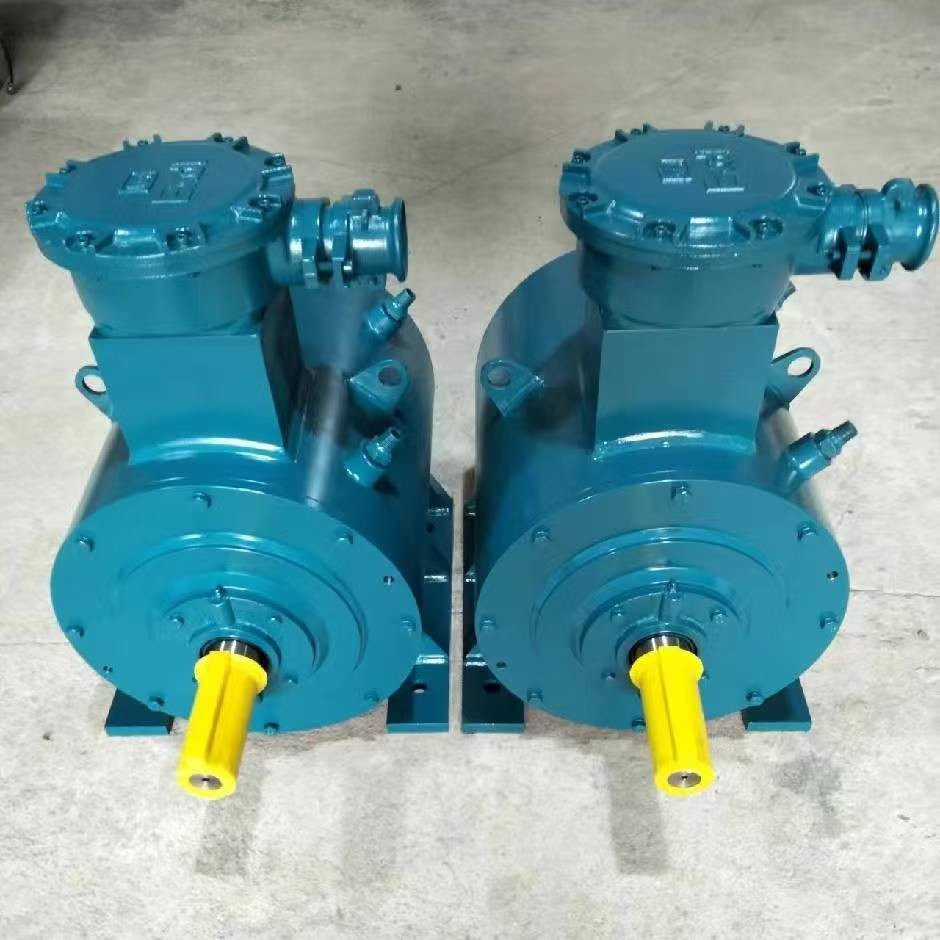

High speed customize motor
|
参数Parameters |
Unit |
Value |
|
|
额定功率:Power rating |
kw |
55 |
|
|
额定频率:Rated Frequency |
Hz |
833.4 |
|
|
额定电压:Rated voltage |
V(±10%) |
400 |
|
|
额定电流:Rated current |
A |
82.8 |
|
|
额定转速:Rated speed |
r/min(±2%) |
50000 |
|
|
电机极数:Motor Poles |
P |
2 |
|
|
额定转矩:Rated torque |
N.m |
10.5 |
|
|
最大初始转矩：Max start torque |
N.m |
40 |
|
|
峰值转矩：Peak torque |
N.m |
47 |
|
|
恒定扭矩调速范围: |
r/min |
0-50000 |
|
|
调速范围:Governor scope |
r/min |
0-50000 |
|
|
效率:Efficiency |
% |
96.9 |
|
|
功率因数:Power factor |
|
0.989 |
|
|
绝缘等级:Insulation class |
F |
H |
|
|
防护等级:Ingress Protectionrating |
IP |
54 |
|
|
冷却方式 |
|
Water(水冷)+油气润滑 |
|
|
安装方式:wayto install |
|
IMB3 |
|
|
工 作 制:Working system |
|
S1 |
|
|
转动惯量:Rotor inertial moment |
kg.㎡ |
0.003 |
|
|
振 动 值:vibration value |
≦mm/s |
3.5 |
|
|
噪声:Yawp |
db(±5%) |
92 |
|
|
中心高:height of center |
mm |
110 |
