Description

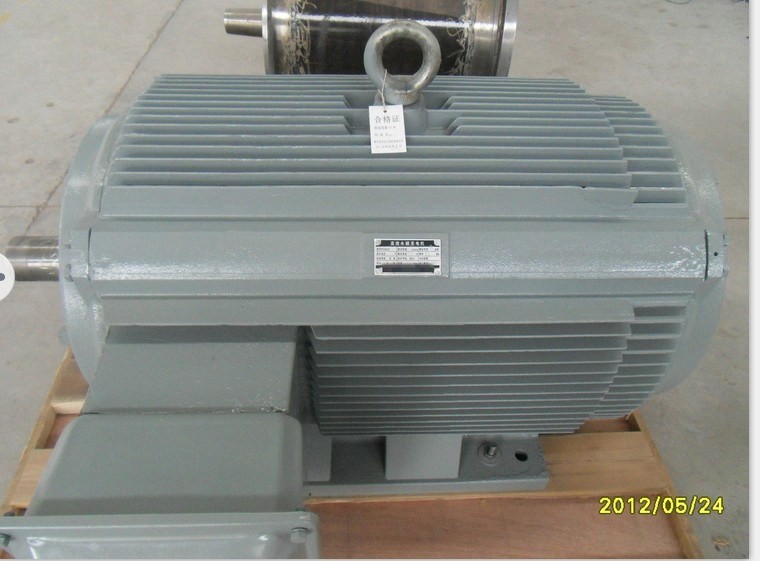

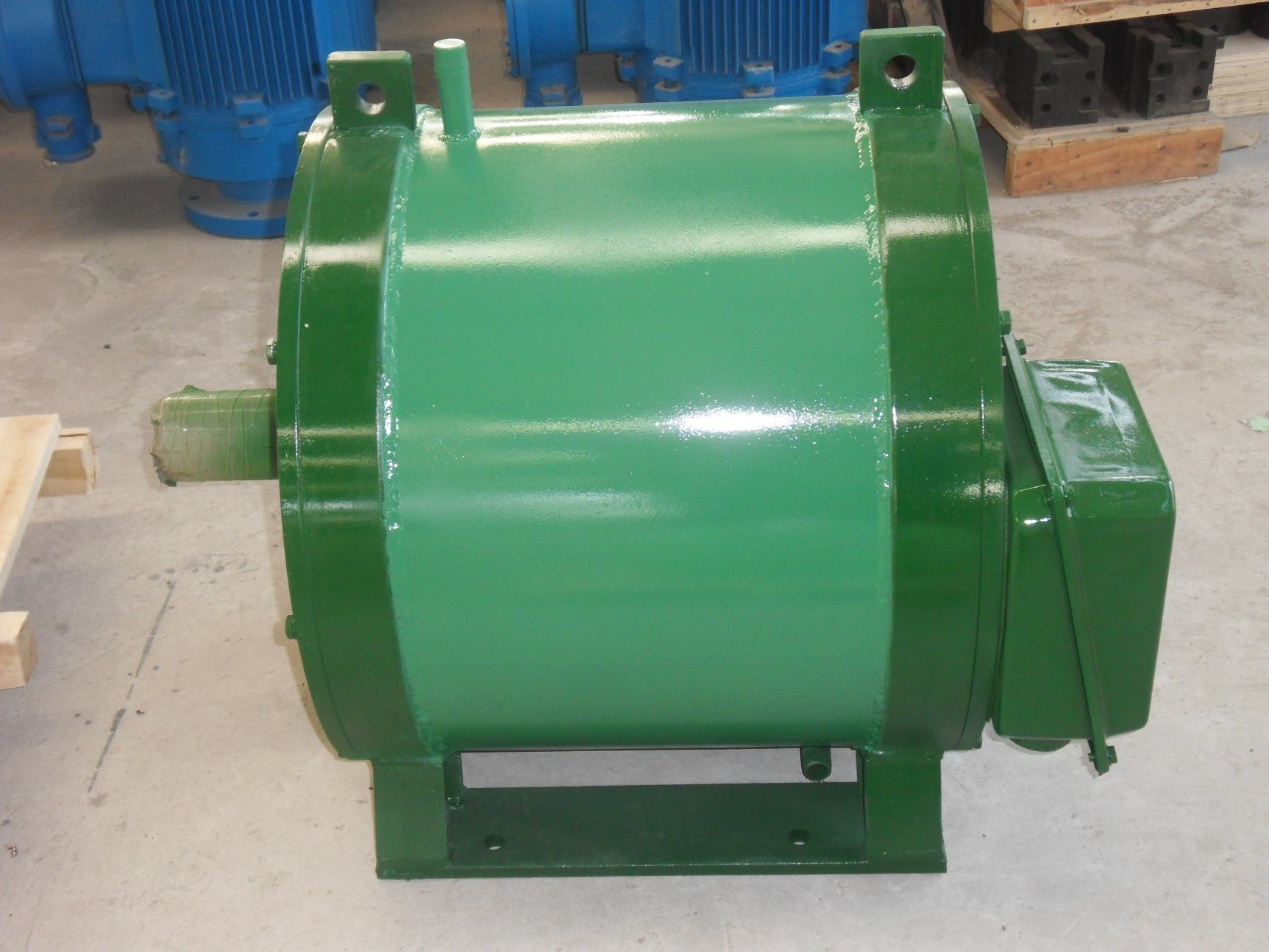

Low speed permanent magnet water generator, leaving out speed-up machine, generating 50 Hz Power at low speed. 60Hz also available
High efficient PM rotor, compact structure. No carbon brushes, do not need excitation, no spark, no excitation winding, high rotor intensity, no field control box, sample construction, high performance.
Protection class: IP44, avoid water, mud, dusty getting into the motor, long life, especially suitable for outdoor requirements.
No excitation control-box, sample construct, high performance.
Motors is running efficiently throughout the entire speed range, saving energy.
Using embedded rare-earth magnetic steel, especially suitable for turbulence, impact dynamic and reverse running.
The motor adopts wind-cooling or water-cooling, low temperature, adopts high speed oil-retaining bearing, maintenance-free, high reliability, long life-span.
You can change the motor voltage, speed, Power and other parameters, the out size of the motor can be also changed. You can use splined shaft, dual shaft, flange and other output styles
High efficient PM rotor, compact structure. No carbon brushes, do not need excitation, no spark, no excitation winding, high rotor intensity, no field control box, sample construction, high performance.
Protection class: IP44, avoid water, mud, dusty getting into the motor, long life, especially suitable for outdoor requirements.
No excitation control-box, sample construct, high performance.
Motors is running efficiently throughout the entire speed range, saving energy.
Using embedded rare-earth magnetic steel, especially suitable for turbulence, impact dynamic and reverse running.
The motor adopts wind-cooling or water-cooling, low temperature, adopts high speed oil-retaining bearing, maintenance-free, high reliability, long life-span.
You can change the motor voltage, speed, Power and other parameters, the out size of the motor can be also changed. You can use splined shaft, dual shaft, flange and other output styles
| Power | AC voltage | speed | poles | frequency | Rated torque | current | efficiency | weight |
| 35 kw | 400V | 125rpm | 48 | 50Hz | 2700Nm | 16.9A | 93.8% | 1260kg |
| 70 kw | 400V | 250rpm | 24 | 50Hz | 2700Nm | 16.9A | 93.8% | 1260kg |
| 105 kw | 400V | 375rpm | 16 | 50Hz | 2700Nm | 16.9A | 93.8% | 1260kg |
| 140 kw | 400V | 500rpm | 12 | 50Hz | 2700Nm | 16.9A | 93.8% | 1260kg |
