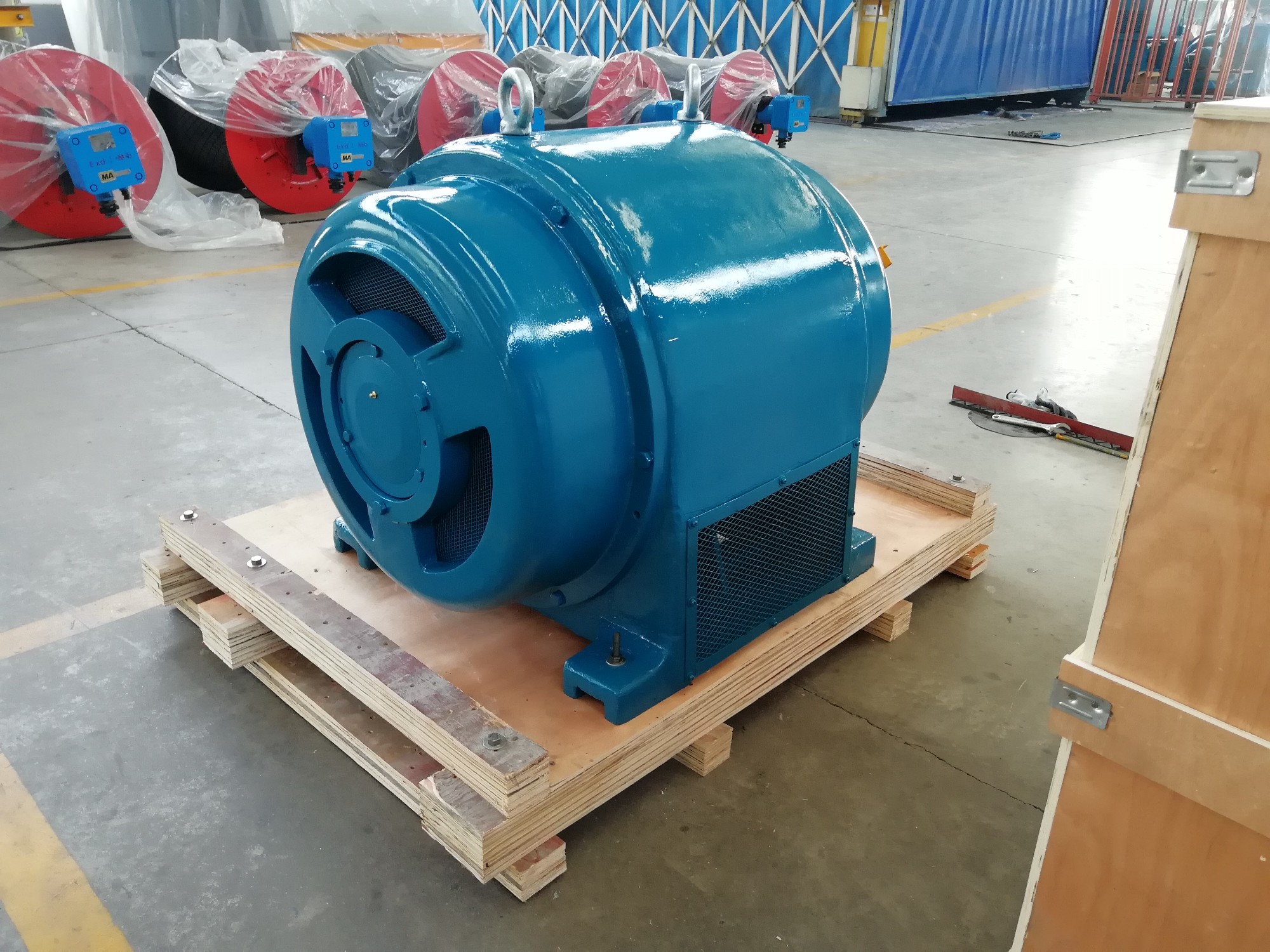

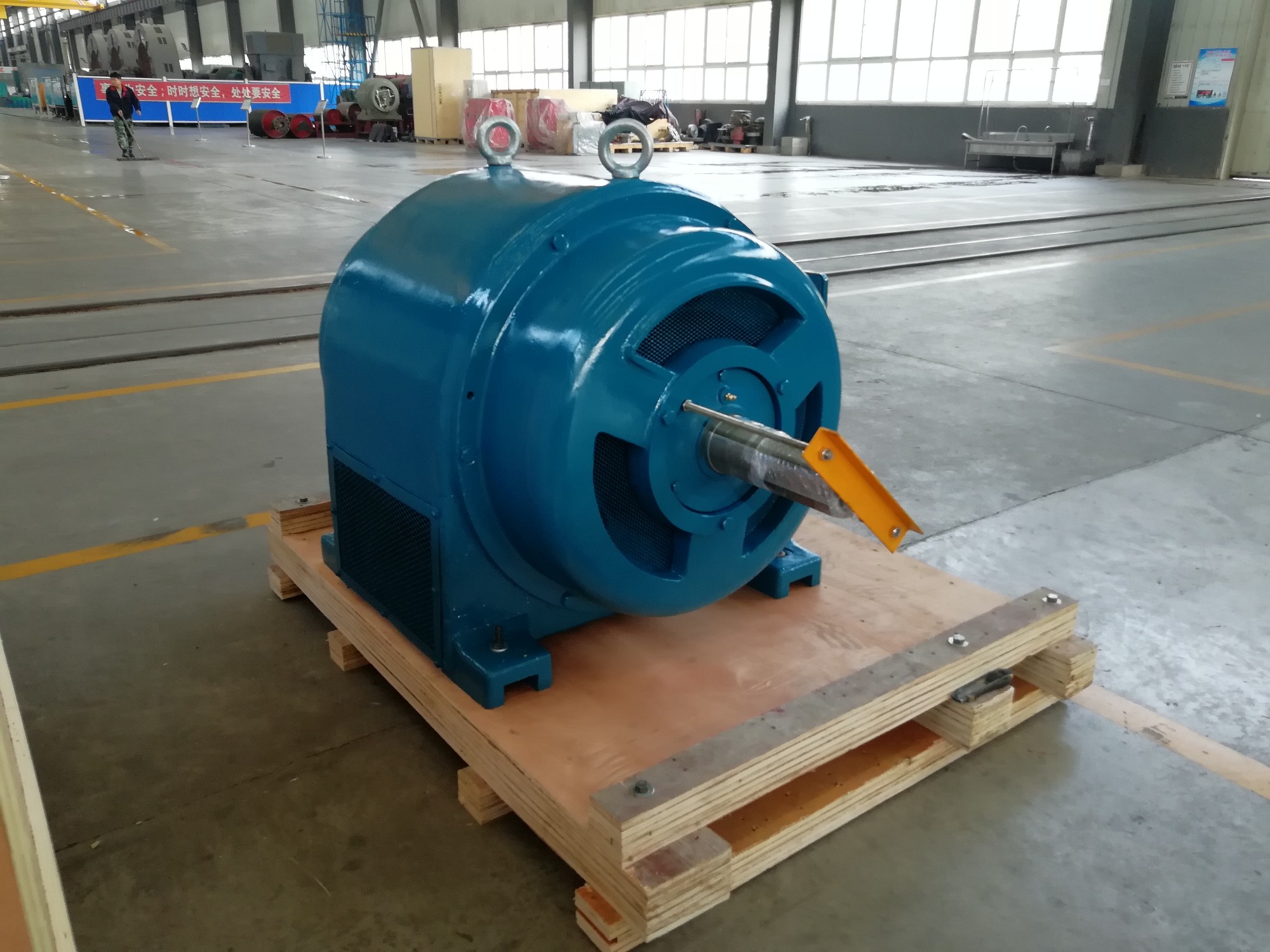

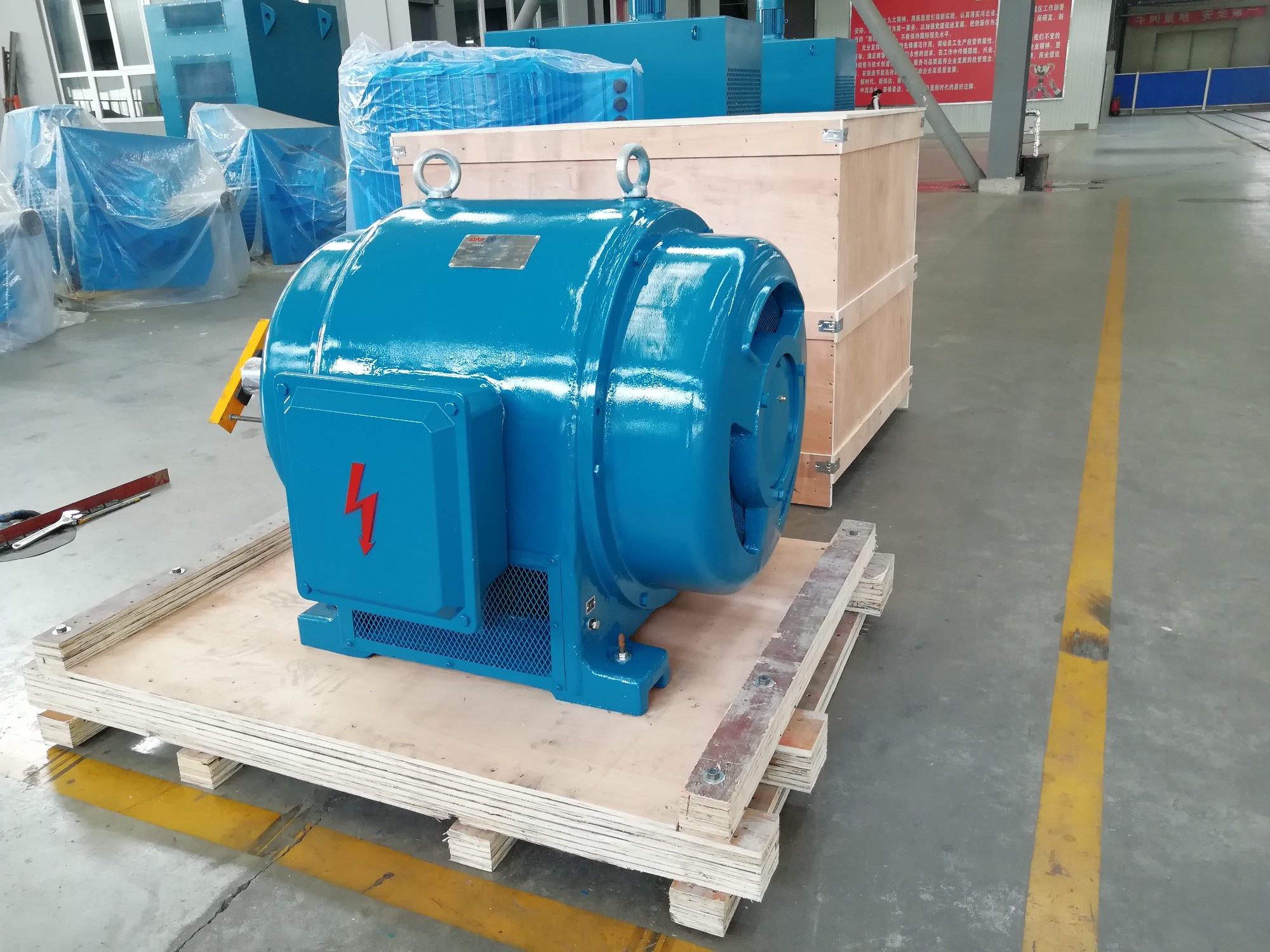

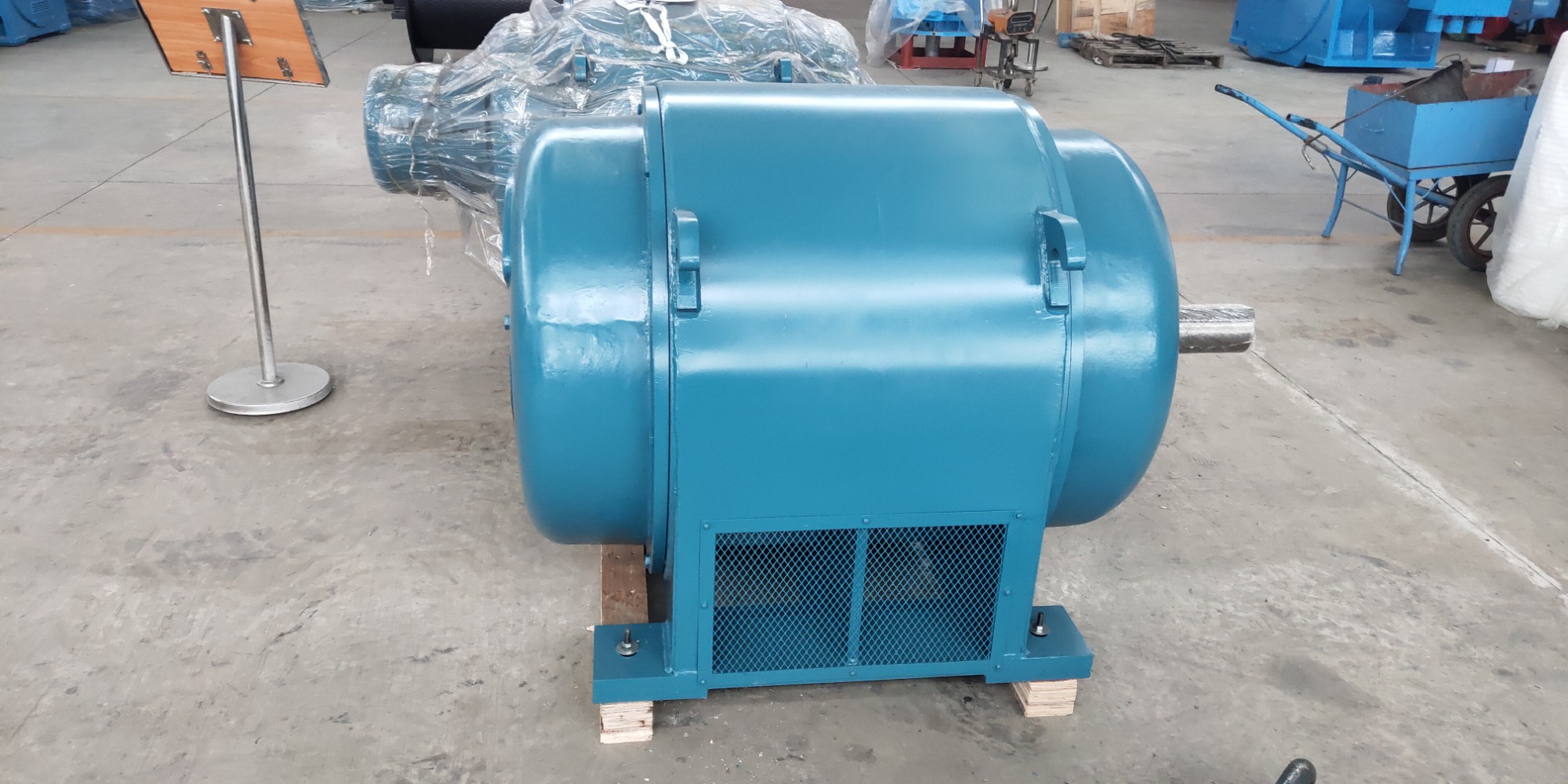

3-Phase Squirrel-Cage Rotor Asynchronous Motor Series Ysq

Squirrel-Cage Synchronous Motor  , Slip Ring Motor  , Cutting Machine Motor  , Mill Motor  , Coal Mill Motor  , Rolling Mill Motor  , Winch Machine Motor  , Belt Conveyor Motor  , Compressor Motor  , Crusher Motor  , High Voltage Motor  , Ventilator Motor  , Explosion-Proof Motor  , Conveyor Belts Motor  , Brushless AC Hoist Motor  , Sugar Shredder Motor  , Roller Bearing Motor  , Electric Air Compressor Motor  , AC Motor External Cooling Fan Motor  , Paper Machine Motor  , Power Plant Motor
Inquiry Send Email

Description

The series YSQ is a kind of 3-phase squirrel-cage rotor asynchronous motor meeting technical specifications in the ministerial standard JB563-64, which can drive a variety of machineries, e.g. ventilator, compressor, water pump, crusher, ball mill, cutting-off machine, transportation machinery and other equipmentand can be used as a primary mover in mechanical industry, power station and various industrial & miming enterprises. The ratings of the series are based on the values in continuous duty (S1): frequency 50HZ, rated voltage 220V/380V, 380V, 3000V & 6000V. Voltage rating 3300V/10000V also can be produced as required by customers.
    This series adoptsprotection class IP23 for enclosure, cooling mode IC01, andIMB3mode for structuring &mounting. Moreover, we can design vertical mountas required by customers.
    Series YSQ guarantees, at rated voltage, the ration of the maximum torque and rated torque is 1.6.
YSQ
Squirrel-cage 3-phase Asyn. Motor Series YSQ
Stator
Frame Rated Eff. Power Rated Max. Weight
power Voltage Current factor speed torque
No. (kw) (v) (A) (%) (cosφ) (r/min) /Rated trque (kg)
YSQ115-6 75 380 140 90 0.86 975 1.6 970
YSQ116-6 95 380 176 90.5 0.86 975 1.6 1080
YSQ117-6 115 380 212 91 0.86 980 1.6 1150
YSQ125-6 130 380 243 91 0.86 980 1.6 1140
YSQ126-6 155 380 288 91.5 0.87 980 1.6 1180
YSQ127-6 185 380 345 92 0.87 980 1.6 1220
YSQ128-6 215 380 400 92 0.88 980 1.6 1280
YSQ136-6 240 380 433 92.5 0.89 980 1.6 1580
YSQ137-6 280 380 503 93 0.89 980 1.6 1670
YSQ115-8 60 380 120 88.5 0.82 730 1.6 950
YSQ116-8 70 380 139 89 0.83 730 1.6 1030
YSQ117-8 80 380 159 89.5 0.84 730 1.6 1100
YSQ125-8 95 380 180 90.5 0.85 730 1.6 1100
YSQ126-8 110 380 207 90.5 0.85 730 1.6 1180
YSQ127-8 130 380 245 91 0.85 730 1.6 1300
YSQ128-8 155 380 292 91.5 0.85 730 1.6 1335
YSQ136-8 180 380 335 92 0.85 736 1.6 1610
YSQ137-8 210
