Description

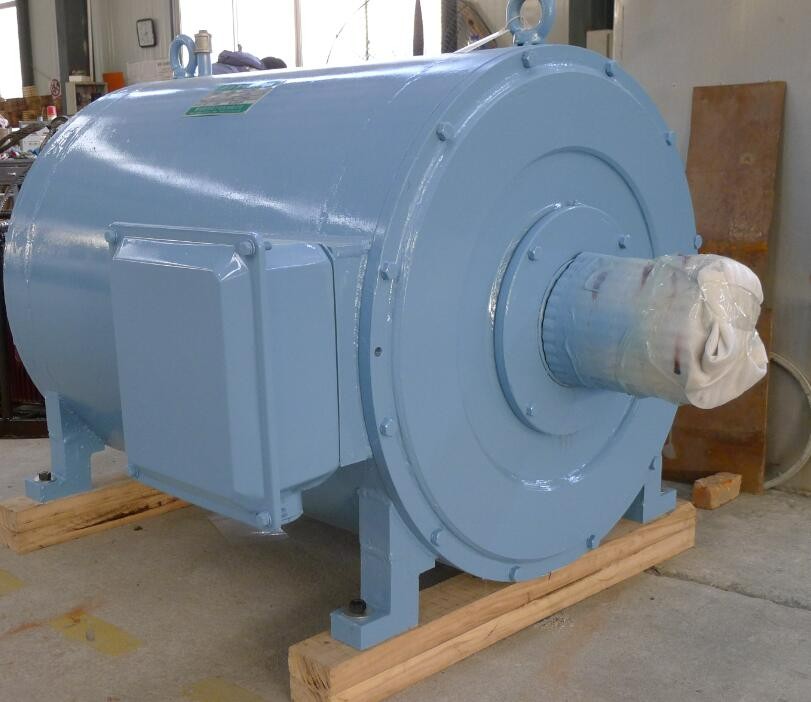

1500kw90rpm400V60Hz PGM
Technical Parameters
No. Parameter Units Data
1 Rated output power KW 1500
2 Rated speed RPM 90
3 Rated output voltage VAC 400
4 Rated current A 2180
5 Rated frequency HZ 60
6 Poles 80
7 Efficiency at rated speed ＞96.3%
8 Winding type Y
9 Insulation H class
10 Rated torque Nm 165800
11 Start torque Nm ＜3300
12 Temperature rise °C 90
13 Bearing SKF
14 Weight Kg 9000
Technical Parameters
No. Parameter Units Data
1 Rated output power KW 1500
2 Rated speed RPM 90
3 Rated output voltage VAC 400
4 Rated current A 2180
5 Rated frequency HZ 60
6 Poles 80
7 Efficiency at rated speed ＞96.3%
8 Winding type Y
9 Insulation H class
10 Rated torque Nm 165800
11 Start torque Nm ＜3300
12 Temperature rise °C 90
13 Bearing SKF
14 Weight Kg 9000
