60Hz Small Hydro Turbine Generator 1kw-1000kw

Inquiry Send Email

Description

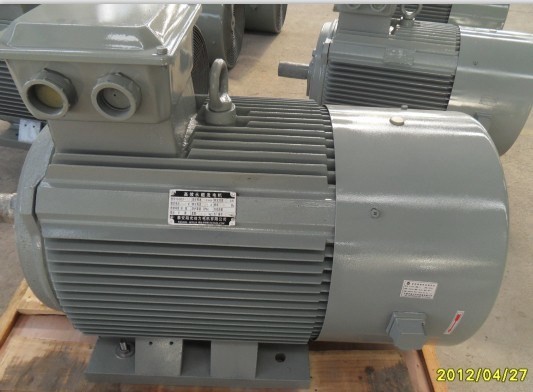

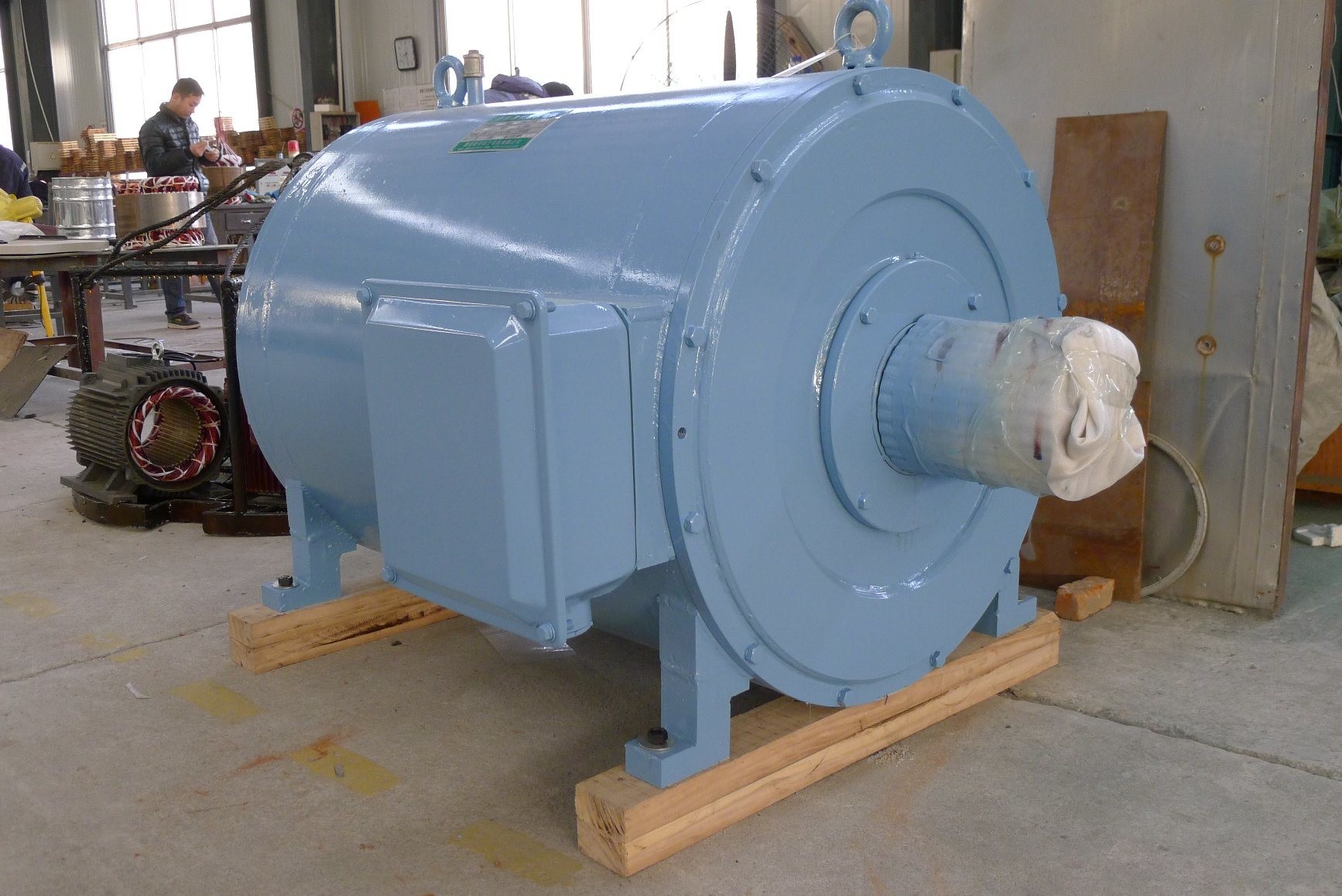

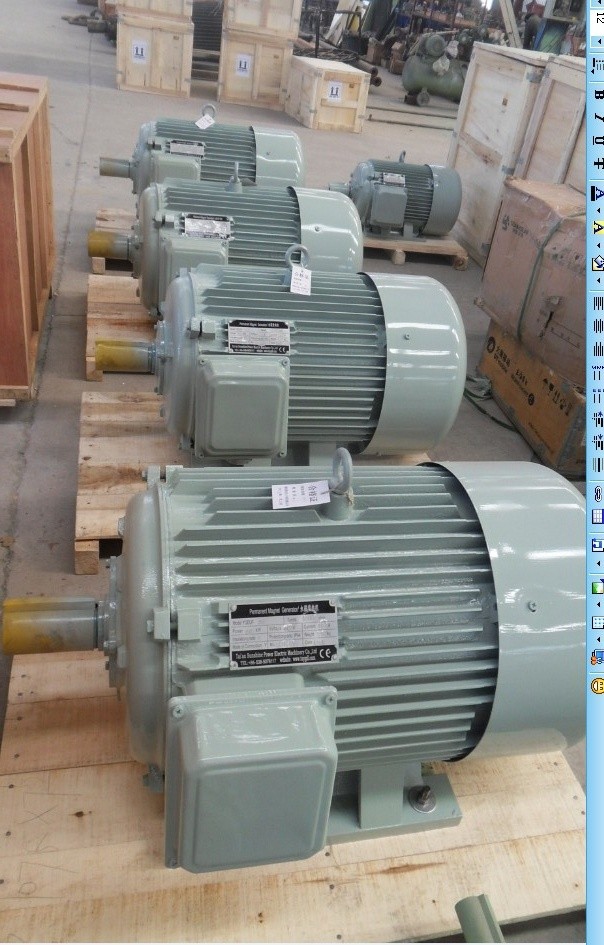

Low speed permanent magnet water generator, leaving out speed-up machine, generating 50 Hz Power at low speed.60hz output also available
High efficient PM rotor, compact structure. No carbon brushes, do not need excitation,no spark, no excitation winding,high rotor intensity,no field control box, sample construction, high performance.
Protection class: IP44,avoid water, mud, dusty getting into the motor, long life, especially suitable for outdoor requirements.
No excitation control-box,sample construct,high performance.
Motors is running efficiently throughout the entire speed range, saving energy.
Using embedded rare-earth magnetic steel, especially suitable for turbulence, impact dynamic and reverse running.
The motor adopts wind-cooling or water-cooling, low temperature, adopts high speed oil-retaining bearing, maintenance-free, high reliability, long life-span .
You can change the motor voltage, speed, Power and other parameters, the out size of the motor can be also changed. You can use splined shaft, dual shaft, flange and other output styles.

Power AC voltage speed poles frequency Rated torque current efficiency weight
2.5kw 220V 327.6rpm 22 60Hz 73Nm 6.7A 93.8% 72kg

Power AC voltage speed poles frequency Rated torque current efficiency weight
5 kw 220V 327.6rpm 22 60Hz 146Nm 13.A 93.8% 122kg
Power AC voltage speed poles frequency Rated torque current efficiency weight
8 kw 220V 300rpm 24 60Hz 255Nm 21A 93.8% 186kg
16 kw 220V 600rpm 12 60Hz 255Nm 42A 93.8% 186kg
Power AC voltage speed poles frequency Rated torque current efficiency weight
12 kw 220V 300rpm 24 60Hz 382Nm 32A 93.8% 260kg
24 kw 220V 600rpm 12 60Hz 382Nm 64A 93.8% 260kg
















Power AC voltage speed poles frequency Rated torque current efficiency weight
15 kw 220V 257rpm 28 60Hz 557Nm 39.5A 93.8% 320kg
30 kw 220V 514rpm 14 60Hz 557Nm 79A 93.8% 320kg

Power AC voltage speed poles frequency Rated torque current efficiency weight
20 kw 220V 225rpm 32 50Hz 1020Nm 52.4A 93.8% 420kg
40 kw 220V 375rpm 16 50Hz 1020Nm 104.9A 93.8% 420kg
Power AC voltage speed poles frequency Rated torque current efficiency weight
30 kw 220V 225rpm 32 60Hz 1273Nm 78.7A 93.8% 720kg
60 kw 220V 450rpm 16 60Hz 1273Nm 157A 93.8% 720kg

Power AC voltage speed poles frequency Rated torque current efficiency weight
35 kw 220V 150pm 48 60Hz 2228Nm 92A 93.8% 1260kg
70 kw 220V 300rpm 24 60Hz 2228Nm 184A 93.8% 1260kg
105 kw 220V 450rpm 16 60Hz 2228Nm 276A 93.8% 1260kg
Power AC voltage speed poles frequency Rated torque current efficiency weight
80 kw 220V 150pm 48 60Hz 5093Nm 209A 93.8% 1680kg
160 kw 220V 300rpm 24 60Hz 5093Nm 418A 93.8% 1680kg
200 kw 220V 450rpm 16 60Hz 4244Nm 524A 93.8% 1680kg
320 kw 220V 600rpm 12 60Hz 5093Nm 839A 93.8% 1680kg

Power AC voltage speed poles frequency Rated torque current efficiency weight
100 kw 220V 150pm 48 60Hz 6366Nm 262A 93.8% 2800kg
200 kw 220V 300rpm 24 60Hz 6366Nm 524A 93.8% 2800kg
300 kw 220V 450rpm 16 60Hz 6366Nm 786A 93.8% 2800kg
400 kw 220V 600rpm 12 60Hz 6366Nm 1128A 93.8% 2800kg



Power AC voltage speed poles frequency Rated torque current efficiency weight
150 kw 220V 150pm 48 60Hz 9550Nm 393A 93.8% 3900kg
300 kw 220V 300rpm 24 60Hz 9550Nm 788A 93.8% 3900kg
450 kw 220V 450rpm 16 60Hz 9550Nm 1180A 93.8% 3900kg
600 kw 220V 600rpm 12 60Hz 9550Nm 1574A 93.8% 3900kg

Power AC voltage speed poles frequency Rated torque current efficiency weight
200 kw 220V 150rpm 42 60Hz 12733Nm 524A 93.8% 5200kg
600 kw 220V 450rpm 14 60Hz 12733Nm 1574A 93.8% 5200kg
