Description

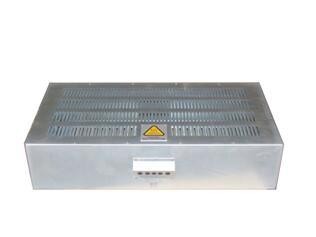

Pure sine wave on grid inverter, CE certifcate,can use for wind turbine system
model
XD300-800
power(W)
300--800
Most power
>or >=the power's 20%
i/p voltage(V)
48
Low and max voltage
From12V to 450V
MPPT efficiency
98%
Most i/p current ( A )
6.8
o/p power ( W )
300--800
o/p current ( A )
8
Allow mails o/p ( V )
110,220,230,240 (±10%)
Allow mails frequency ( Hz )
50&60 ( ±0.5 )
THD
<3%
Power factor
0.97
Mostly efficiency
94%
Europe efficiency
92.4%
size ( mm )
510*420*170
Communication ports
RS232
Night power expenditure ( W )
<50
Defend grade
IP20
Operational environment temperature ()
-10- +40
Operational environment humidity
15-95%
electromagnetic compatibility
EN50081,part1 EN50082,part1
Grid disturbance
EN61000-3-2
Grid text
DIN VDE 126
Protections
Protection against short-circuit,reverse Polarity protection,lone-island domino effect protection,protection against over-load,grounding protection
| model | XD300-800 |
| power(W) | 300--800 |
| Most power | >or >=the power's 20% |
| i/p voltage(V) | 48 |
| Low and max voltage | From12V to 450V |
| MPPT efficiency | 98% |
| Most i/p current ( A ) | 6.8 |
| o/p power ( W ) | 300--800 |
| o/p current ( A ) | 8 |
| Allow mails o/p ( V ) | 110,220,230,240 (±10%) |
| Allow mails frequency ( Hz ) | 50&60 ( ±0.5 ) |
| THD | <3% |
| Power factor | 0.97 |
| Mostly efficiency | 94% |
| Europe efficiency | 92.4% |
| size ( mm ) | 510*420*170 |
| Communication ports | RS232 |
| Night power expenditure ( W ) | <50 |
| Defend grade | IP20 |
| Operational environment temperature () | -10- +40 |
| Operational environment humidity | 15-95% |
| electromagnetic compatibility | EN50081,part1 EN50082,part1 |
| Grid disturbance | EN61000-3-2 |
| Grid text | DIN VDE 126 |
| Protections | Protection against short-circuit,reverse Polarity protection,lone-island domino effect protection,protection against over-load,grounding protection |

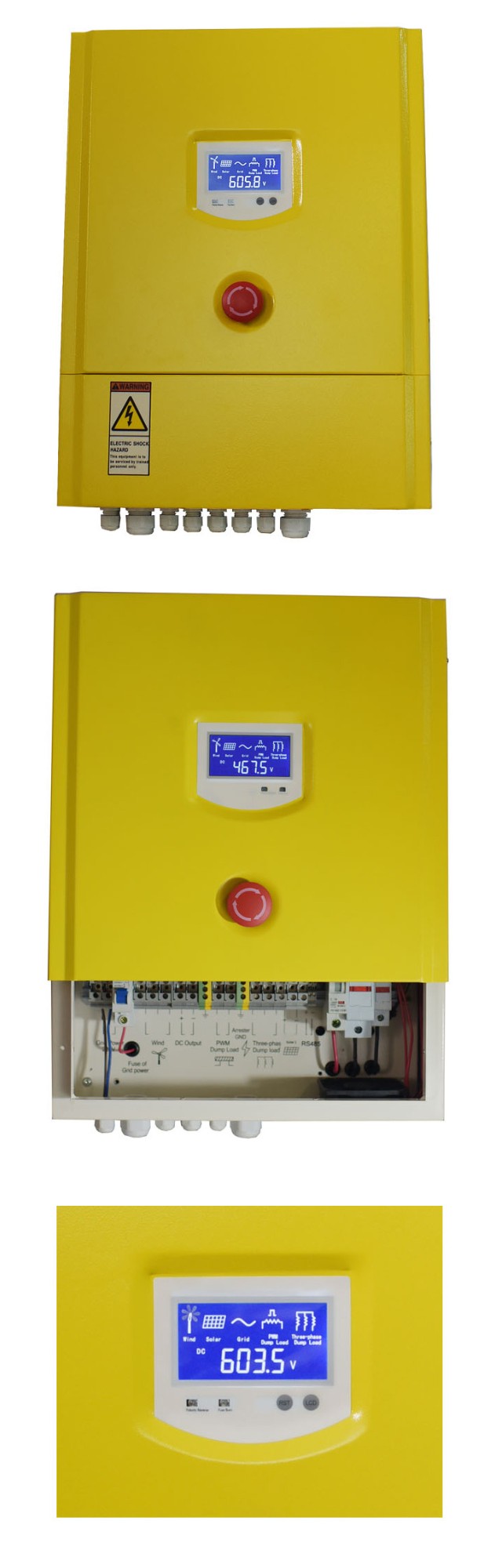

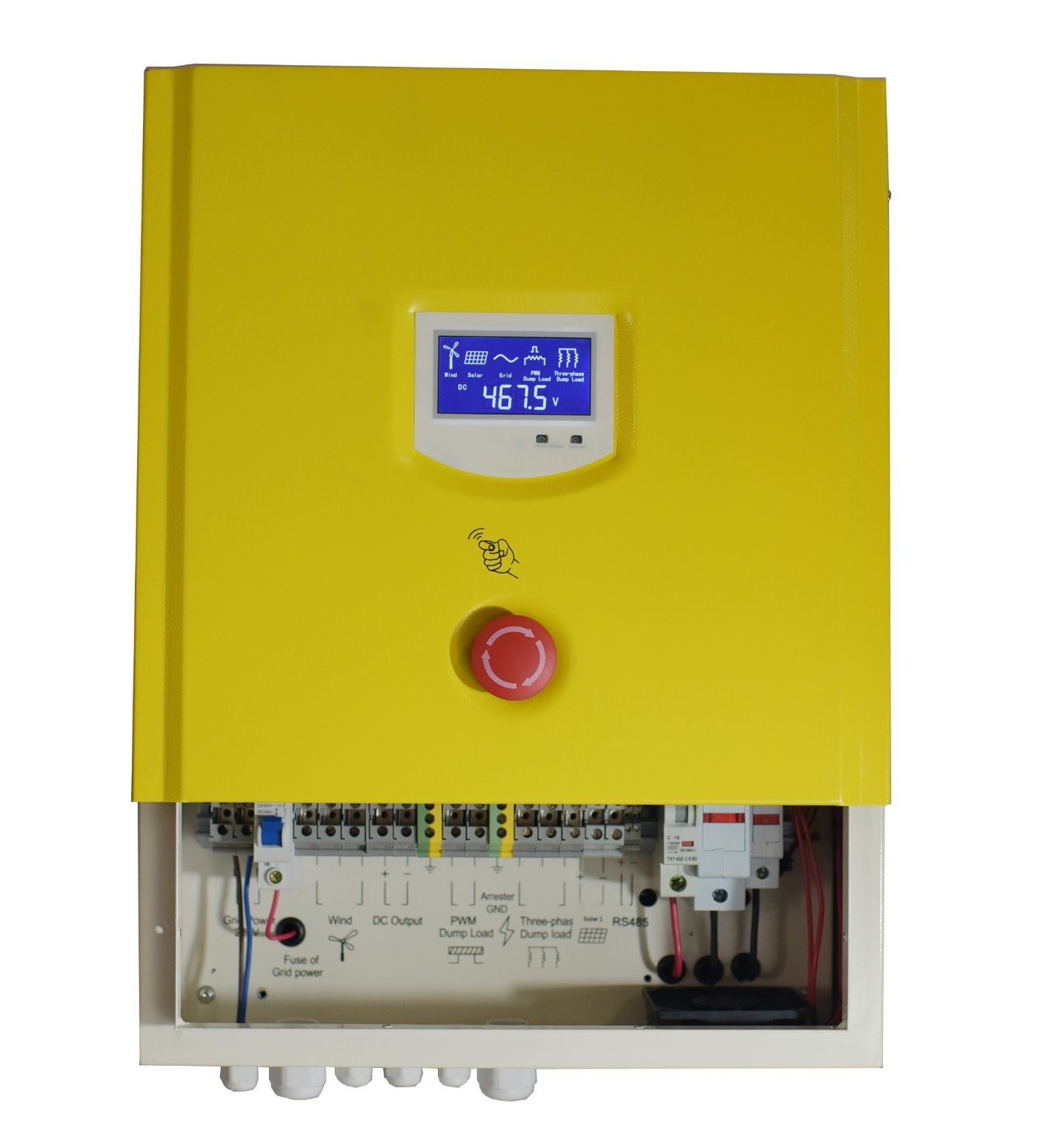

-Controller-1kw-3kw.562.1.jpg "on Grid Wind Turbine (wind solar hybrid) Controller 1kw-3kw")
