Description
We also offer various kind of other small hydro turbine generator
Axial flow tubine generator
Francis Turbine Generator
Pelton Turbine Generator
Inclined-jet water turbine generator
Cross flow water turbine generator
Tubular water turbine generator
Impulse type water generator
Permanent Magnet Generator
2. Main specifications and technical parameters
2.1 Model type: Volute axial type
2.2 Power: 300 watts 100 kilowatts
2.3 Voltage: 110V, 220V, 380V
2.4 Frequency: 50Hz 60Hz
2.5 Water head: 1.0 meter 10 meter
2.6 Flow: 0.017m³ /s— 1.66m³ /s
2.7 Rotating speed: Four poles 1, 500 rpm; Six poles 1, 000 rpm; Eight poles 750 rpm
Axial flow tubine generator
Francis Turbine Generator
Pelton Turbine Generator
Inclined-jet water turbine generator
Cross flow water turbine generator
Tubular water turbine generator
Impulse type water generator
Permanent Magnet Generator
2. Main specifications and technical parameters
2.1 Model type: Volute axial type
2.2 Power: 300 watts 100 kilowatts
2.3 Voltage: 110V, 220V, 380V
2.4 Frequency: 50Hz 60Hz
2.5 Water head: 1.0 meter 10 meter
2.6 Flow: 0.017m³ /s— 1.66m³ /s
2.7 Rotating speed: Four poles 1, 500 rpm; Six poles 1, 000 rpm; Eight poles 750 rpm
| Name | Power (KW) | Water head (M) | Flow (m³/S) | Rotating speed (R/M) | Voltage(V) | Frequency (Hz) | Transmission |

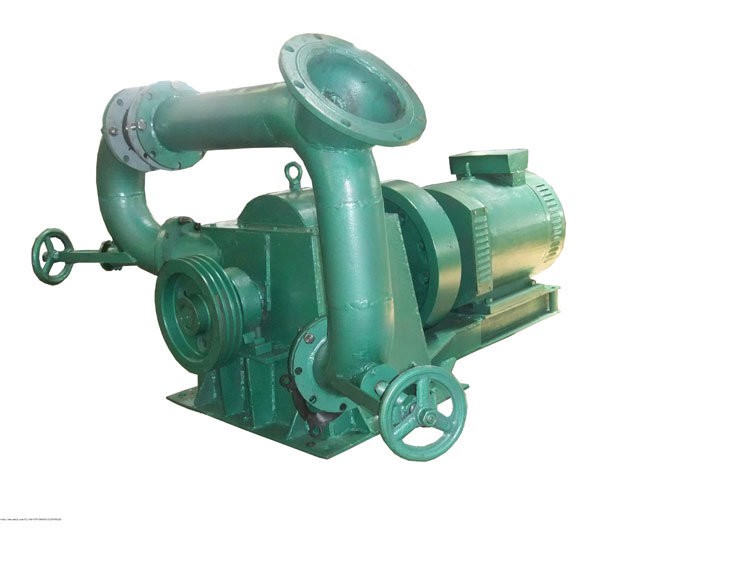

| Coil pipe four nozzle incline jet water turbine generator | 5.0 | 20-50 | 0.044-0.018 | 1000/1500 | 220/380 | 50 | Direct |
| 8.0 | 22-50 | 0.064-0.028 | 1000/1500 | 220/380 | 50 | Direct | |
| 10 | 20-50 | 0.085-0.034 | 1000/1500 | 380 | 50 | Direct | |
| 12 | 20-50 | 0.099-0.04 | 1000/1500 | 380 | 50 | Direct | |
| 15 | 20-50 | 0.120-0.044 | 1000/1500 | 380 | 50 | Direct |
