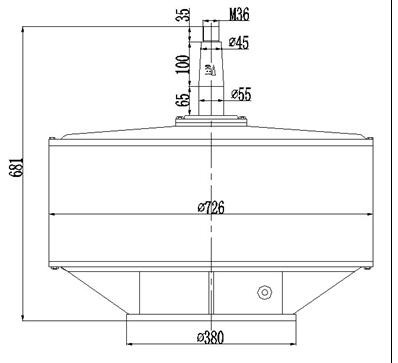

Description
generator type: synchronous permanent magnet 3 phase AC
• magnetic steel material:38SH NdFeB • class of insulation:B
• housing material: cast iron • shaft material: 45# steel
• rated rotate speed:50 RPM
• rated voltage: 48VAC/96VAC/120VAC/220VAC/240VAC/360VAC/380VAC
• grade of protection: IP54 • weight:400kg(cast iron)
• start up torque: 37.2Nm
• rated torque at rated speed: 2366Nm
|
10KW 380V Vertical Generator Design Data |
|||||
|
rpm |
10 |
20 |
30 |
40 |
50 |
|
no-load voltage（V） |
99.5 |
198 |
298 |
397 |
497 |
|
load voltage(V) |
82 |
163 |
240 |
313 |
381 |
|
load current(A) |
3.3 |
6.52 |
9.61 |
12.5 |
15.3 |
|
output power(W) |
454 |
1800 |
3949 |
6740 |
10010 |
|
torque(Nm) |
580 |
1097 |
1575 |
2000 |
2366 |
Remark: The design load electric resistance of above data is 14.5 Ω.
